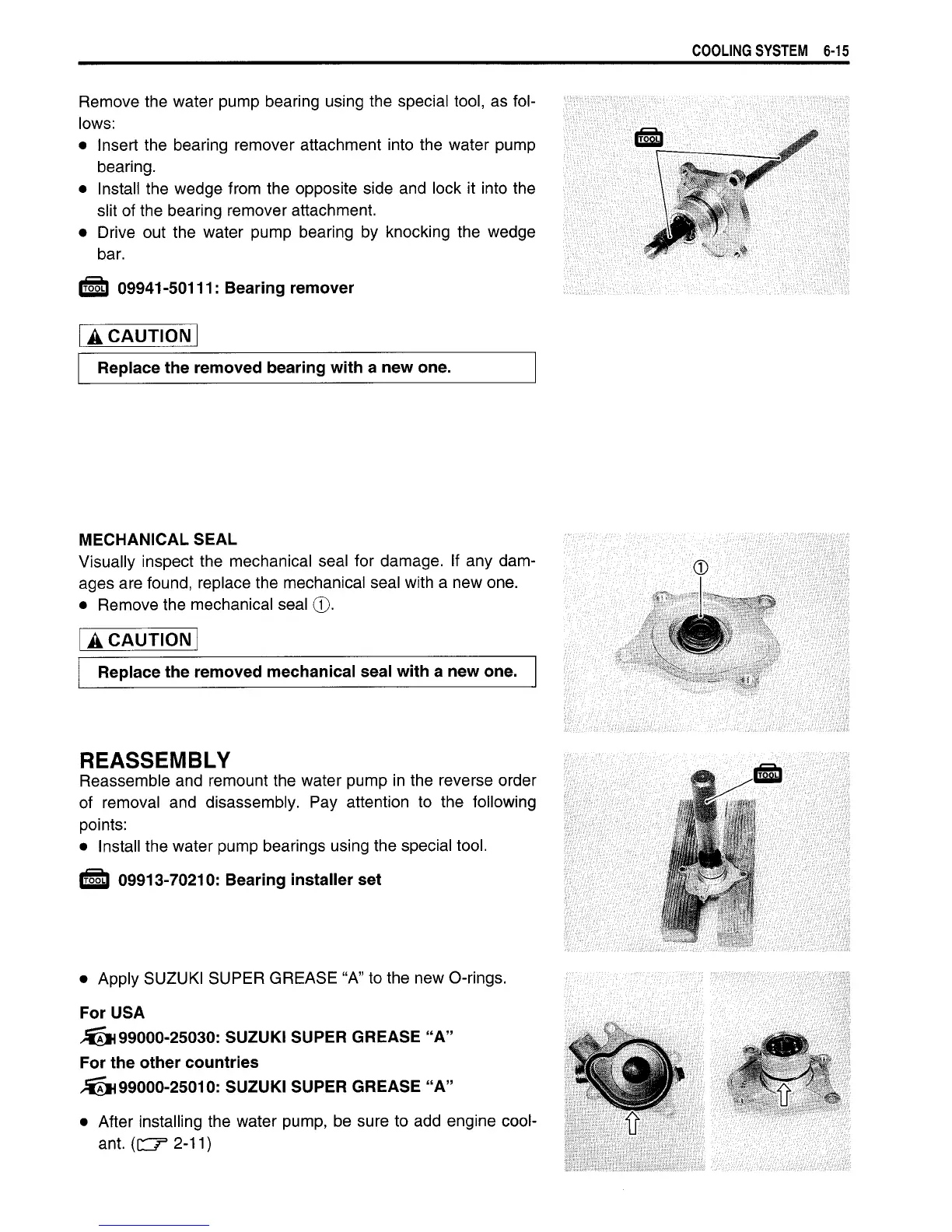

Remove the water pump bearing using the special tool, as fol-
lows:
• Insert the bearing remover attachment into the water pump
bearing.
• Install the wedge from the opposite side and lock it into the
slit of the bearing remover attachment.
• Drive out the water pump bearing by knocking the wedge
bar.
1T55LI 09941-50111: Bearing remover
A CAUTION
Replace the removed bearing with a new one.
MECHANICAL SEAL
Visually inspect the mechanical seal for damage. If any dam-
ages are found, replace the mechanical seal with a new one.
• Remove the mechanical seal ©.
A CAUTIOINT
Replace the removed mechanical seal with a new one.
REASSEMBLY
Reassemble and remount the water pump in the reverse order
of removal and disassembly. Pay attention to the following
points:
• Install the water pump bearings using the special tool.
irSSh 09913-70210: Bearing installer set
• Apply SUZUKI SUPER GREASE "A" to the new O-rings.
For USA
99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
• After installing the water pump, be sure to add engine cool-
ant. (ITT
3
2-11)
