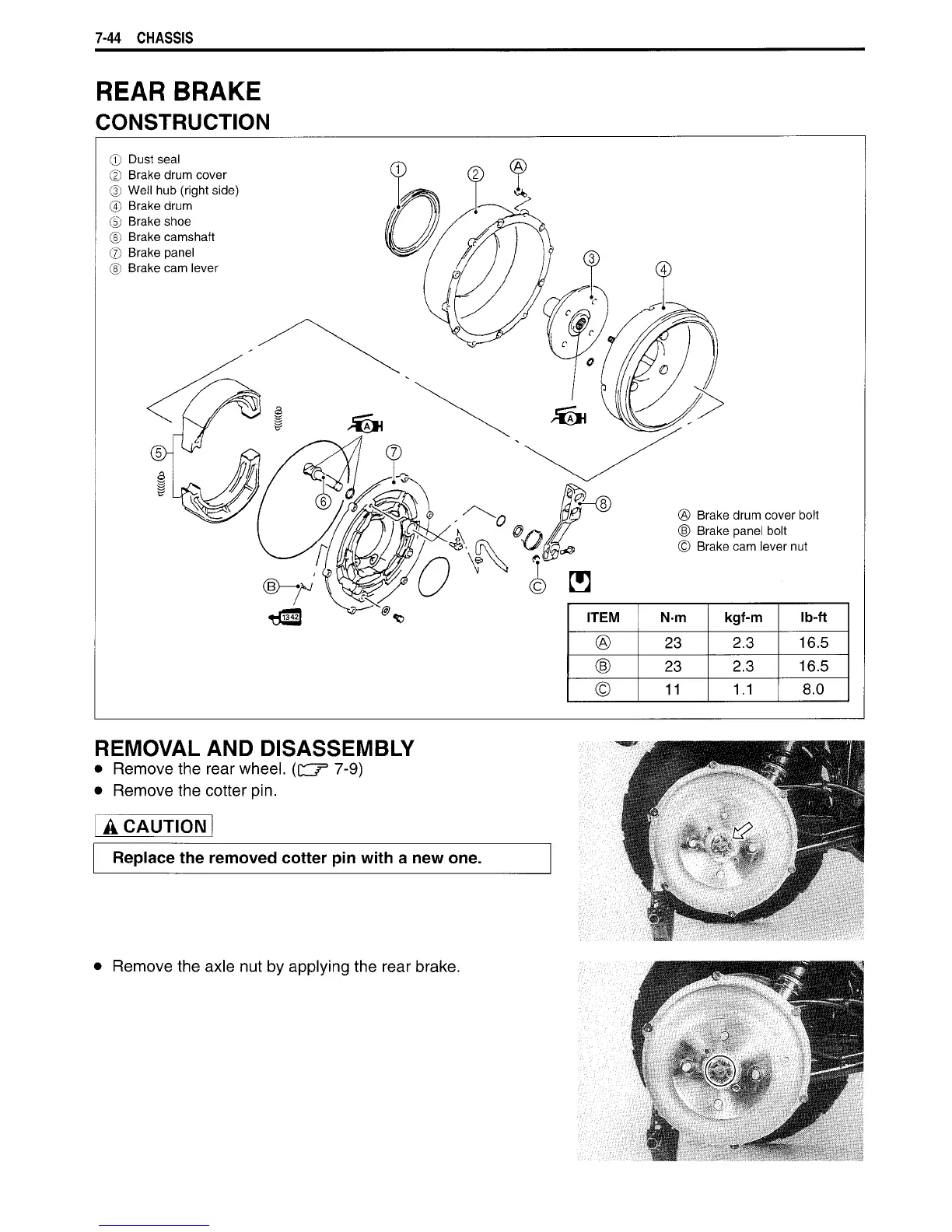

7-44 CHASSIS
REAR BRAKE
CONSTRUCTION
© Dust seal
© Brake drum cover
© Well hub (right side)
© Brake drum
© Brake shoe
© Brake camshaft
© Brake panel
© Brake cam lever
Brake drum cover bolt
Brake panel bolt
Brake cam lever nut
ITEM Nm kgf-m Ib-ft
®
23 2.3 16.5
®
23 2.3 16.5
©
11 1.1 8.0
REMOVAL AND DISASSEMBLY
• Remove the rear wheel. (CZT 7-9)
• Remove the cotter pin.
A CAUTION
Replace the removed cotter pin with a new one.
• Remove the axle nut by applying the rear brake.
