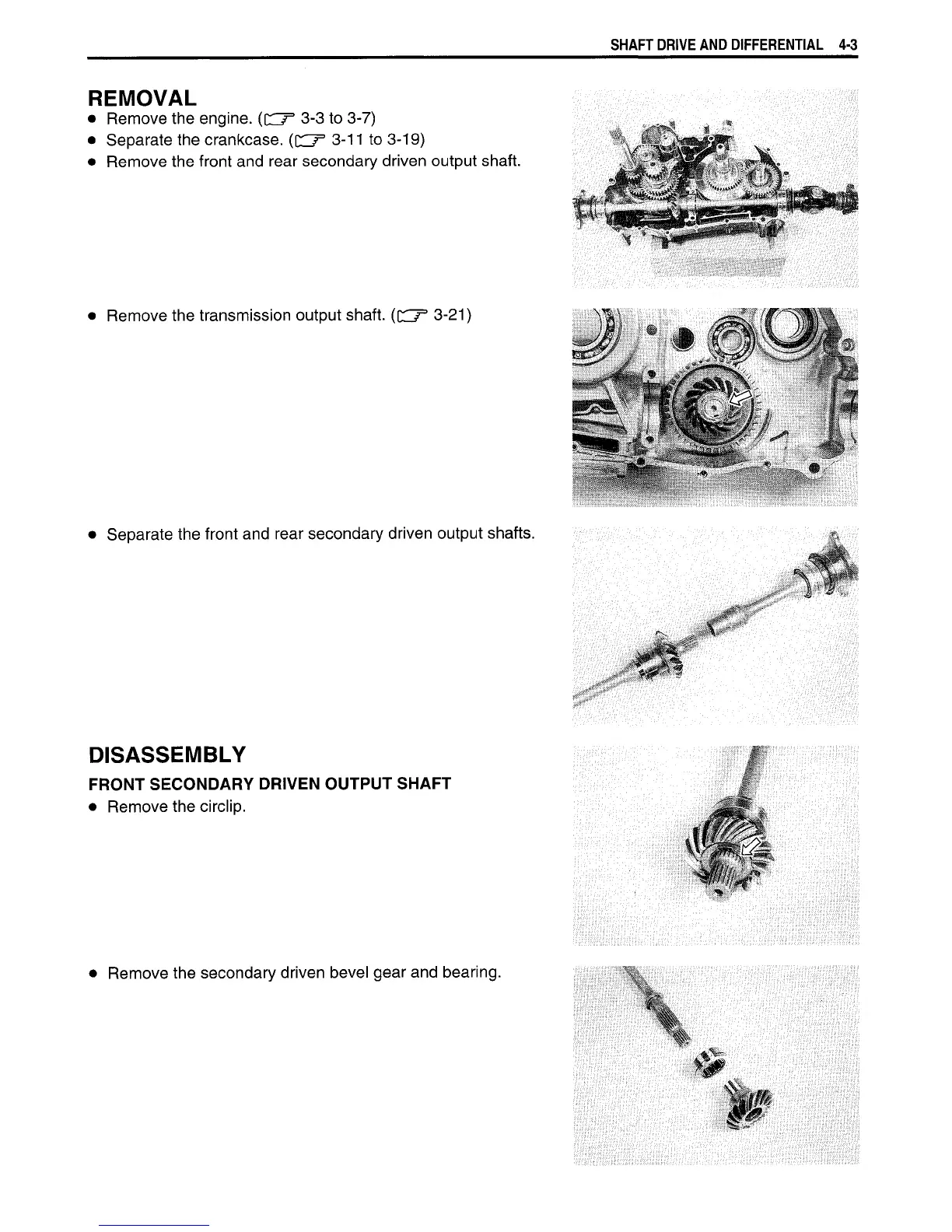

SHAFT DRIVE AND DIFFERENTIAL 4-3
REMOVAL
• Remove the engine. (Cr
3
3-3 to 3-7)
• Separate the crankcase. (c^
3
3-11 to 3-19)
• Remove the front and rear secondary driven output shaft.
• Remove the transmission output shaft. 3-21)
• Separate the front and rear secondary driven output shafts.
DISASSEMBLY
FRONT SECONDARY DRIVEN OUTPUT SHAFT
• Remove the circlip.
• Remove the secondary driven bevel gear and bearing.
