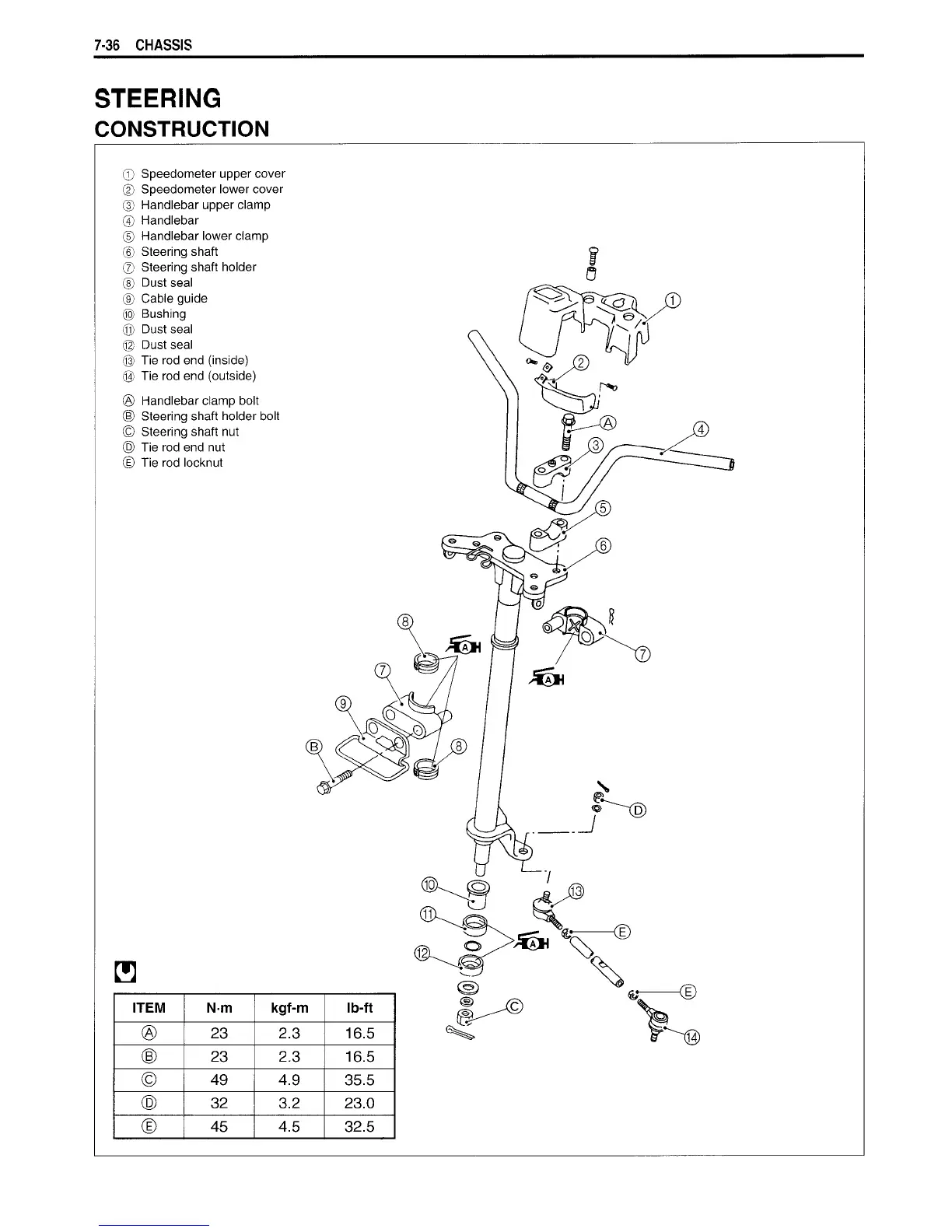

7-36 CHASSIS
STEERING
CONSTRUCTION
© Speedometer upper cover
© Speedometer lower cover
© Handlebar upper clamp
® Handlebar
© Handlebar lower clamp
© Steering shaft
® Steering shaft holder
© Dust seal
® Cable guide
Bushing
© Dust seal
Dust seal
Tie rod end (inside)
@ Tie rod end (outside)
® Handlebar clamp bolt
® Steering shaft holder bolt
© Steering shaft nut
© Tie rod end nut
© Tie rod locknut
H
ITEM Nm kgf-m Ib-ft
®
23 2.3 16.5
®
23 2.3 16.5
©
49 4.9 35.5
®
32 3.2 23.0
45 4.5 32.5
