9-20 SERVICING INFORMATION

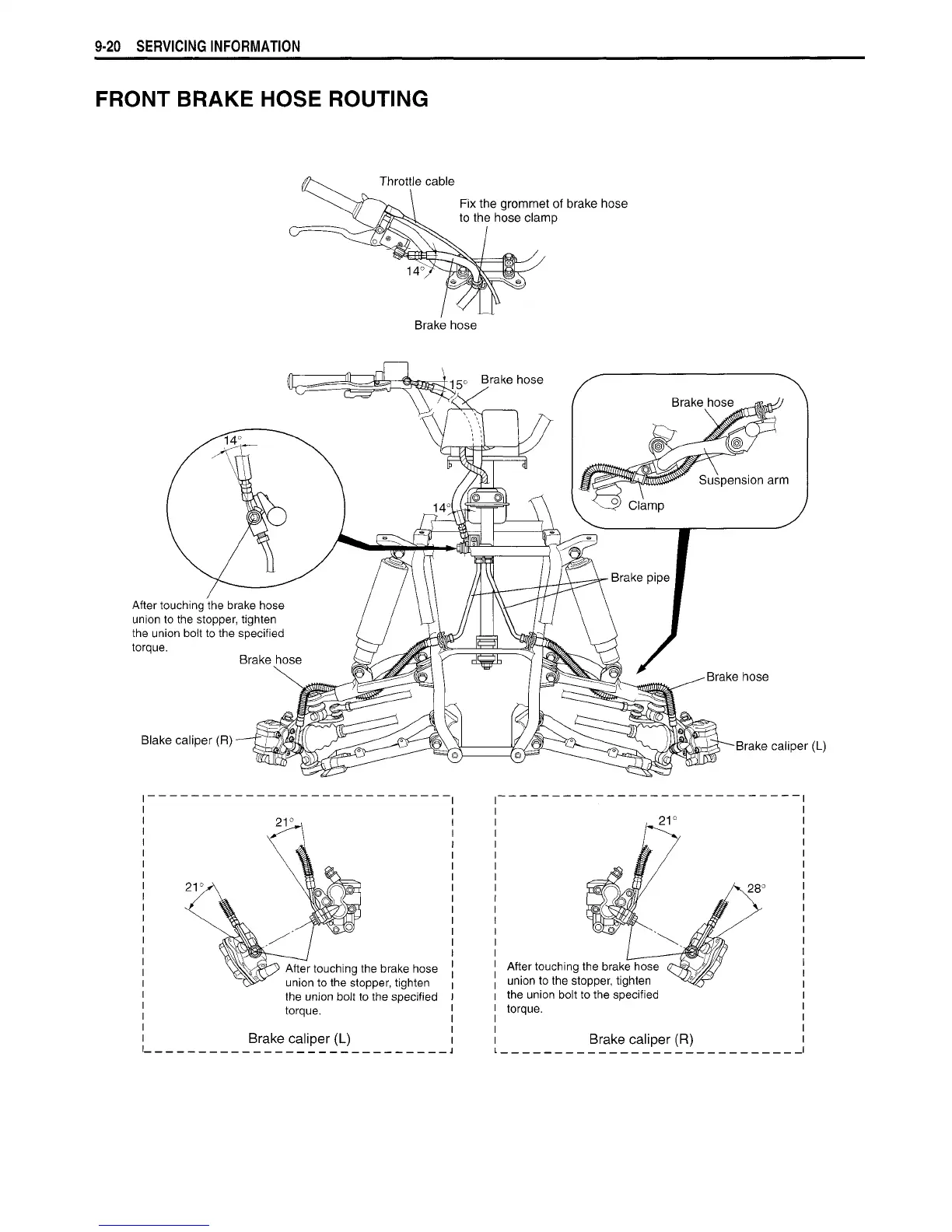

FRONT BRAKE HOSE ROUTING
Throttle cable
Fix the grommet of brake hose
to the hose clamp
Brake hose
After touching the brake hose
union to the stopper, tighten
the union bolt to the specified
torque.
Brake hose
Blake caliper (R)
Brake caliper (L)
After touching the brake hose
union to the stopper, tighten
the union bolt to the specified
torque.
Brake caliper (L)
After touching the brake hose
union to the stopper, tighten
the union bolt to the specified
torque.
Brake caliper (R)
