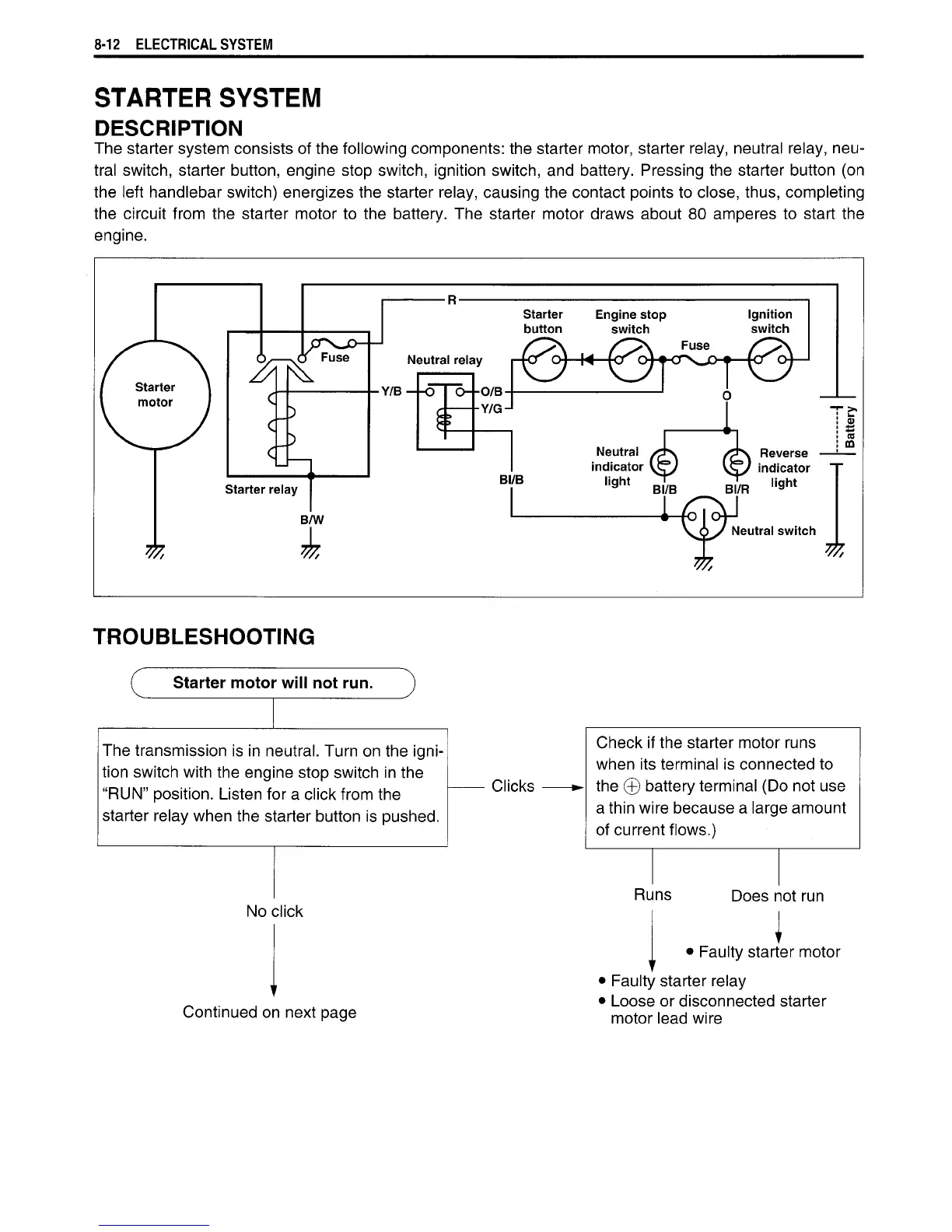

8-12
ELECTRICAL
SYSTEM
STARTER
SYSTEM
DESCRIPTION
The starter system consists
of
the following components: the starter motor, starter relay, neutral relay, neu-
tral
switch, starter button, engine stop switch, ignition switch,
and
battery. Pressing the starter button
(on
the
left
handlebar switch) energizes the starter relay, causing the contact points to close, thus, completing
the
circuit from
the
starter motor
to the
battery.
The
starter motor draws about
80
amperes
to
start
the
engine.
R
Starter
Engine stop
Ignition
button
switch switch
TROUBLESHOOTING
Starter
motor will not run.
The transmission
is
in neutral. Turn
on
the igni-
tion
switch with the engine stop switch in the
"RUN" position. Listen for
a
click
from the
starter
relay when the starter button
is
pushed.
Clicks
No
click
Continued
on
next
page
Check if the starter motor runs
when its terminal is connected
to
the
0
battery terminal
(Do
not use
a thin wire because
a
large amount
of current flows.)
Runs Does
not run
•
Faulty starter motor
Faulty starter relay
Loose
or
disconnected starter
motor lead wire
To Next Page
