3-40 ENGINE

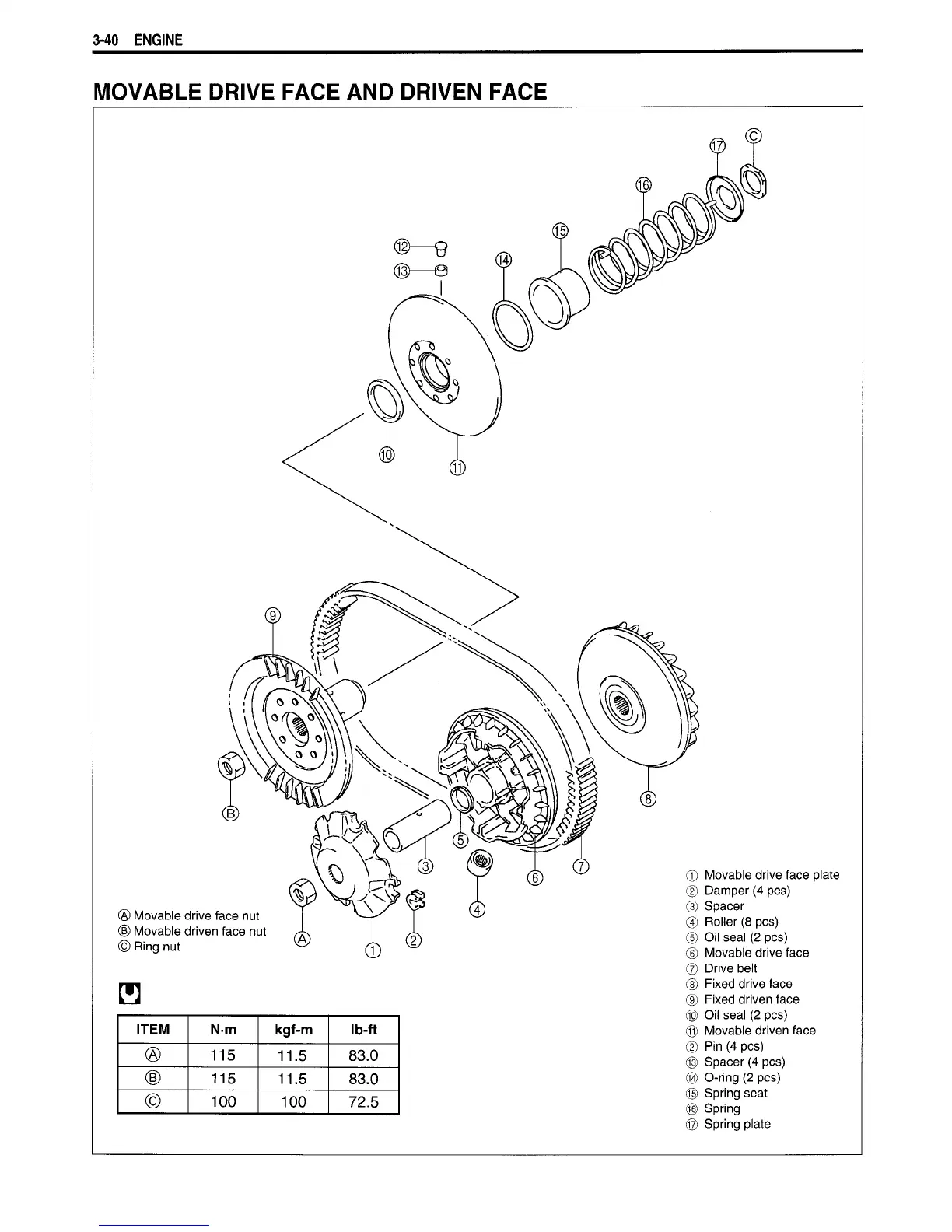

MOVABLE DRIVE FACE AND DRIVEN FACE
) Movable drive face nut
) Movable driven face nut
) Ring nut
H
ITEM Nm
kgf-m Ib-ft
®
115
11.5
83.0
®
115
11.5
83.0
©
100
100 72.5
© Movable drive face plate
© Damper (4 pes)
Spacer
© Roller (8 pes)
Oil seal (2 pes)
© Movable drive face
© Drive belt
© Fixed drive face
® Fixed driven face
® Oil seal (2 pes)
® Movable driven face
© Pin (4 pes)
© Spacer (4 pes)
® O-ring (2 pes)
© Spring seat
© Spring
© Spring plate
