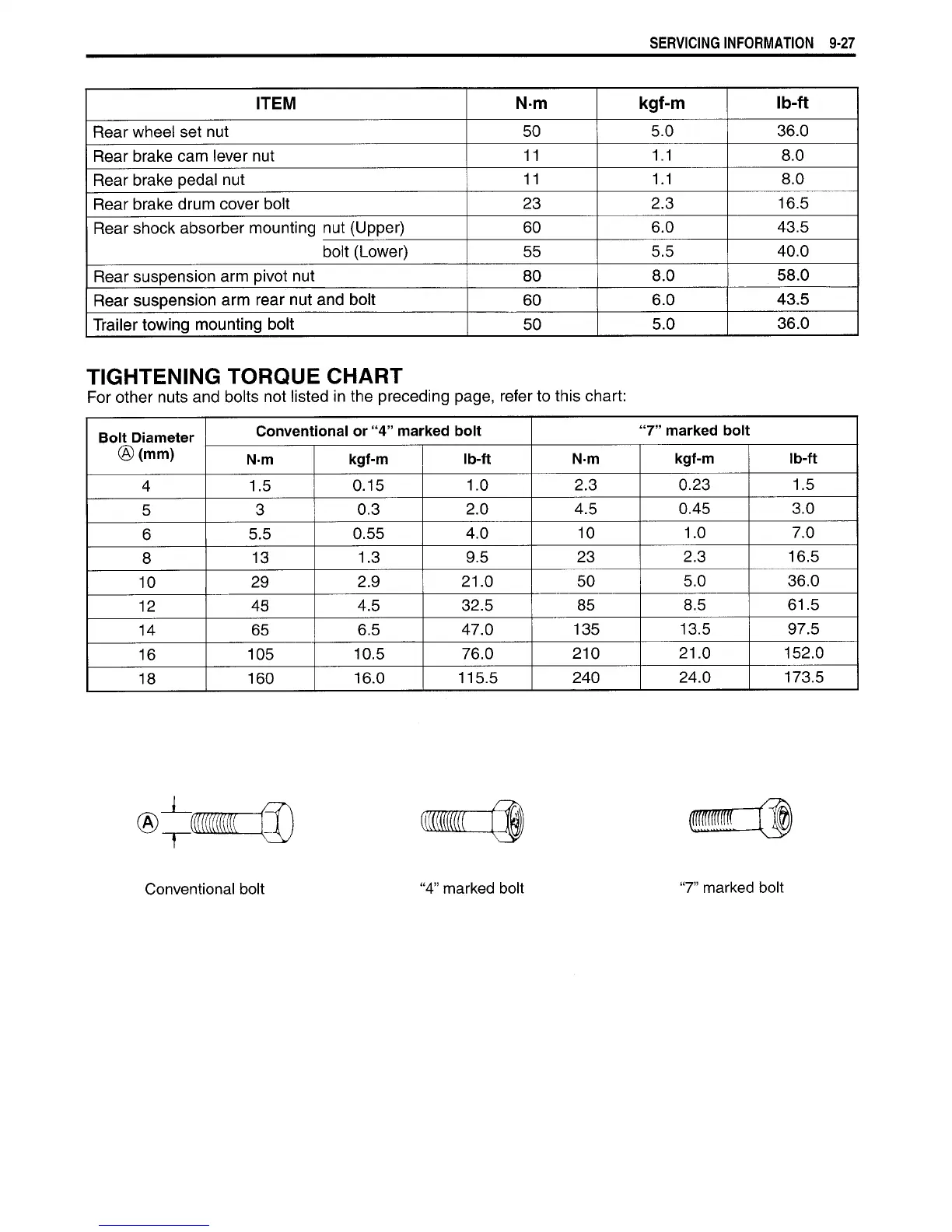

SERVICING INFORMATION 9-27
ITEM
N-m
kgf-m
Ib-ft
Rear wheel set nut
50 5.0 36.0
Rear brake cam lever nut
11
1.1
8.0
Rear brake pedal nut
11 1.1 8.0
Rear brake drum cover bolt
23 2.3 16.5
Rear shock absorber mounting nut (Upper)
60 6.0 43.5
bolt (Lower)
55 5.5
40.0
Rear suspension arm pivot nut
80
8.0 58.0
Rear suspension arm rear nut and bolt
60
6.0
43.5
Trailer towing mounting bolt 50
5.0
36.0
TIGHTENING TORQUE CHART
For other nuts and bolts not listed in the preceding page, refer to this chart:
Bolt Diameter
® (mm)
Conventional or "4" marked bolt
"7" marked bolt
Bolt Diameter
® (mm)
N-m kgf-m Ib-ft
N-m
kgf-m Ib-ft
4 1.5
0.15
1.0 2.3 0.23 1.5
5
3
0.3 2.0 4.5 0.45 3.0
6
5.5
0.55 4.0 10 1.0 7.0
8
13
1.3
9.5 23 2.3 16.5
10
29
2.9 21.0 50 5.0 36.0
12 45
4.5
32.5 85 8.5 61.5
14 65
6.5 47.0
135 13.5 97.5
16
105
10.5
76.0 210 21.0 152.0
18
160
16.0
115.5 240 24.0 173.5
