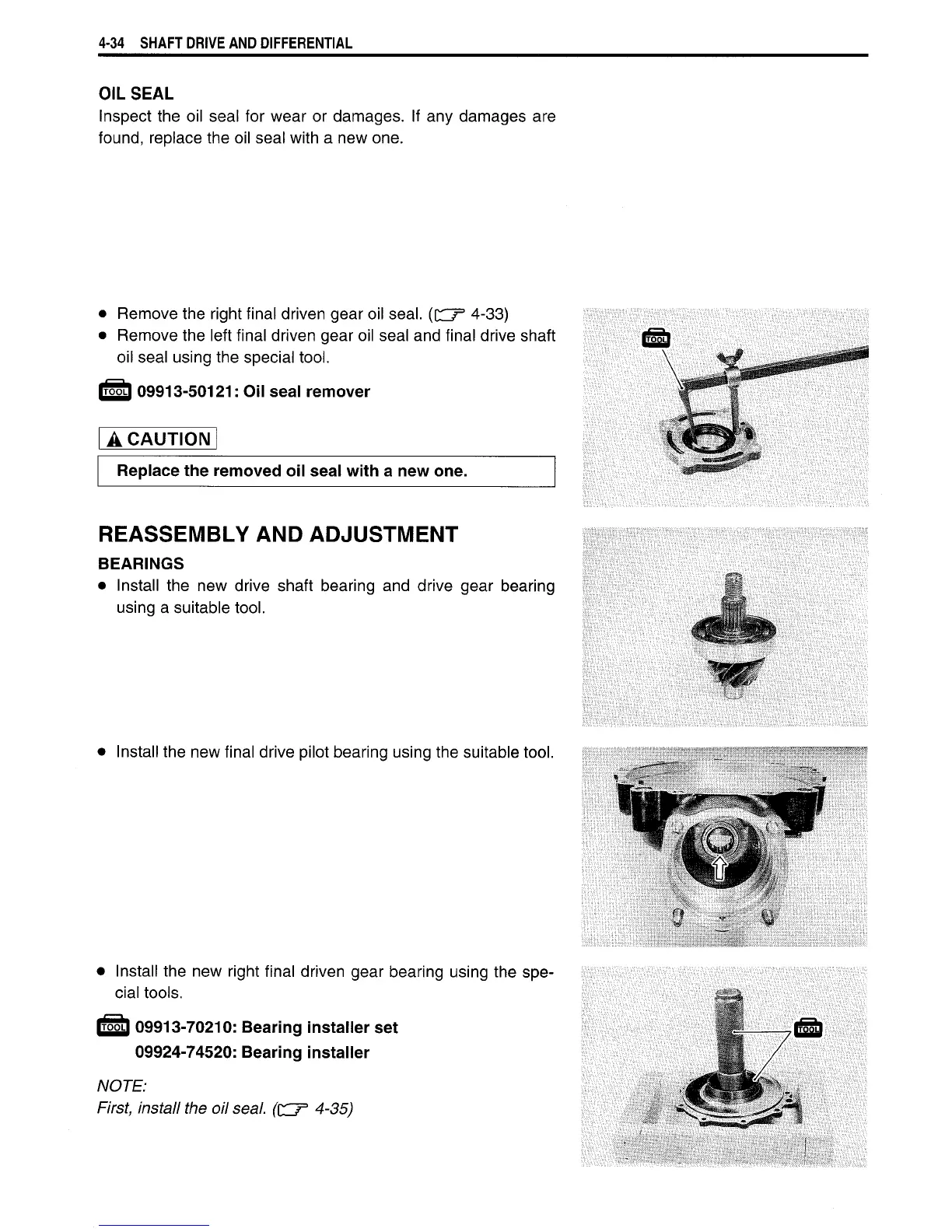

4-34 SHAFT DRIVE AND DIFFERENTIAL
OIL SEAL
Inspect the oil seal for wear or damages. If any damages are
found, replace the oil seal with a new one.
• Remove the right final driven gear oil seal. (CJr
3
4-33)
• Remove the left final driven gear oil seal and final drive shaft
oil seal using the special tool.
(TSSL) 09913-50121: Oil seal remover
ACAUTIOINT
Replace the removed oil seal with a new one.
REASSEMBLY AND ADJUSTMENT
BEARINGS
• Install the new drive shaft bearing and drive gear bearing
using a suitable tool.
• Install the new final drive pilot bearing using the suitable tool.
• Install the new right final driven gear bearing using the spe
cial tools.
(T^L) 09913-70210: Bearing installer set
09924-74520: Bearing installer
NOTE:
First, install the oil seal. (CZT 4-35)
