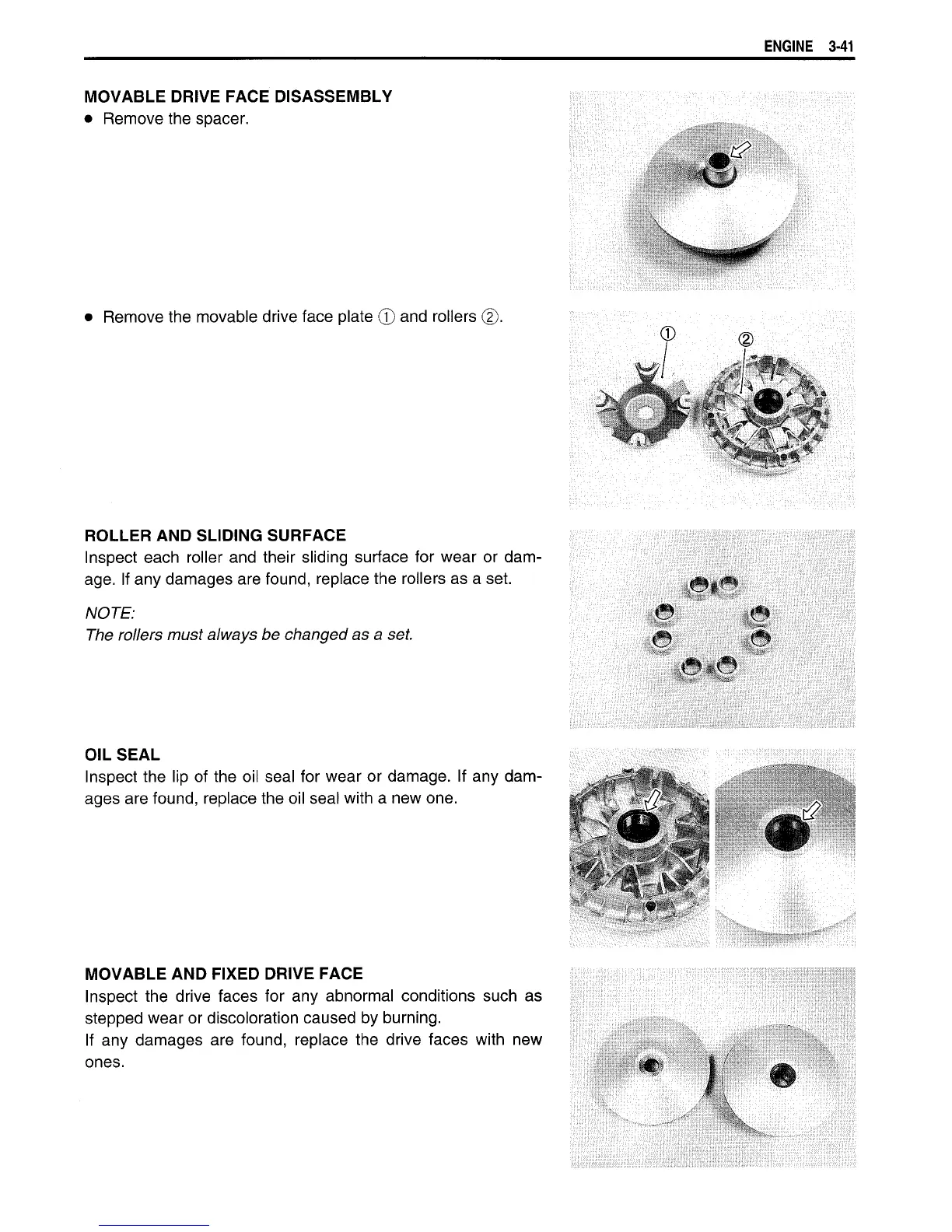

MOVABLE DRIVE FACE DISASSEMBLY
• Remove the spacer.
• Remove the movable drive face plate © and rollers ©.
ROLLER AND SLIDING SURFACE
Inspect each roller and their sliding surface for wear or dam-
age. If any damages are found, replace the rollers as a set.
NOTE:
The rollers must always be changed as a set
OIL SEAL
Inspect the lip of the oil seal for wear or damage. If any dam-
ages are found, replace the oil seal with a new one.
MOVABLE AND FIXED DRIVE FACE
Inspect the drive faces for any abnormal conditions such as
stepped wear or discoloration caused by burning.
If any damages are found, replace the drive faces with new
ones.
