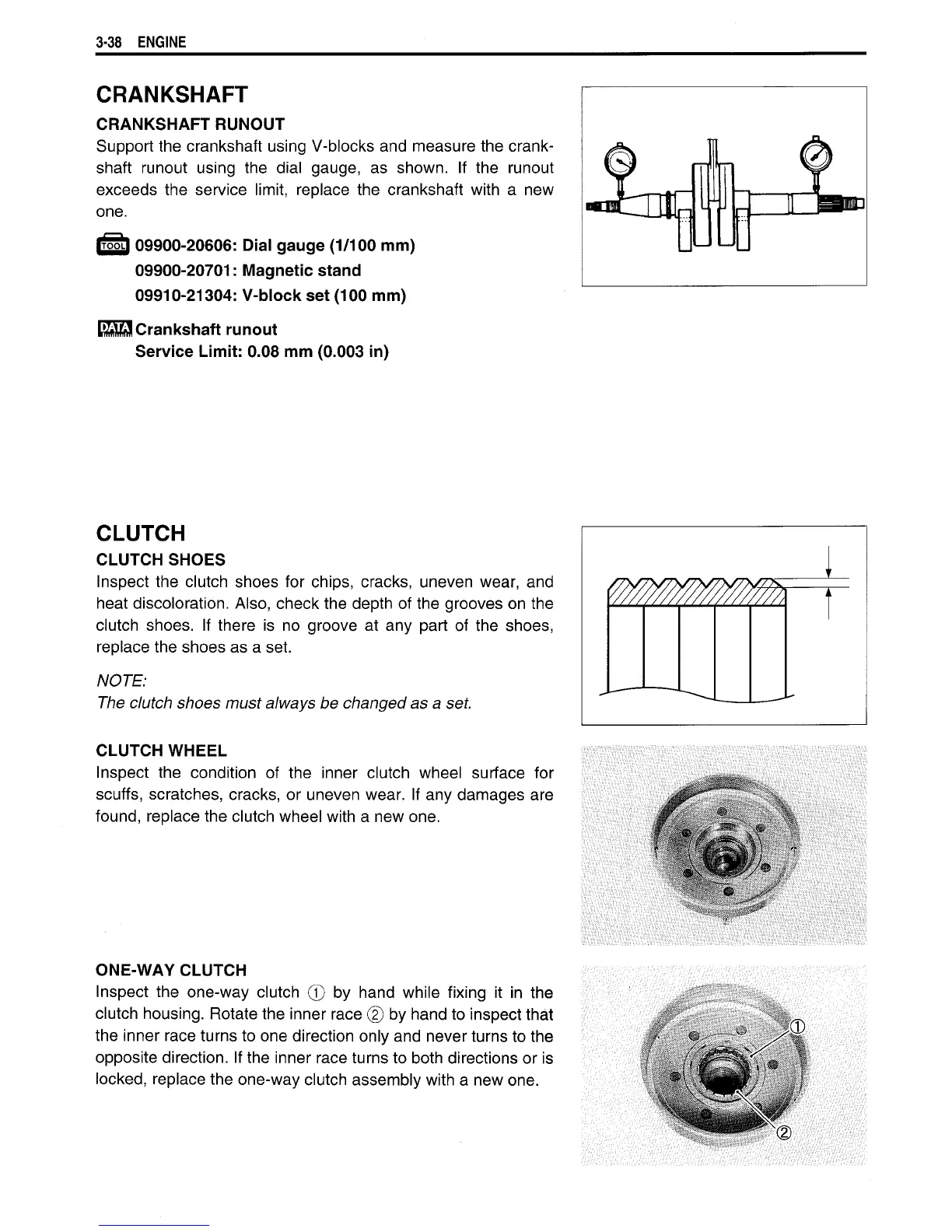

3-38 ENGINE

CRANKSHAFT

RUNOUT

Support the crankshaft using V-blocks and measure the crank-

shaft runout using

the

dial gauge,

shown.

If the

runout

exceeds

the

service

limit,

replace

the

crankshaft

with

a new

one.

IT55LI

09900-20606:

Dial gauge

(1/100

mm)

09900-20701:

Magnetic stand

09910-21304:

V-block set (100 mm)

ESSJ

Crankshaft runout

Service

Limit: 0.08 mm

(0.003

in)

CLUTCH

SHOES

Inspect the clutch shoes

for

chips, cracks, uneven wear,

and

heat discoloration. Also, check the depth

the grooves on the

clutch

shoes.

there

is no

groove

at any

part

the shoes,

replace the shoes as

set.

NOTE:

The

clutch

shoes

must always be changed as a set

CLUTCH

WHEEL

Inspect

the

condition

of the

inner clutch wheel surface

for

scuffs,

scratches, cracks,

uneven wear.

any damages are

found, replace the clutch wheel

with

new one.

ONE-WAY CLUTCH

Inspect

the

one-way clutch

hand while fixing

it in the

clutch

housing. Rotate the inner race

hand to inspect that

the

inner race turns to one direction only and never turns to the

opposite direction. If the inner race turns to both directions

locked,

replace the one-way clutch assembly

with

new one.
