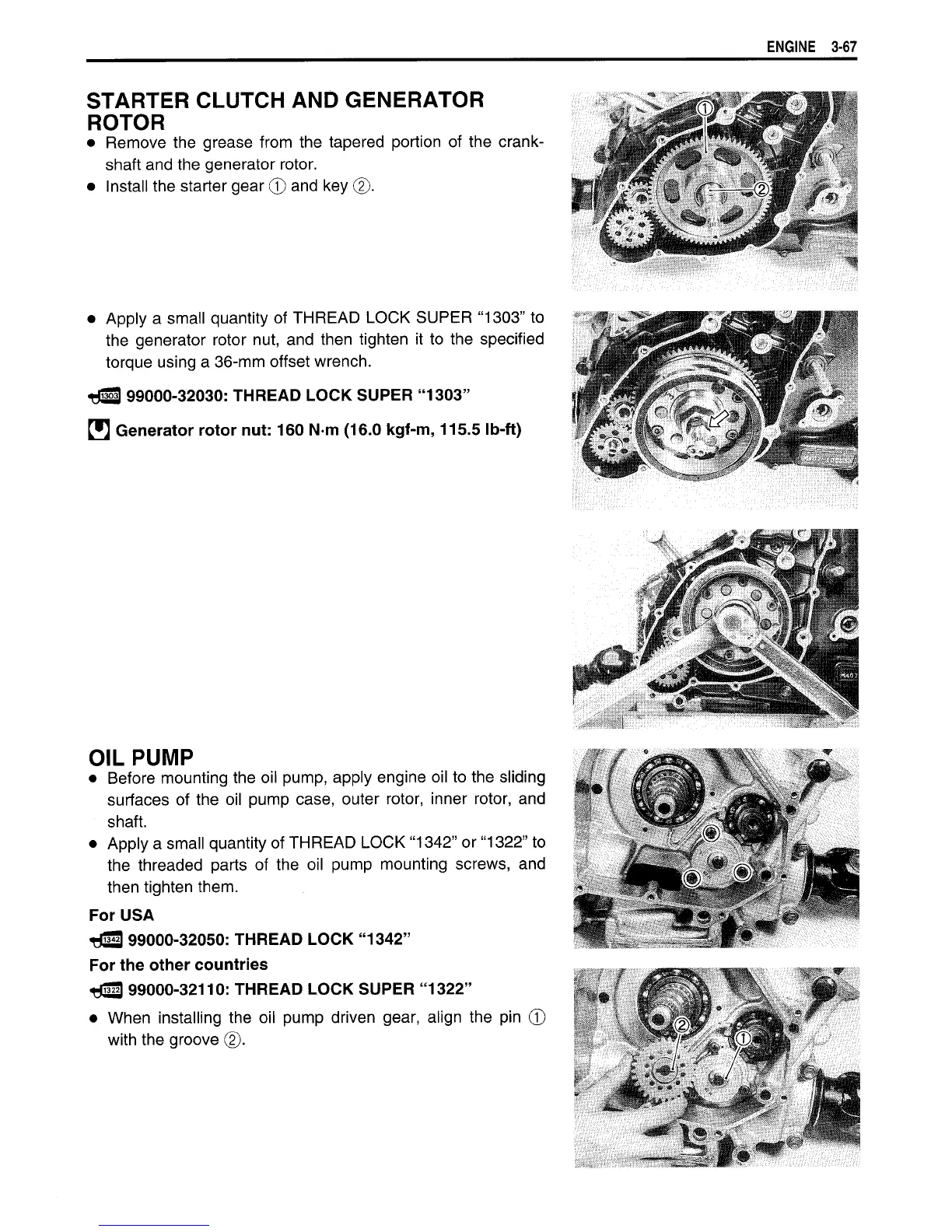

ENGINE
3-67
STARTER
CLUTCH
AND
GENERATOR
ROTOR
•
Remove
the
grease from
the
tapered portion
of
the
crank-
shaft
and the
generator rotor.
•
Install
the
starter gear
©
and key
©.
u
•
Apply
a
small quantity
of THREAD LOCK SUPER
"1303"
to
the generator rotor
nut, and
then tighten
it to the
specified
torque using
a
36-mm offset wrench.
439 99000-32030:
THREAD
LOCK SUPER
"1303"
H Generator rotor nut: 160 N m (16.0 kgf-m, 115.5
Ib-ft)
OIL
PUMP
•
Before mounting
the oil
pump, apply engine
oil to the
sliding
surfaces
of
the oil
pump case, outer rotor, inner rotor,
and
shaft.
•
Apply
a
small quantity
of THREAD LOCK
"1342"
or
"1322"
to
the threaded parts
of
the oil
pump mounting screws,
and
then tighten them.
For
USA
433 99000-32050:
THREAD
LOCK
"1342"
For
the other countries
43 99000-32110:
THREAD
LOCK SUPER
"1322"
•
When
installing
the oil
pump driven gear, align
the pin
©
with
the
groove (2).
