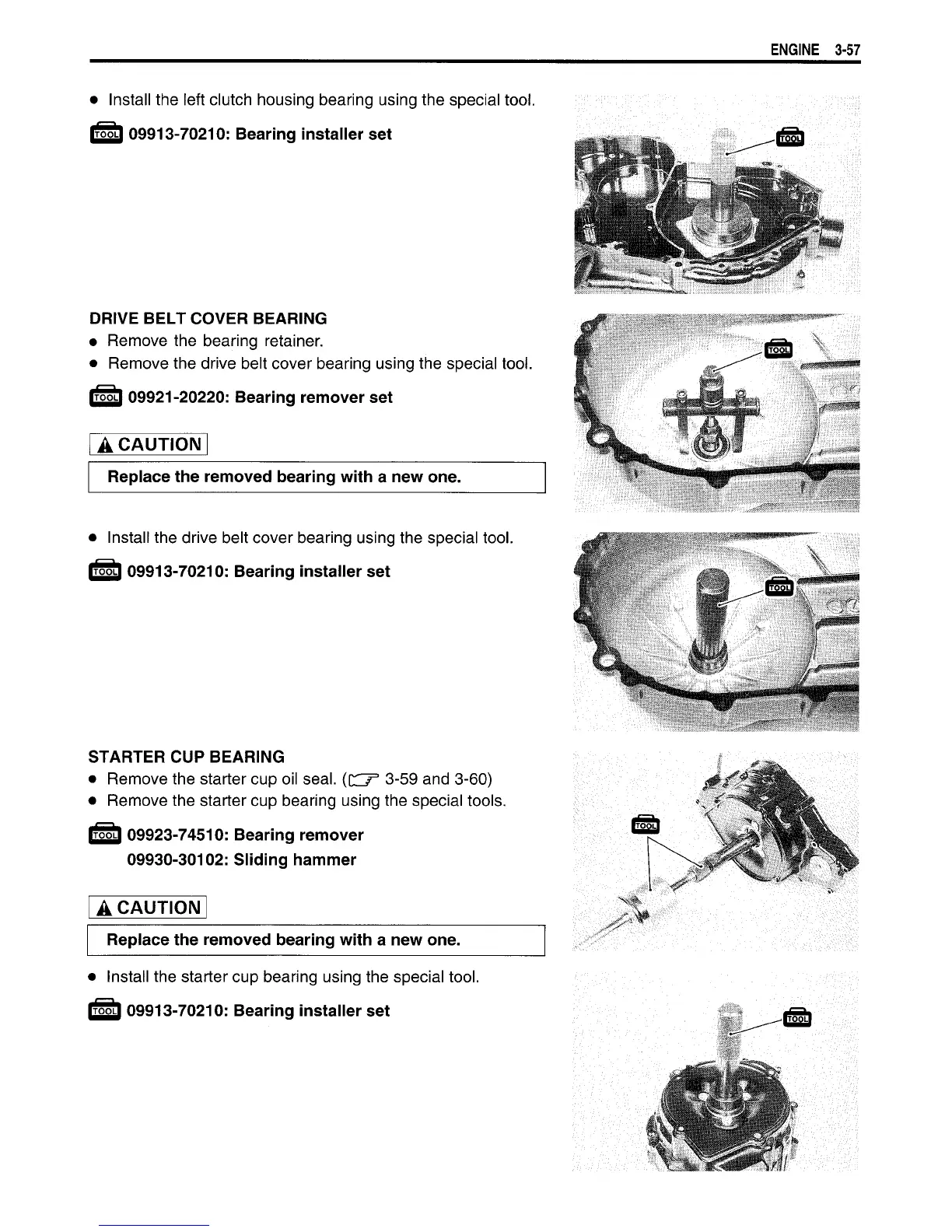

ENGINE 3-57
• Install the left clutch housing bearing using the special tool.
IT55LI 09913-70210: Bearing installer set
DRIVE BELT COVER BEARING
• Remove the bearing retainer.
• Remove the drive belt cover bearing using the special tool.
09921-20220: Bearing remover set
A CAUTION
Replace the removed bearing with a new one.
• Install the drive belt cover bearing using the special tool.
(™|) 09913-70210: Bearing installer set
STARTER CUP BEARING
• Remove the starter cup oil seal, (dr
3
3-59 and 3-60)
• Remove the starter cup bearing using the special tools.
frSgh 09923-74510: Bearing remover
09930-30102: Sliding hammer
A CAUTION
Replace the removed bearing with a new one.
• Install the starter cup bearing using the special tool.
(^) 09913-70210: Bearing installer set
