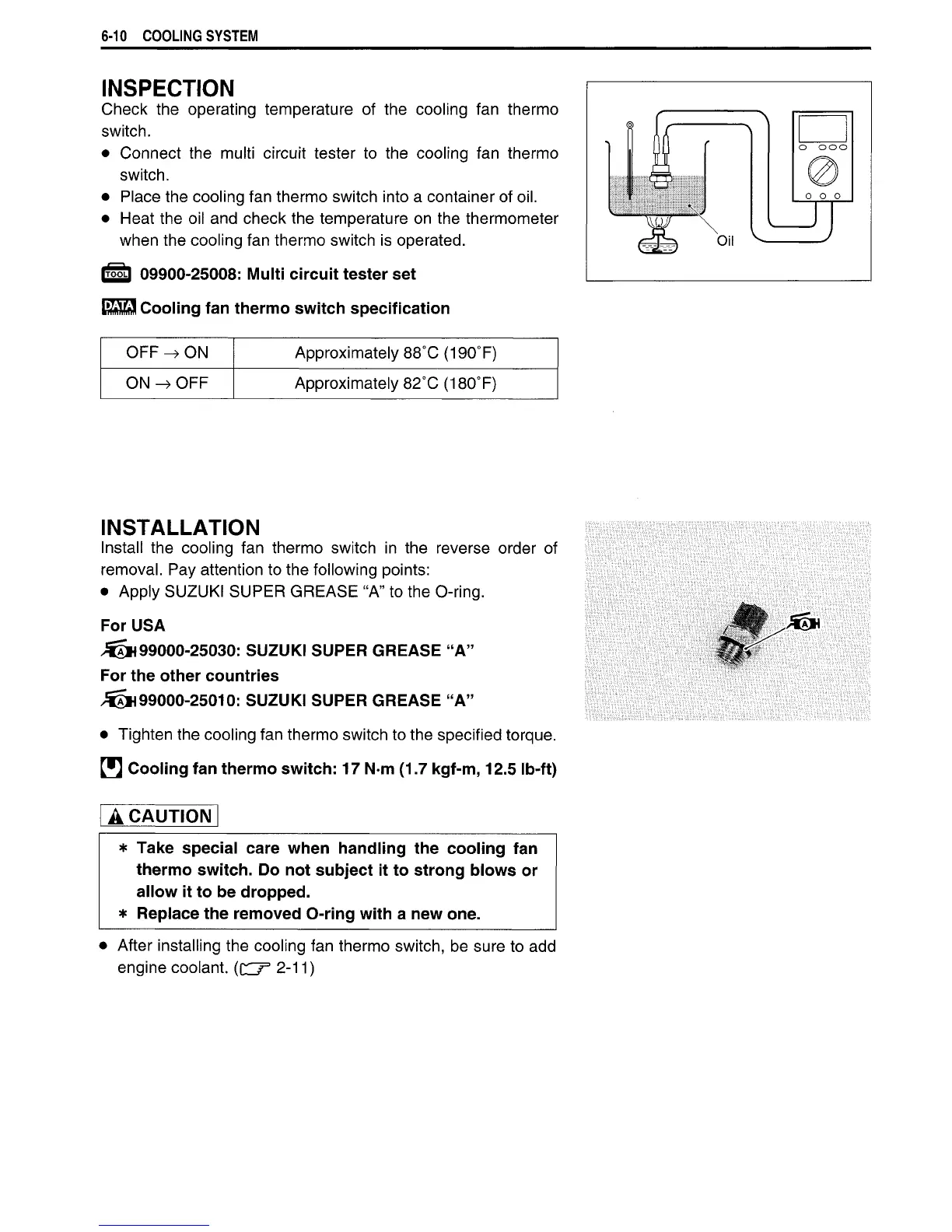

6-10 COOLING
SYSTEM
INSPECTION
Check
the
operating temperature
of the
cooling
fan
thermo
switch.
•
Connect
the
multi circuit tester
to the
cooling
fan
thermo
switch.
•
Place the cooling fan thermo switch into
a
container of oil.
•
Heat the oil and check the temperature
on
the thermometer
when the cooling fan thermo switch is operated.
IT55L1
09900-25008:
Multi
circuit tester set
\SMH
Cooling fan thermo switch specification
Oil
o ooo
V J
OFF
-»ON
Approximately
88°C
(190T)
ON
-»OFF
Approximately
82°C
(180T)
INSTALLATION
Install
the
cooling
fan
thermo switch
in the
reverse order
of
removal. Pay attention to the following points:
•
Apply
SUZUKI
SUPER
GREASE
"A" to the
O-ring.
For
USA
99000-25030:
SUZUKI
SUPER
GREASE
"A"
For
the other countries
%£M\99000-25010: SUZUKI
SUPER
GREASE
"A"
•
Tighten the cooling fan thermo switch to the specified torque.
H Cooling fan thermo switch: 17 N m (1.7 kgf-m, 12.5
Ib-ft)
A CAUTION
* Take special care when handling the cooling fan
thermo switch. Do not subject it to strong blows or
allow it to be dropped.
* Replace the removed O-ring
with
a new one.
After
installing the cooling fan thermo switch,
be
sure to add
engine coolant.
(CU
3
2-11)
