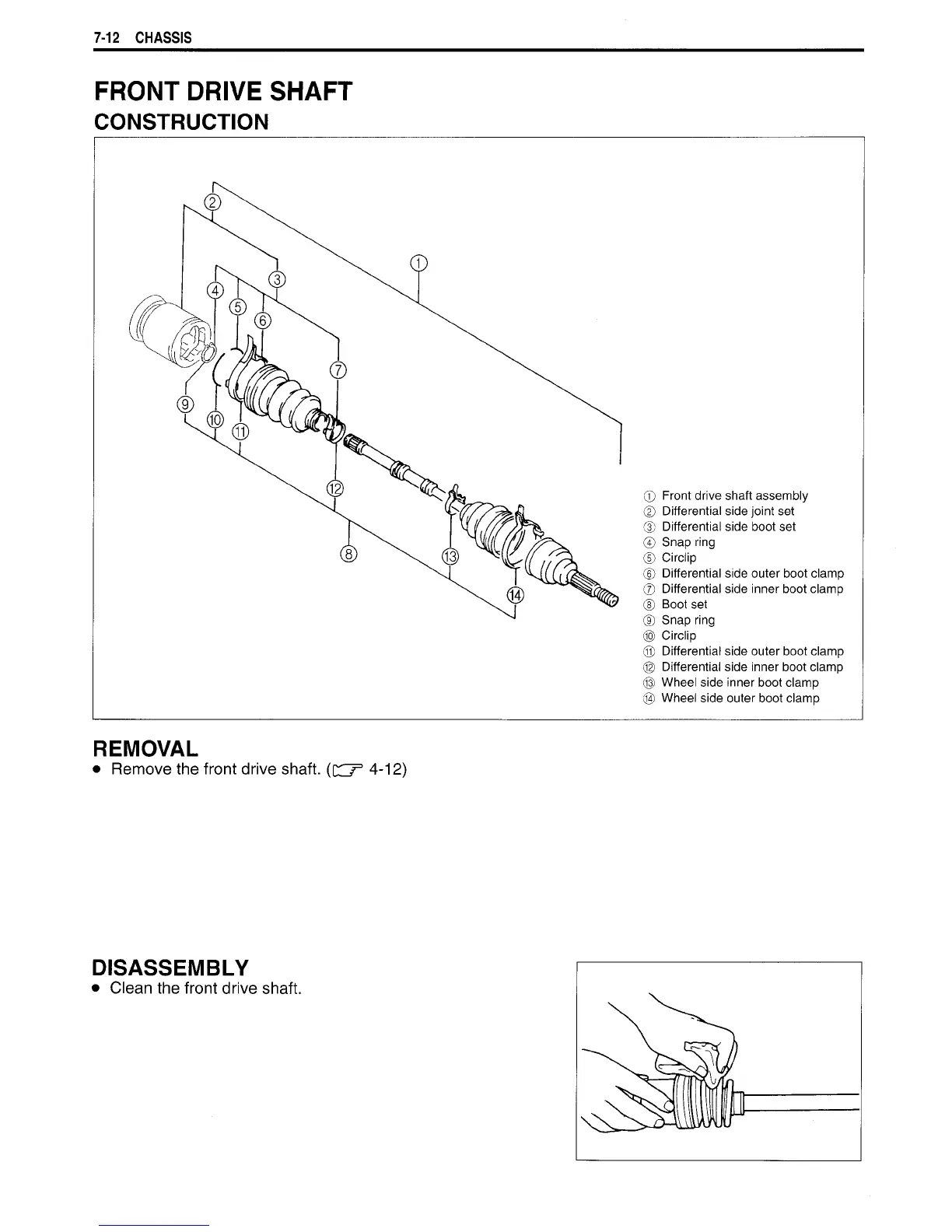

7-12 CHASSIS
FRONT DRIVE SHAFT
CONSTRUCTION
©
©
©
©
©
©
©
Front drive
Differential
Differential
Snap ring
Circlip
Differential
Differential
Boot set
Snap ring
Circlip
Differential
Differential
Wheel side
Wheel side
shaft assembly
side joint set
side boot set
side outer boot clamp
side inner boot clamp
side outer boot clamp
side inner boot clamp
inner boot clamp
outer boot clamp
REMOVAL
• Remove the front drive shaft. (dT' 4-12)
DISASSEMBLY
• Clean the front drive shaft.
