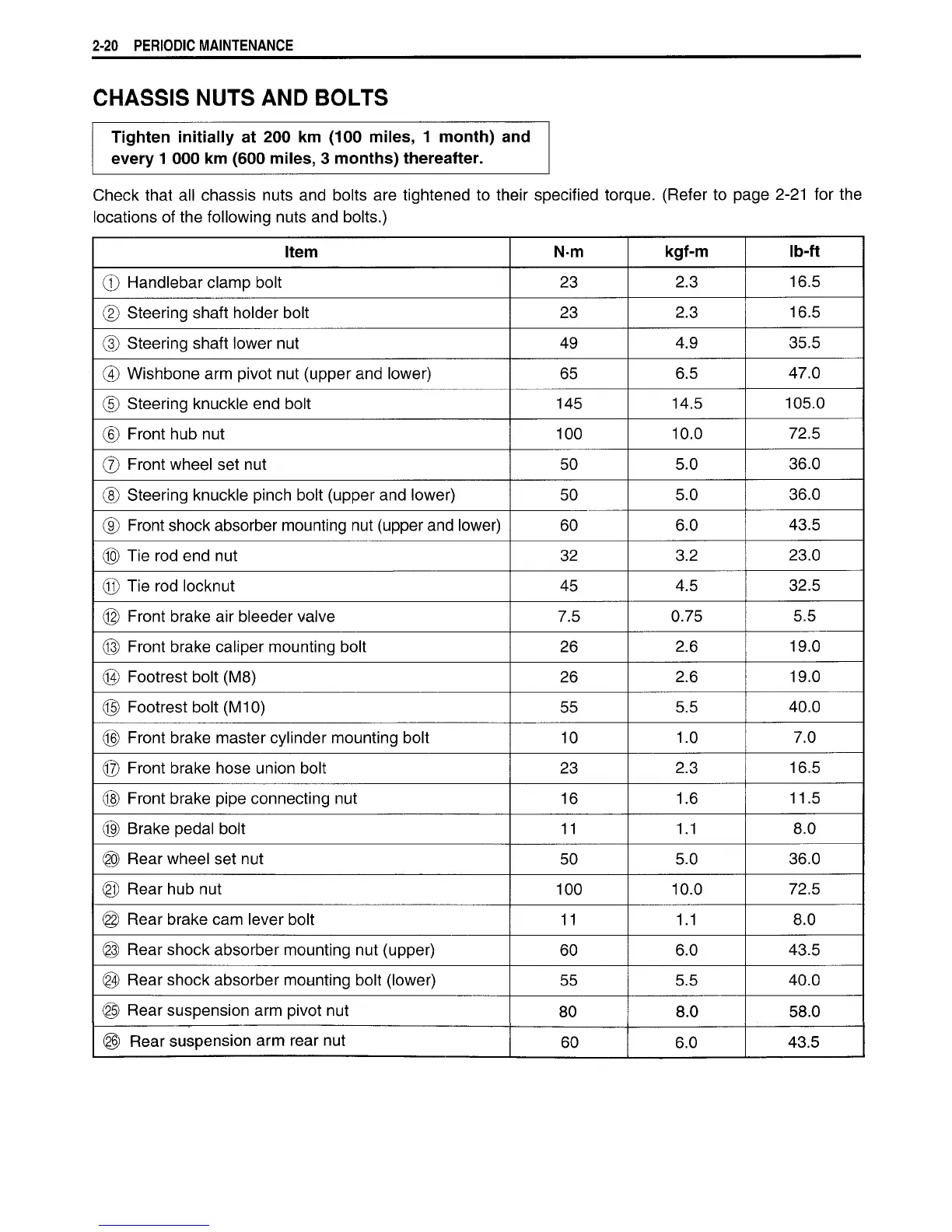

2-20 PERIODIC MAINTENANCE
CHASSIS NUTS AND BOLTS
Tighten initially at 200 km (100 miles, 1 month) and
every 1 000 km (600 miles, 3 months) thereafter.
Check that all chassis nuts and bolts are tightened to their specified torque. (Refer to page 2-21 for the
locations of the following nuts and bolts.)
Item
N-m
kgf-m Ib-ft
© Handlebar clamp bolt 23 2.3
16.5
© Steering shaft holder bolt
23 2.3
16.5
© Steering shaft lower nut 49
4.9 35.5
© Wishbone arm pivot nut (upper and lower) 65
6.5 47.0
© Steering knuckle end bolt 145
14.5 105.0
© Front hub nut 100
10.0 72.5
© Front wheel set nut
50 5.0
36.0
© Steering knuckle pinch bolt (upper and lower) 50 5.0
36.0
® Front shock absorber mounting nut (upper and lower) 60 6.0
43.5
® Tie rod end nut
32 3.2 23.0
@ Tie rod locknut 45
4.5 32.5
© Front brake air bleeder valve
7.5 0.75
5.5
© Front brake caliper mounting bolt 26 2.6
19.0
© Footrest bolt (M8) 26 2.6
19.0
© Footrest bolt (M10) 55
5.5 40.0
© Front brake master cylinder mounting bolt
10
1.0
7.0
@ Front brake hose union bolt
23
2.3
16.5
© Front brake pipe connecting nut
16 1.6
11.5
© Brake pedal bolt
11
1.1 8.0
© Rear wheel set nut
50 5.0 36.0
© Rear hub nut
100 10.0
72.5
© Rear brake cam lever bolt
11 1.1 8.0
© Rear shock absorber mounting nut (upper)
60 6.0
43.5
© Rear shock absorber mounting bolt (lower)
55 5.5
40.0
© Rear suspension arm pivot nut
80 8.0 58.0
© Rear suspension arm rear nut
60 6.0
43.5
