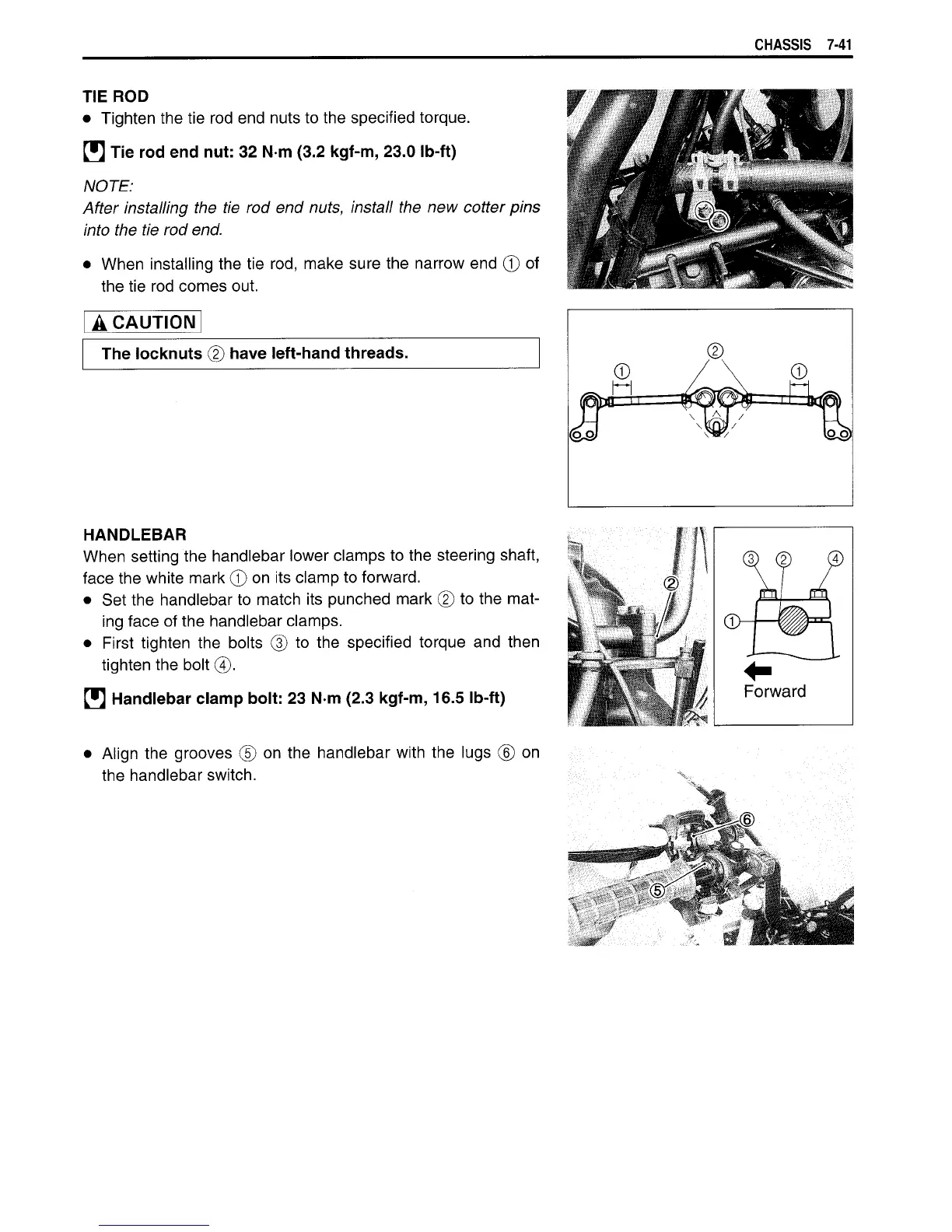

CHASSIS 7-41
TIE ROD
• Tighten the tie rod end nuts to the specified torque.
H Tie rod end nut: 32 N m (3.2 kgf-m, 23.0 Ib-ft)
NOTE:
After installing the tie rod end nuts, install the new cotter pins
into the tie rod end.
• When installing the tie rod, make sure the narrow end © of
the tie rod comes out.
A CAUTION
The locknuts @ have left-hand threads.
HANDLEBAR
When setting the handlebar lower clamps to the steering shaft,
face the white mark © on its clamp to forward.
• Set the handlebar to match its punched mark © to the mat-
ing face of the handlebar clamps.
• First tighten the bolts ® to the specified torque and then
tighten the bolt 0.
H Handlebar clamp bolt: 23 N m (2.3 kgf-m, 16.5 Ib-ft)
• Align the grooves © on the handlebar with the lugs ® on
the handlebar switch.
