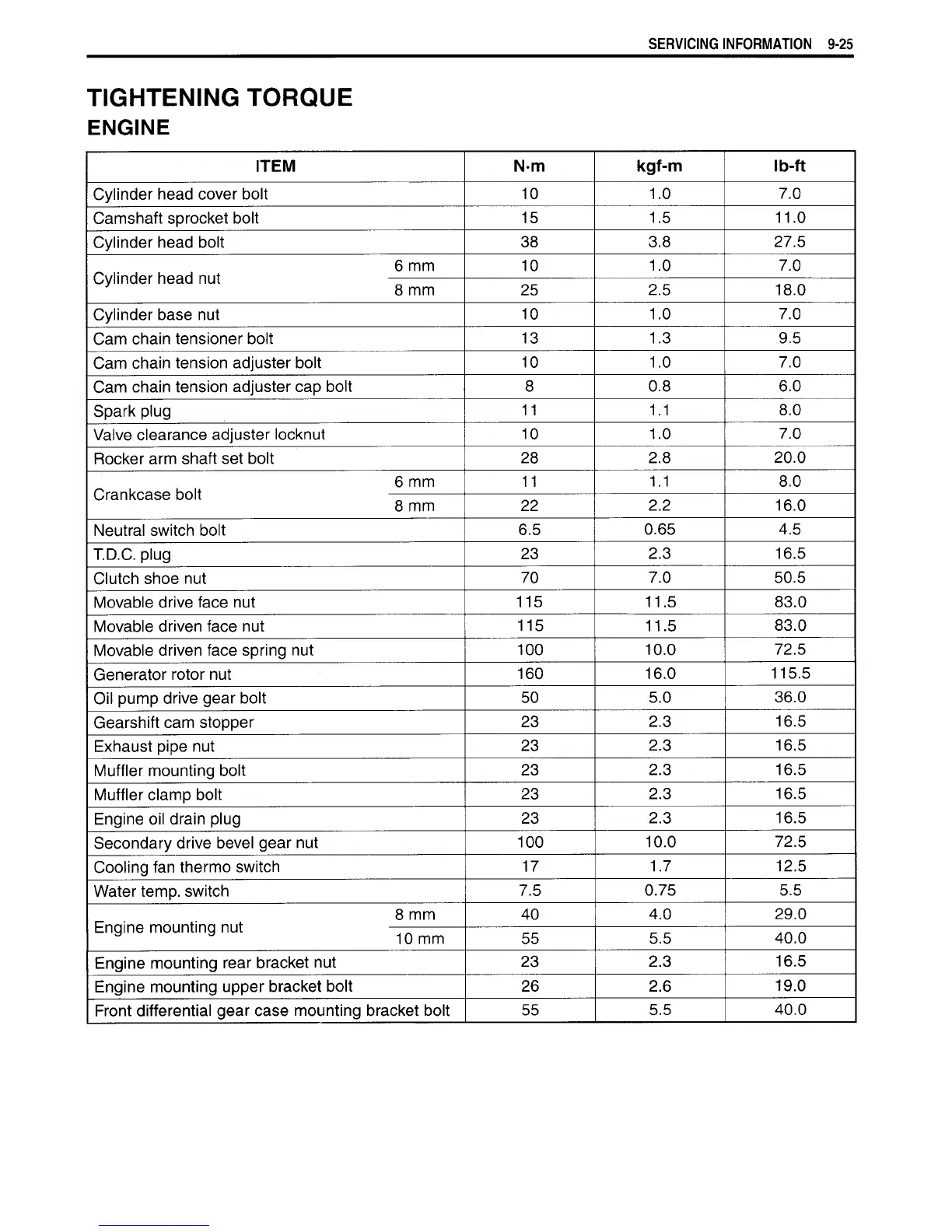

SERVICING INFORMATION 9-25
TIGHTENING TORQUE
ENGINE
ITEM
N-m
kgf-m Ib-ft
Cylinder head cover bolt 10 1.0 7.0
Camshaft sprocket bolt
15
1.5
11.0
Cylinder head bolt
38 3.8 27.5
6 mm
10
1.0 7.0
oyunaer neaa nui
8 mm
25
2.5 18.0
Cylinder base nut
10 1.0 7.0
Cam chain tensioner bolt
13
1.3
9.5
Cam chain tension adjuster bolt 10
1.0
7.0
Cam chain tension adjuster cap bolt 8 0.8 6.0
Spark plug
11 1.1 8.0
Valve clearance adjuster locknut 10 1.0 7.0
Rocker arm shaft set bolt
28 2.8 20.0
6 mm 11 1.1 8.0
oranKCase DOIT _
8 mm
22 2.2 16.0
Neutral switch bolt
6.5 0.65 4.5
T.D.C. plug
23
2.3 16.5
Clutch shoe nut
70
7.0 50.5
Movable drive face nut
115 11.5
83.0
Movable driven face nut
115 11.5 83.0
Movable driven face spring nut
100 10.0 72.5
Generator rotor nut
160 16.0 115.5
Oil pump drive gear bolt
50 5.0 36.0
Gearshift cam stopper
23 2.3 16.5
Exhaust pipe nut
23 2.3 16.5
Muffler mounting bolt
23 2.3 16.5
Muffler clamp bolt
23 2.3 16.5
Engine oil drain plug
23
2.3 16.5
Secondary drive bevel gear nut
100 10.0 72.5
Cooling fan thermo switch
17
1.7
12.5
Water temp, switch
7.5 0.75 5.5
8 mm
40 4.0 29.0
Engine mounting nut
10 mm
55
5.5
40.0
Engine mounting rear bracket nut
23 2.3 16.5
Engine mounting upper bracket bolt
26 2.6 19.0
Front differential gear case mounting bracket bolt
55 5.5 40.0
