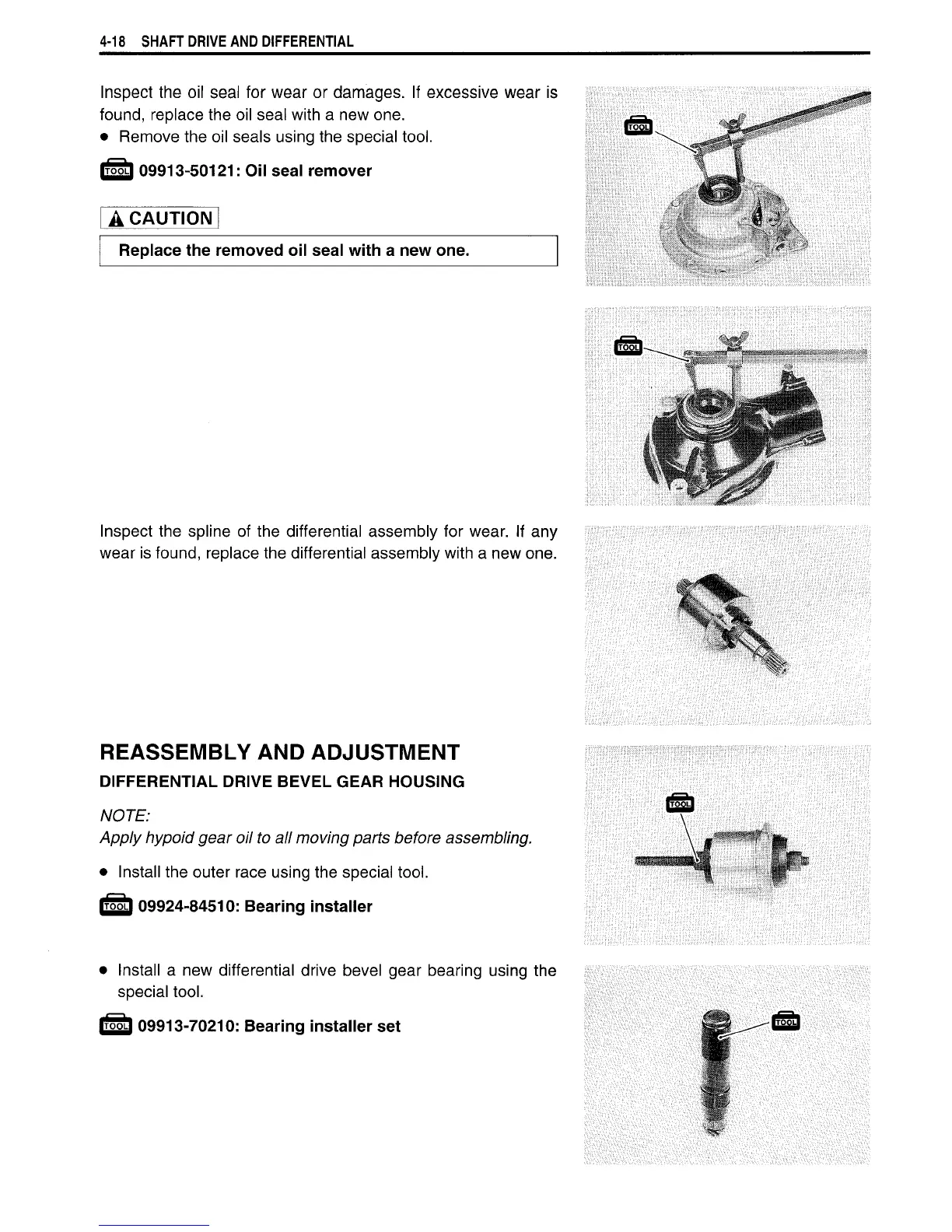

4-18 SHAFT DRIVE AND DIFFERENTIAL
Inspect the oil seal for wear or damages. If excessive wear is
found, replace the oil seal with a new one.
• Remove the oil seals using the special tool.
IT55LI 09913-50121: Oil seal remover
A CAUTION
Replace the removed oil seal with a new one.
Inspect the spline of the differential assembly for wear. If any
wear is found, replace the differential assembly with a new one.
REASSEMBLY AND ADJUSTMENT
DIFFERENTIAL DRIVE BEVEL GEAR HOUSING
NOTE:
Apply hypoid gear oil to all moving parts before assembling.
• Install the outer race using the special tool.
IT55LI 09924-84510: Bearing installer
• Install a new differential drive bevel gear bearing using the
special tool.
IT55LI 09913-70210: Bearing installer set
