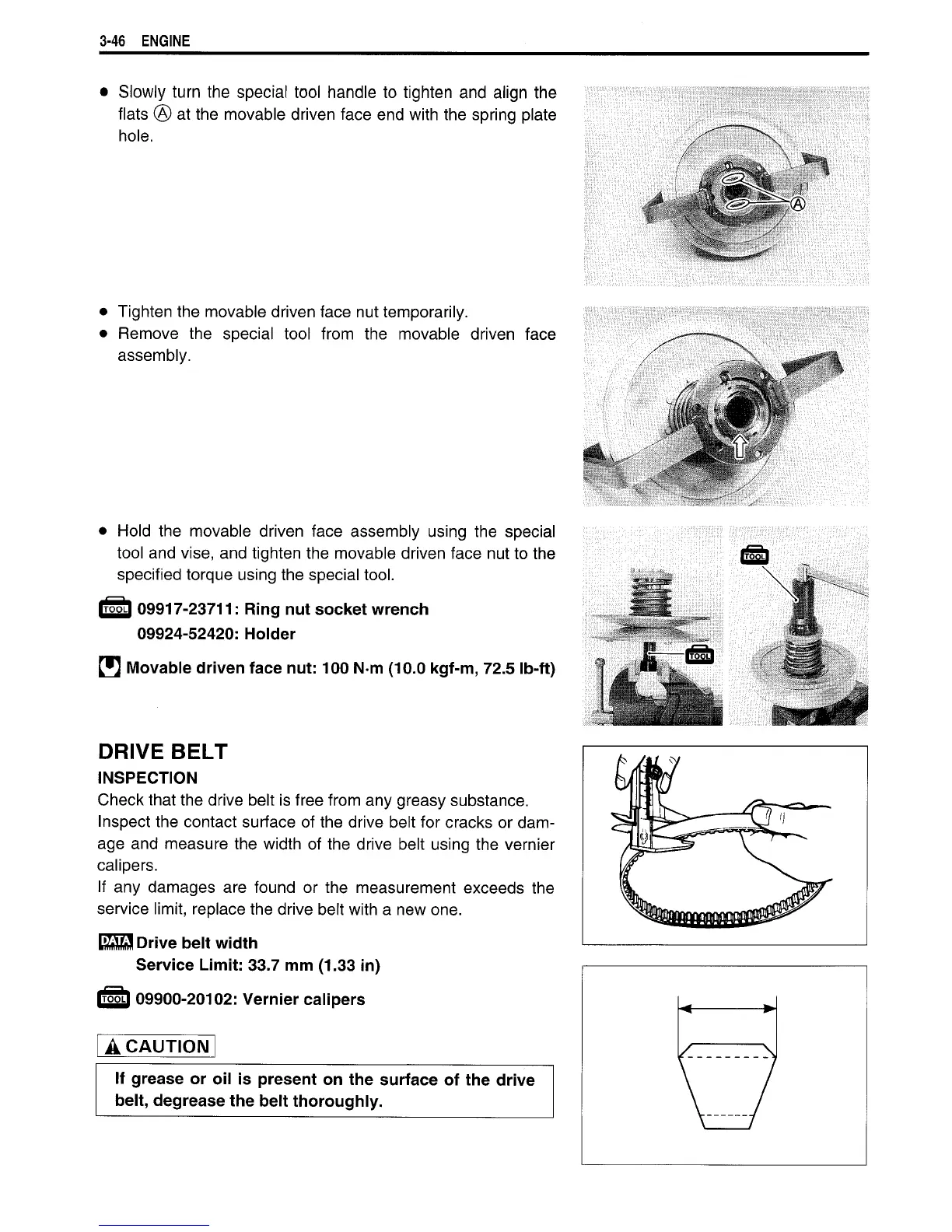

3-46 ENGINE
•
Slowly turn the special tool handle
to
tighten and align the
flats
®
at the movable driven face end
with
the spring plate
Tighten the movable driven face nut temporarily.
Remove
the
special tool from
the
movable driven face
assembly.
•
Hold
the
movable driven face assembly using
the
special
tool
and vise, and tighten the movable driven face nut to the
specified torque using the special
tool.
IT55LI
09917-23711: Ring nut socket wrench
09924-52420: Holder
[5 Movable driven face nut: 100 N-m (10.0 kgf-m, 72.5
Ib-ft)
DRIVE
BELT
INSPECTION
Check that the drive belt is free from any greasy substance.
Inspect the contact surface
of
the drive belt for cracks or dam-
age and measure the width
of
the drive belt using the vernier
calipers.
If
any
damages
are
found
or
the measurement exceeds
the
service
limit,
replace the drive belt
with
a
new one.
WM Drive belt width
Service
Limit: 33.7 mm (1.33 in)
1T55L1
09900-20102: Vernier calipers
A CAUTION
If grease or oil is present on the surface of the drive
belt, degrease the belt thoroughly.
To Next Page
