7-42
CHASSIS

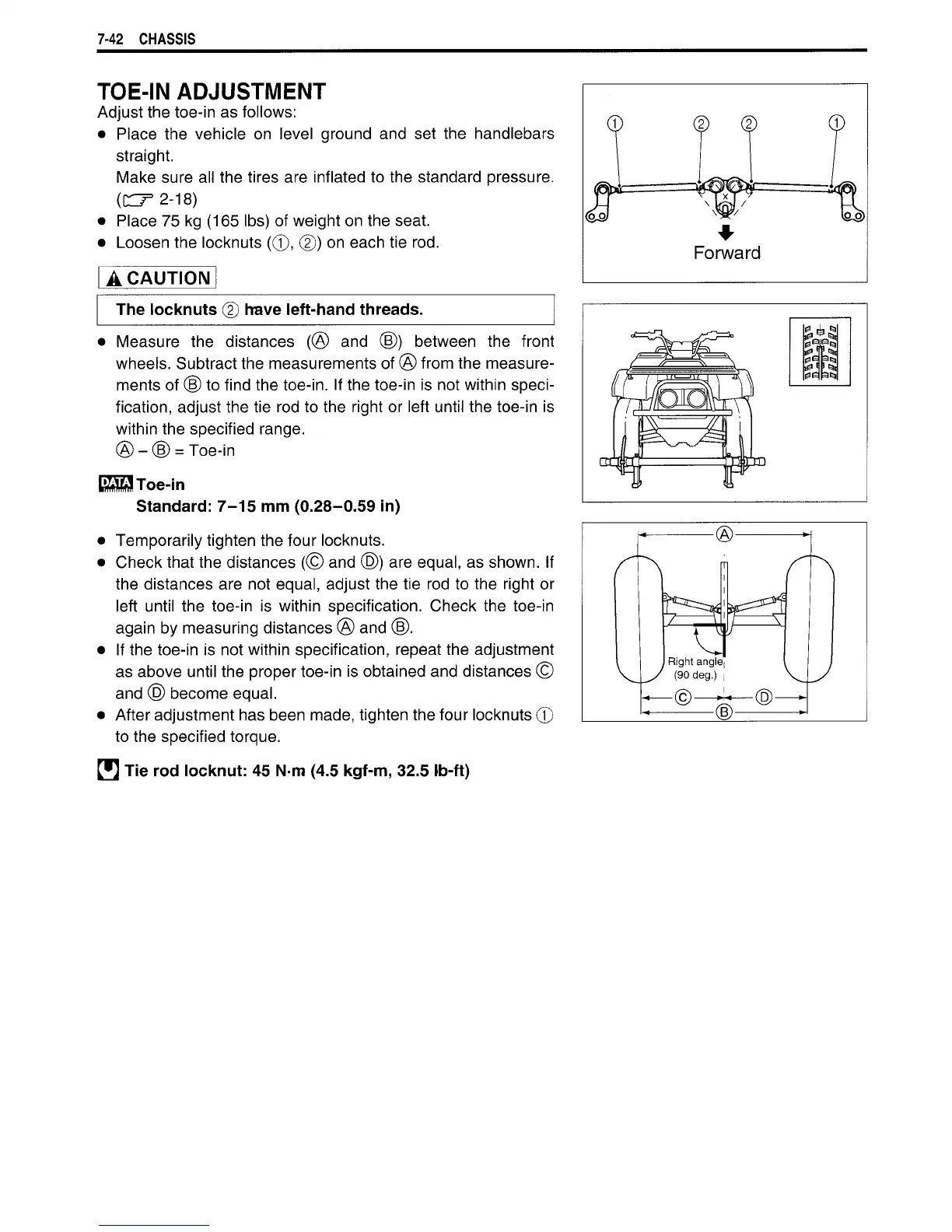

TOE-IN ADJUSTMENT
Adjust the toe-in as follows:
•
Place
the
vehicle
on
level ground
and set the
handlebars
straight.
Make
sure all the tires are inflated to the standard pressure.
(CZT 2-18)
•
Place 75 kg (165 lbs) of weight on the seat.
•
Loosen
the locknuts
(0, ®)
on each tie rod.
A CAUTION
The locknuts
(2)
have left-hand threads.
•
Measure
the
distances
(® and (§))
between
the
front
wheels. Subtract the measurements of
®
from the measure-
ments
of ®
to find the toe-in. If the toe-in
is
not within speci-
fication,
adjust the tie rod to the right
or
left
until the toe-in
is
within
the specified range.
® - ® =
Toe-in
LiifrmTfil
Toe-in
Standard: 7-15 mm
(0.28-0.59
in)
•
Temporarily tighten the four locknuts.
•
Check that the distances
(©
and
®)
are equal,
as
shown.
If
the
distances are not equal, adjust the tie rod to the right
or
left
until the toe-in
is
within specification. Check the toe-in
again
by
measuring distances
®
and (§).
•
If the toe-in
is
not within specification, repeat the adjustment
as
above
until the proper toe-in is obtained and distances
©
and
©
become equal.
•
After adjustment has
been
made, tighten the four locknuts
®
to
the specified torque.
H Tie rod locknut: 45 N m (4.5 kgf-m, 32.5
Ib-ft)
© (2)
