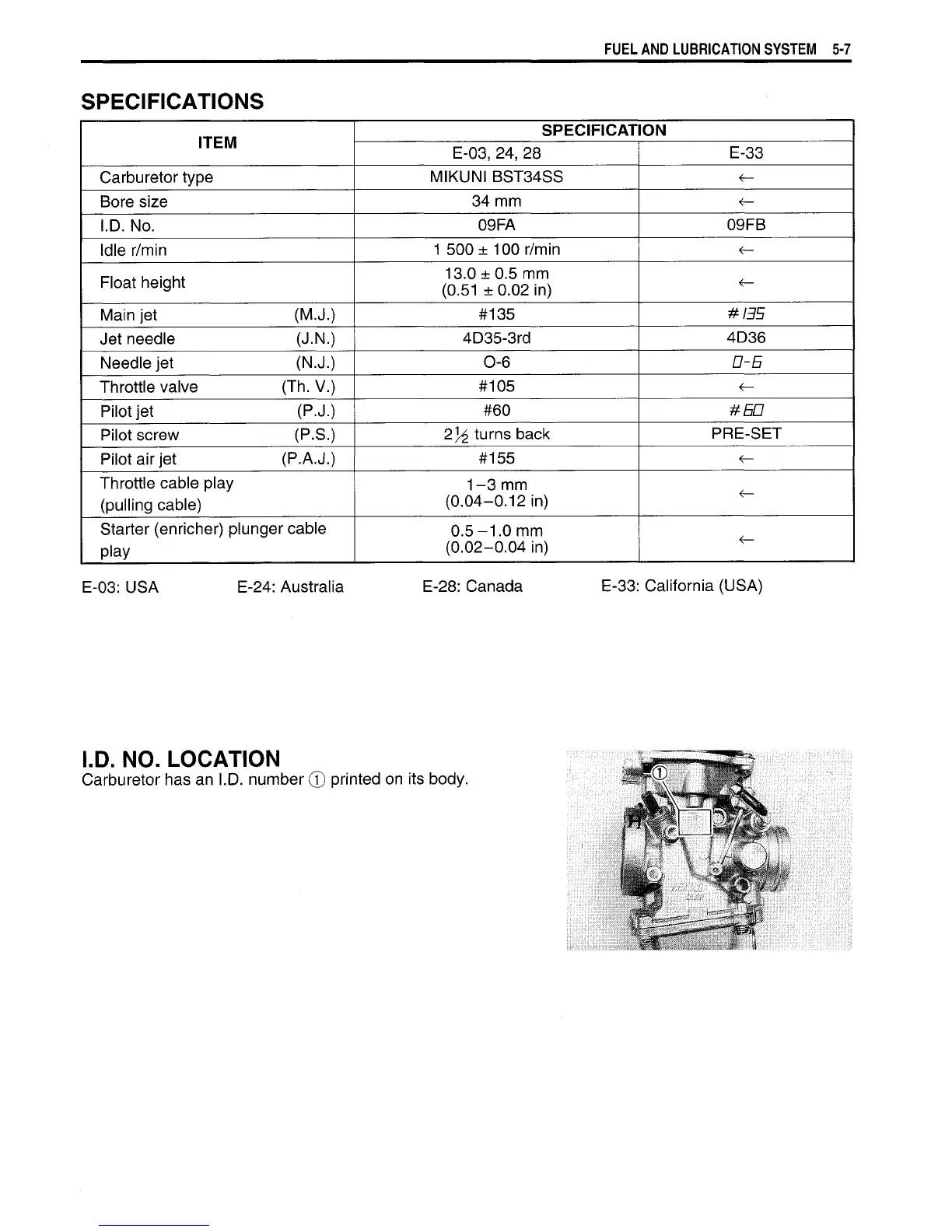

FUEL AND LUBRICATION SYSTEM 5-7
SPECIFICATIONS
ITEM
SPECIFICATION
ITEM
E-03, 24, 28
E-33
Carburetor type
MIKUNI BST34SS
<—
Bore size
34 mm
<—
I.D. No.
09FA 09FB
Idle r/min
1 500 ± 100 r/min
<r-
Float height
13.0 ± 0.5 mm
(0.51 ± 0.02 in)
<!—
Main jet
(M.J.)
#135
#B5
Jet needle
(J.N.)
4D35-3rd 4D36
Needle jet
(N.J.) 0-6 0-6
Throttle valve
(Th. V.)
#105 <-
Pilot jet
(P.J.) #60 #ED
Pilot screw
(P.S.)
2^ turns back PRE-SET
Pilot air jet
(P.A.J.) #155
<-
Throttle cable play
(pulling cable)
1-3 mm
(0.04-0.12 in)
<—
Starter (enricher) plunger cable
play
0.5 -1.0 mm
(0.02-0.04 in)
<-
E-03: USA
E-24: Australia
E-28: Canada E-33: California (USA)
I.D. NO. LOCATION
Carburetor has an I.D. number 0 printed on its body.
