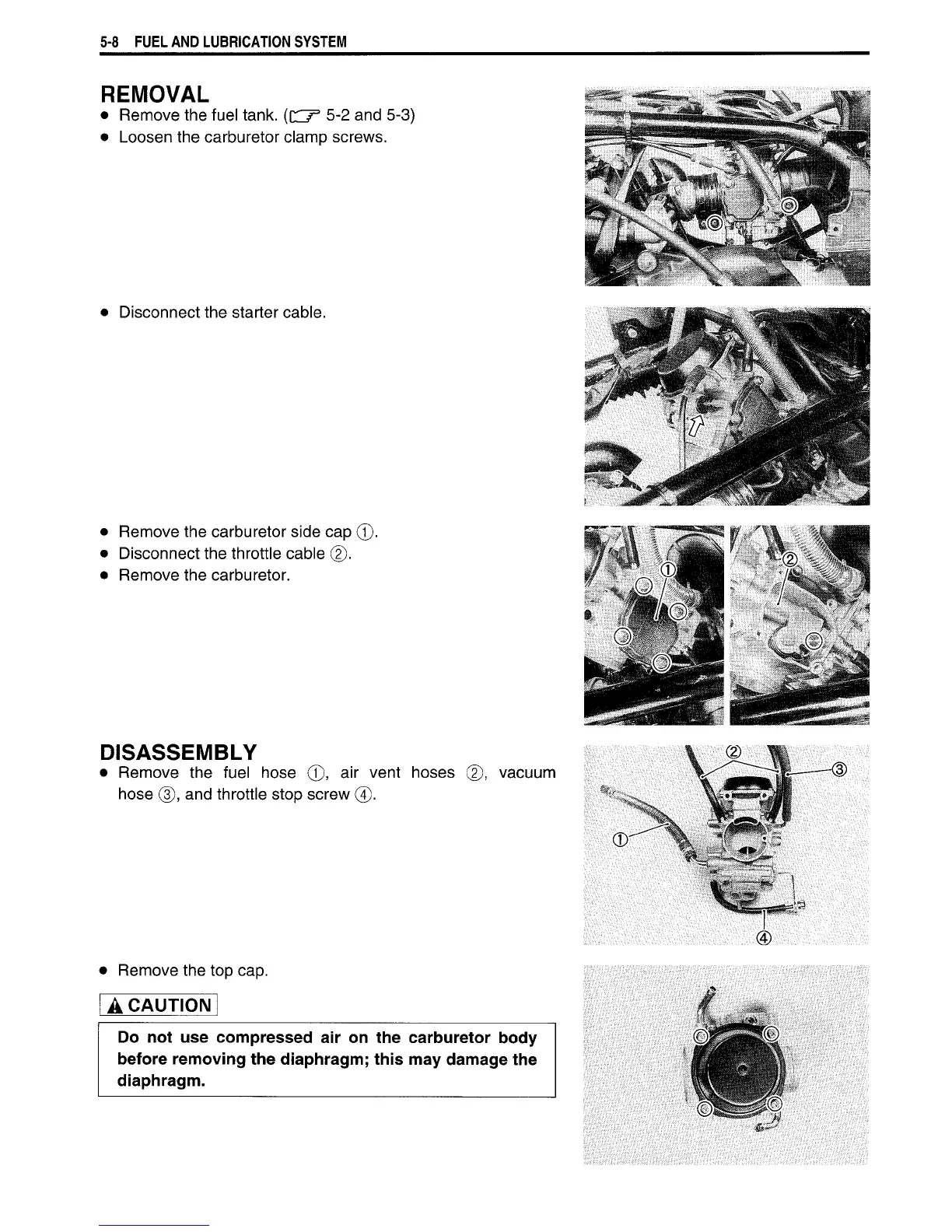

5-8 FUEL AND LUBRICATION SYSTEM
REMOVAL
• Remove the fuel tank. (CU
3
5-2 and 5-3)
• Loosen the carburetor clamp screws.
• Disconnect the starter cable.
• Remove the carburetor side cap ©.
• Disconnect the throttle cable (2).
• Remove the carburetor.
DISASSEMBLY
• Remove the fuel hose ©, air vent hoses
hose (5), and throttle stop screw @.
vacuum
• Remove the top cap.
A CAUTION
Do not use compressed air on the carburetor body
before removing the diaphragm; this may damage the
diaphragm.
