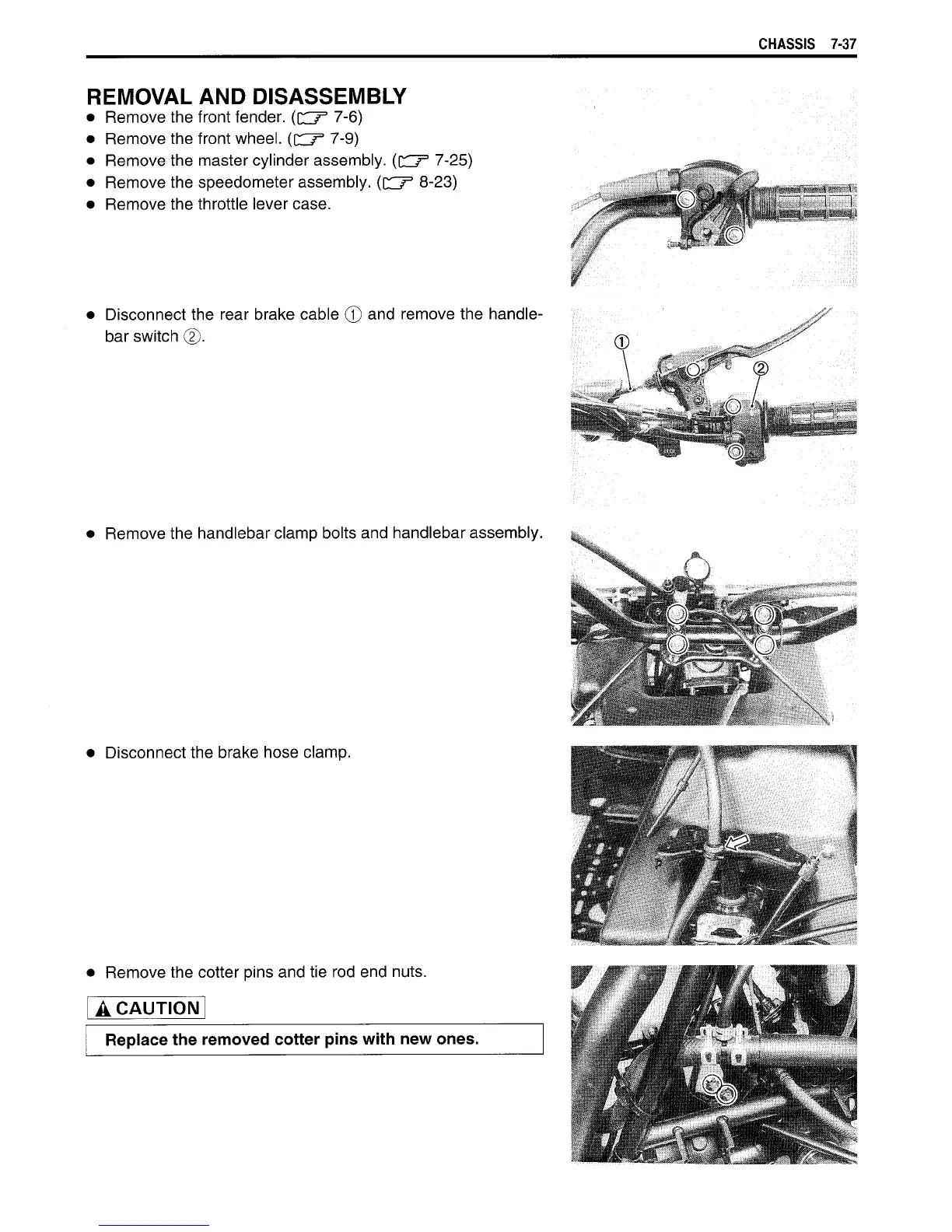

CHASSIS 7-37
REMOVAL AND DISASSEMBLY
• Remove the front fender. 7-6)
• Remove the front wheel. 7-9)
• Remove the master cylinder assembly. 7-25)
• Remove the speedometer assembly. (cZr* 8-23)
• Remove the throttle lever case.
• Disconnect the rear brake cable © and remove the handle-
bar switch (2).
