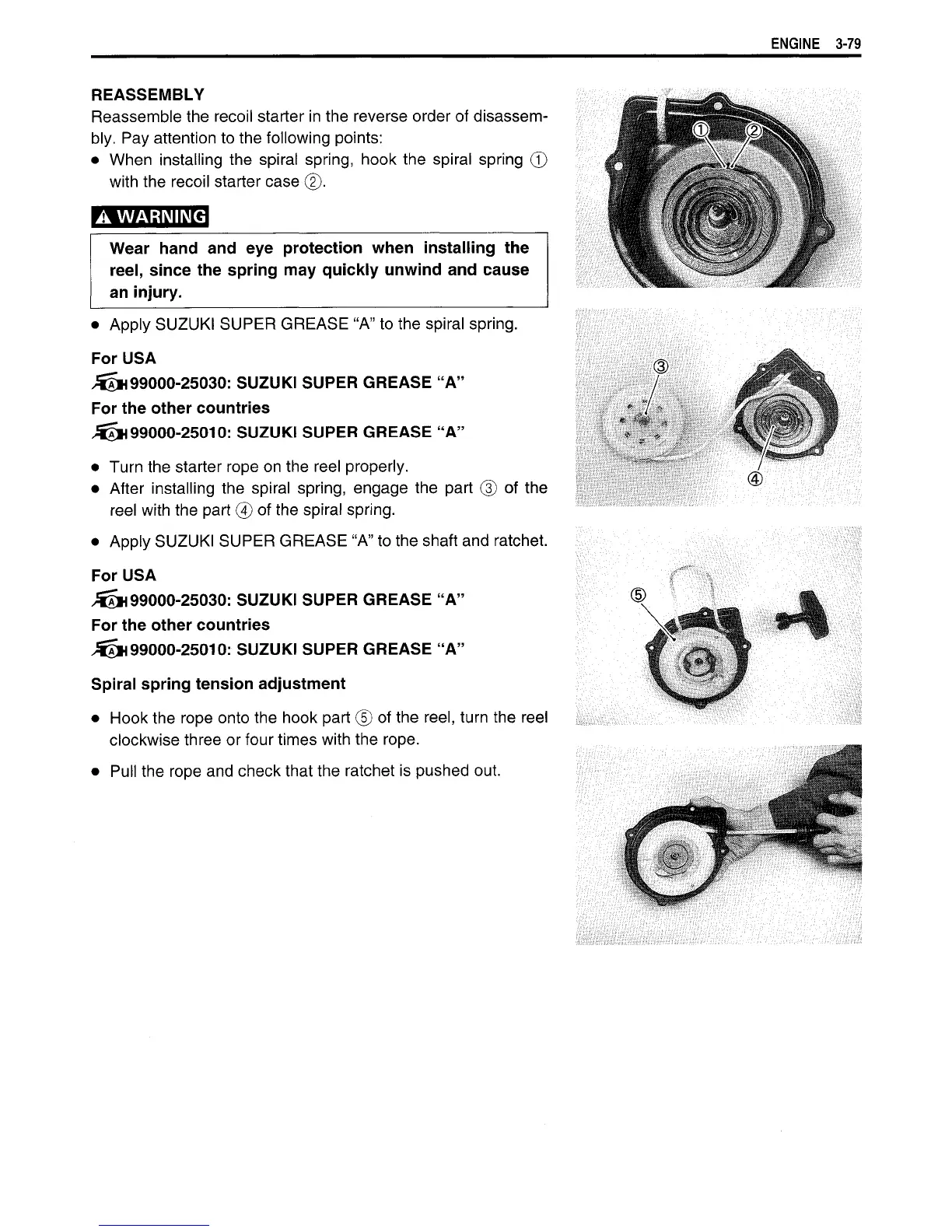

REASSEMBLY
Reassemble the recoil starter in the reverse order of disassem-
bly. Pay attention to the following points:
• When installing the spiral spring, hook the spiral spring ©
with the recoil starter case ©.
A WARNING
Wear hand and eye protection when installing the
reel, since the spring may quickly unwind and cause
an injury.
• Apply SUZUKI SUPER GREASE "A" to the spiral spring.
For USA
99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
• Turn the starter rope on the reel properly.
• After installing the spiral spring, engage the part © of the
reel with the part @ of the spiral spring.
• Apply SUZUKI SUPER GREASE "A" to the shaft and ratchet.
For USA
99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
/5§H99000-25010: SUZUKI SUPER GREASE "A"
Spiral spring tension adjustment
• Hook the rope onto the hook part © of the reel, turn the reel
clockwise three or four times with the rope.
• Pull the rope and check that the ratchet is pushed out.
