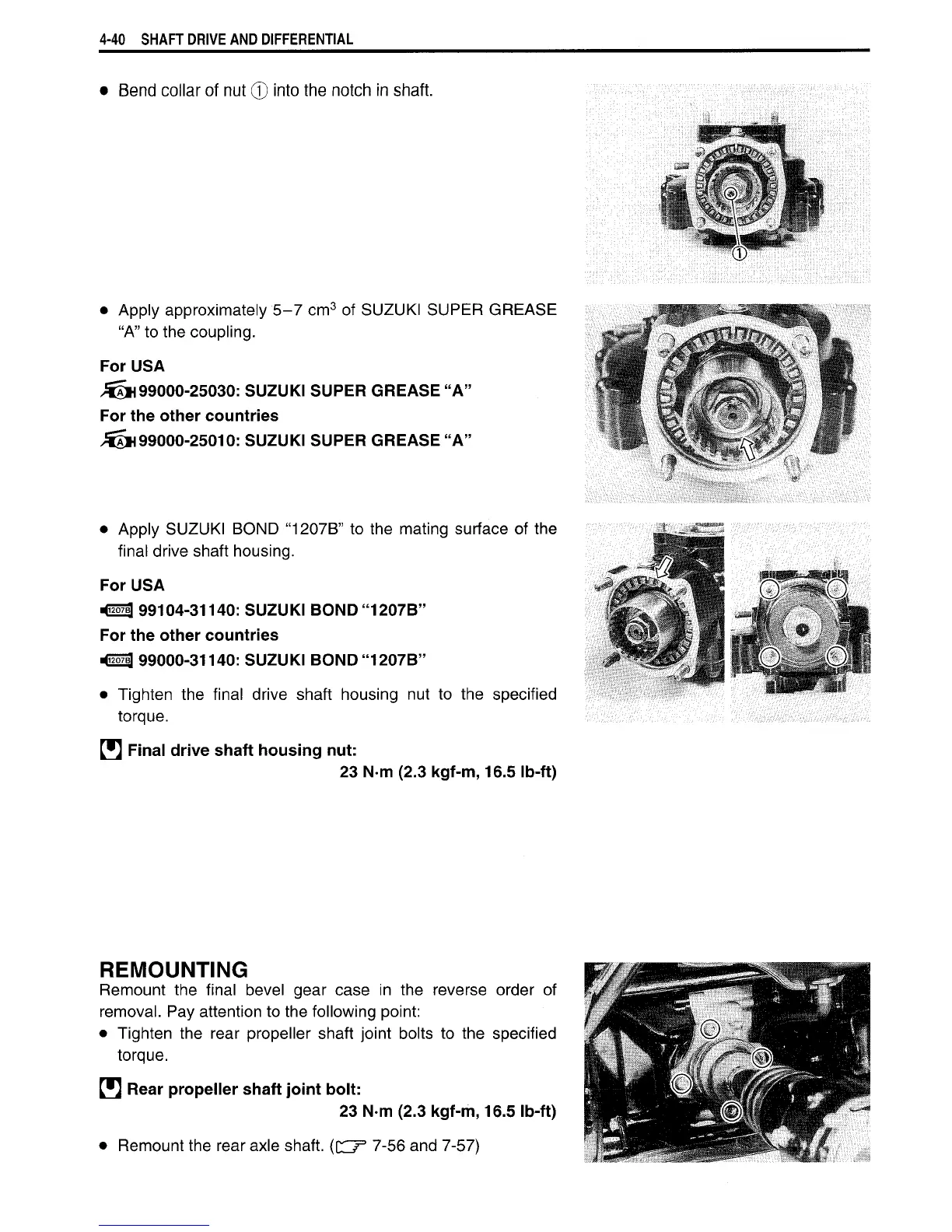

4-40 SHAFT DRIVE AND DIFFERENTIAL
• Bend collar of nut ® into the notch in shaft.
• Apply approximately 5-7 cm
3
of SUZUKI SUPER GREASE
"A" to the coupling.
For USA
99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
• Apply SUZUKI BOND "1207B" to the mating surface of the
final drive shaft housing.
For USA
HhsZI 99104-31140: SUZUKI BOND"1207B"
For the other countries
99000-31140: SUZUKI BOND"1207B"
• Tighten the final drive shaft housing nut to the specified
torque.
H Final drive shaft housing nut:
23 N m (2.3 kgf-m, 16.5 Ib-ft)
REMOUNTING
Remount the final bevel gear case in the reverse order of
removal. Pay attention to the following point:
• Tighten the rear propeller shaft joint bolts to the specified
torque.
H Rear propeller shaft joint bolt:
23 N m (2.3 kgf-m, 16.5 Ib-ft)
• Remount the rear axle shaft. (CT
5
7-56 and 7-57)
