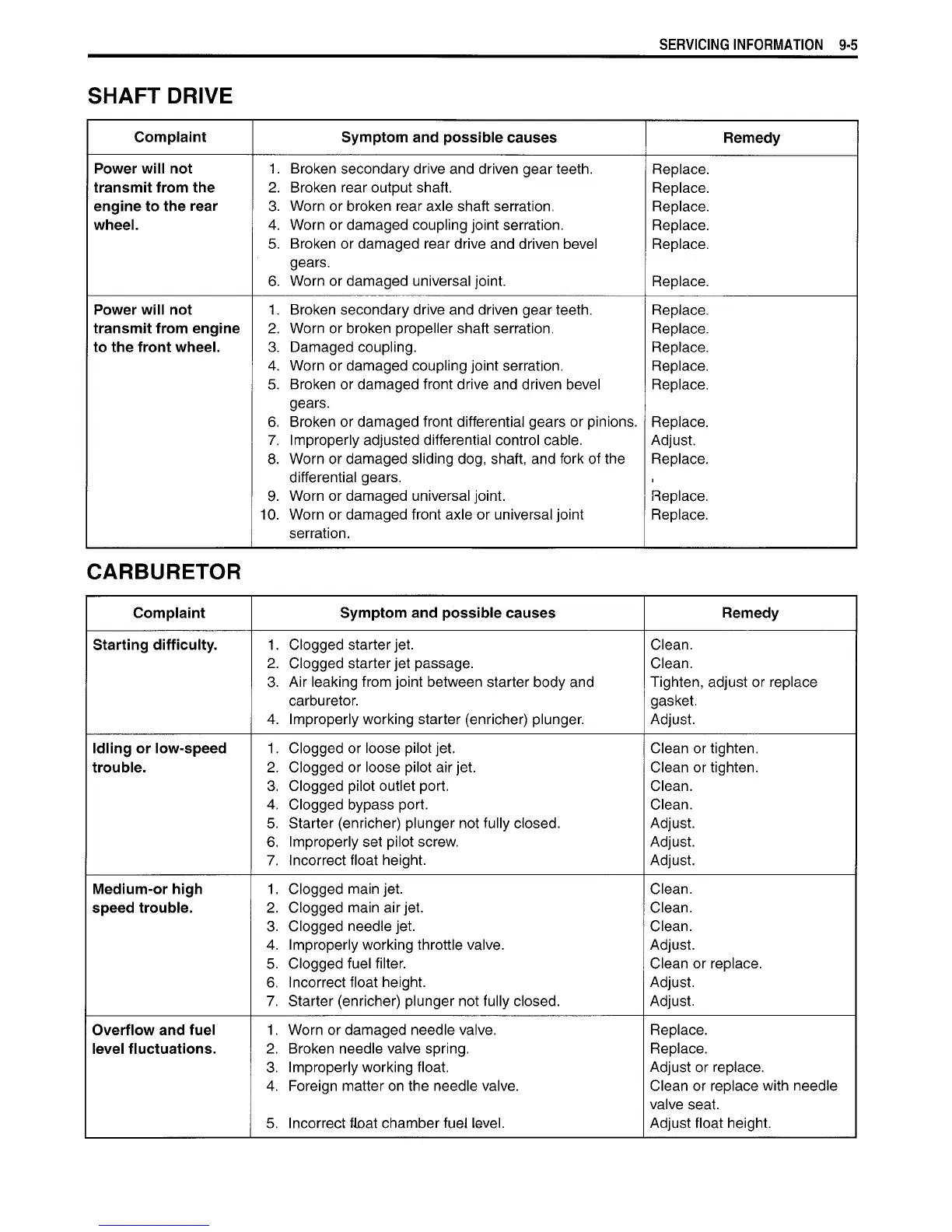

SERVICING INFORMATION 9-5
SHAFT DRIVE
Complaint
Symptom and possible causes
Remedy
Power will not
transmit from the
engine to the rear
wheel.
1. Broken secondary drive and driven gear teeth.
2. Broken rear output shaft.
3. Worn or broken rear axle shaft serration.
4. Worn or damaged coupling joint serration.
5. Broken or damaged rear drive and driven bevel
gears.
6. Worn or damaged universal joint.
Replace.
Replace.
Replace.
Replace.
Replace.
Replace.
Power will not
transmit from engine
to the front wheel.
1. Broken secondary drive and driven gear teeth.
2. Worn or broken propeller shaft serration.
3. Damaged coupling.
4. Worn or damaged coupling joint serration.
5. Broken or damaged front drive and driven bevel
gears.
6. Broken or damaged front differential gears or pinions.
7. Improperly adjusted differential control cable.
8. Worn or damaged sliding dog, shaft, and fork of the
differential gears.
9. Worn or damaged universal joint.
10. Worn or damaged front axle or universal joint
serration.
Replace.
Replace.
Replace.
Replace.
Replace.
Replace.
Adjust.
Replace.
Replace.
Replace.
CARBURETOR
Complaint
Symptom and possible causes
Remedy
Starting difficulty.
1. Clogged starter jet.
2. Clogged starter jet passage.
3. Air leaking from joint between starter body and
carburetor.
4. Improperly working starter (enricher) plunger.
Clean.
Clean.
Tighten, adjust or replace
gasket.
Adjust.
Idling or low-speed
trouble.
1. Clogged or loose pilot jet.
2. Clogged or loose pilot air jet.
3. Clogged pilot outlet port.
4. Clogged bypass port.
5. Starter (enricher) plunger not fully closed.
6. Improperly set pilot screw.
7. Incorrect float height.
Clean or tighten.
Clean or tighten.
Clean.
Clean.
Adjust.
Adjust.
Adjust.
Medium-or high
speed trouble.
1. Clogged main jet.
2. Clogged main air jet.
3. Clogged needle jet.
4. Improperly working throttle valve.
5. Clogged fuel filter.
6. Incorrect float height.
7. Starter (enricher) plunger not fully closed.
Clean.
Clean.
Clean.
Adjust.
Clean or replace.
Adjust.
Adjust.
Overflow and fuel
level fluctuations.
1. Worn or damaged needle valve.
2. Broken needle valve spring.
3. Improperly working float.
4. Foreign matter on the needle valve.
5. Incorrect float chamber fuel level.
Replace.
Replace.
Adjust or replace.
Clean or replace with needle
valve seat.
Adjust float height.
