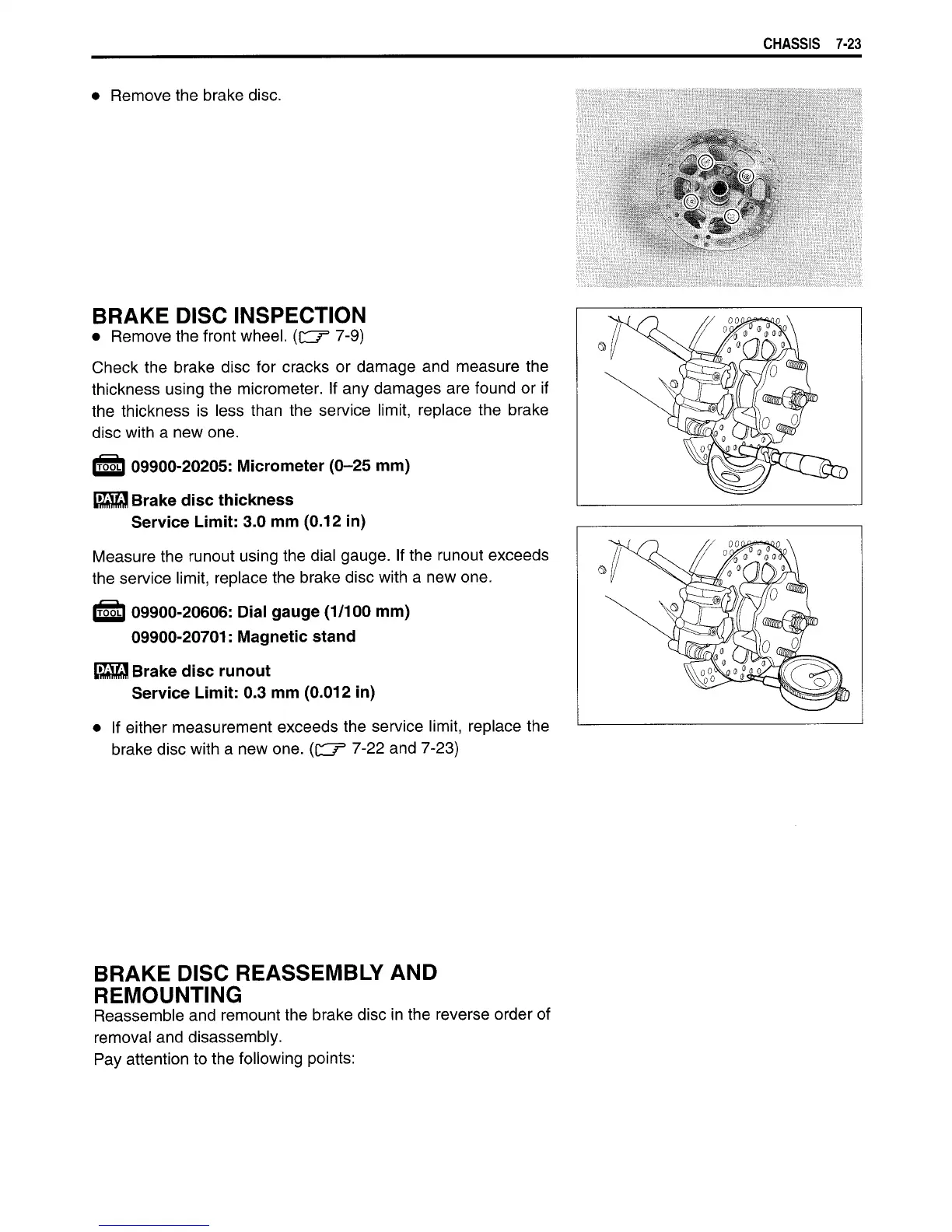

• Remove the brake disc.
BRAKE DISC INSPECTION
• Remove the front wheel. (CCT
3
7-9)
Check the brake disc for cracks or damage and measure the
thickness using the micrometer. If any damages are found or if
the thickness is less than the service limit, replace the brake
disc with a new one.
09900-20205: Micrometer (0-25 mm)
Effiffil Brake disc thickness
Service Limit: 3.0 mm (0.12 in)
Measure the runout using the dial gauge. If the runout exceeds
the service limit, replace the brake disc with a new one.
09900-20606: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
Effl Brake disc runout
Service Limit: 0.3 mm (0.012 in)
• If either measurement exceeds the service limit, replace the
brake disc with a new one. (CC7
3
7-22 and 7-23)
BRAKE DISC REASSEMBLY AND
REMOUNTING
Reassemble and remount the brake disc in the reverse order of
removal and disassembly.
Pay attention to the following points:
