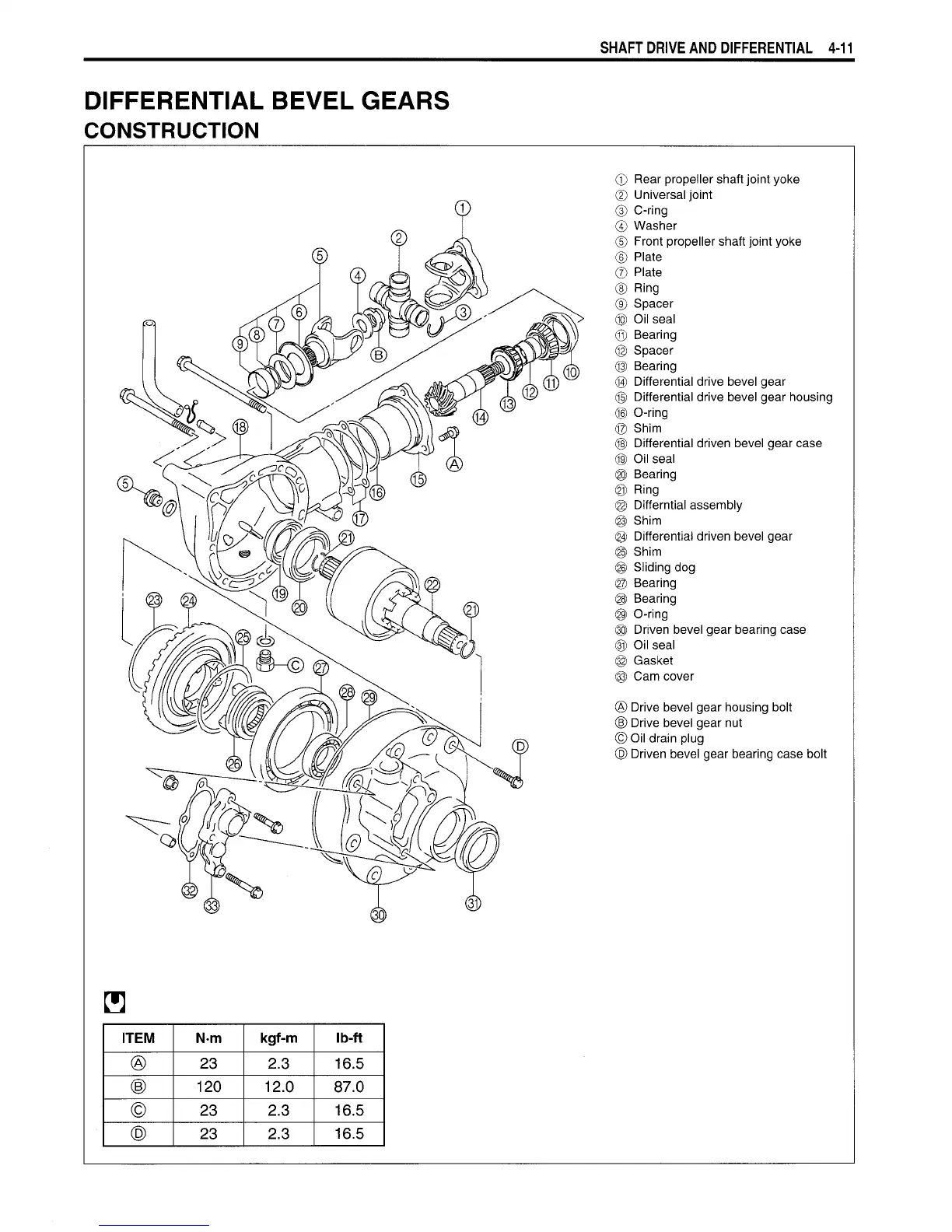

SHAFT DRIVE AND DIFFERENTIAL 4-11
DIFFERENTIAL BEVEL GEARS
CONSTRUCTION
© Rear propeller shaft joint yoke
© Universal joint
® C-ring
© Washer
© Front propeller shaft joint yoke
© Plate
® Plate
© Ring
© Spacer
® Oil seal
® Bearing
© Spacer
@ Bearing
© Differential drive bevel gear
© Differential drive bevel gear housing
© O-ring
© Shim
© Differential driven bevel gear case
® Oil seal
© Bearing
® Ring
@ Differntial assembly
© Shim
© Differential driven bevel gear
© Shim
© Sliding dog
© Bearing
@ Bearing
© O-ring
© Driven bevel gear bearing case
© Oil seal
@ Gasket
@ Cam cover
® Drive bevel gear housing bolt
® Drive bevel gear nut
© Oil drain plug
© Driven bevel gear bearing case bolt
H
ITEM
N-m kgf-m Ib-ft
®
23 2.3 16.5
®
120 12.0 87.0
©
23 2.3 16.5
®
23 2.3 16.5
