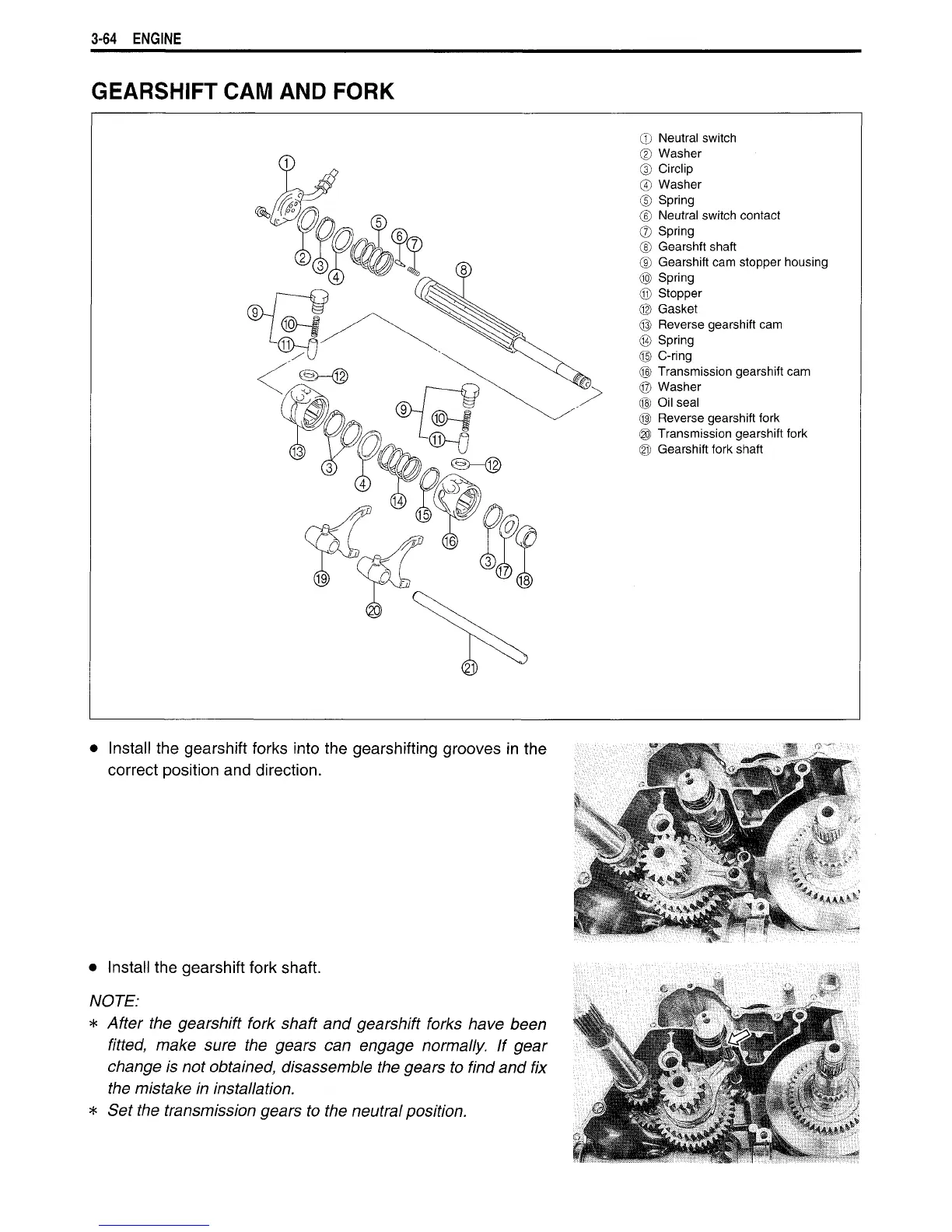

3-64 ENGINE
GEARSHIFT
CAM AND FORK
©
Neutral switch
©
Washer
©
Circlip
©
Washer
©
Spring
©
Neutral switch contact
©
Spring
©
Gearshft shaft
©
Gearshift cam stopper housing
©
Spring
©
Stopper
©
Gasket
©
Reverse gearshift cam
©
Spring
©
C-ring
©
Transmission gearshift cam
®
Washer
©
Oil seal
©
Reverse gearshift fork
©
Transmission gearshift fork
®
Gearshift fork shaft
Install
the gearshift forks into the gearshifting grooves in the
correct
position and direction.
*
Install the gearshift fork shaft.
NOTE:
* After the gearshift fork shaft and gearshift forks have been
fitted,
make sure the gears can engage
normally.
If gear
change
is not obtained, disassemble the gears to find and fix
the mistake in installation.
* Set the transmission gears to the neutral position.
