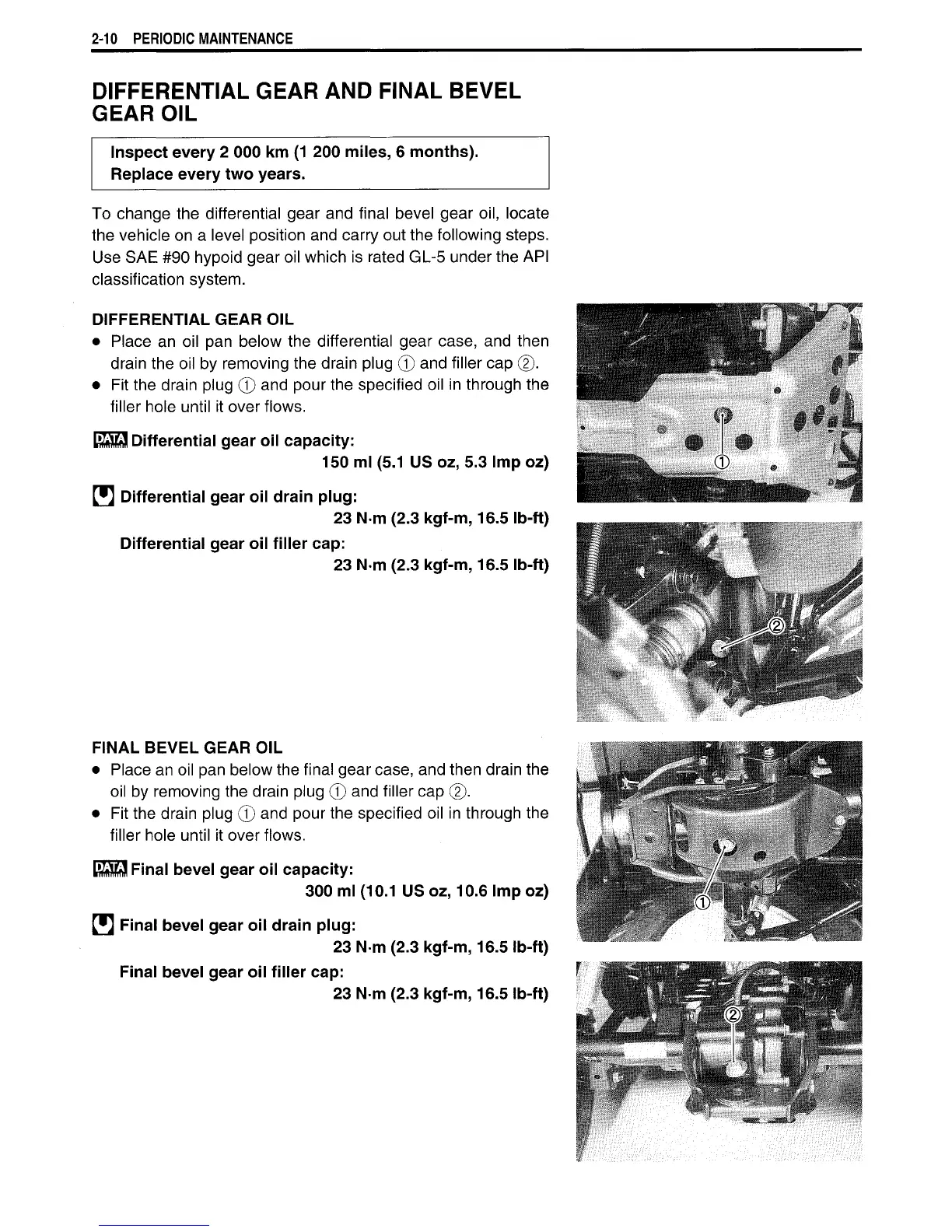

2-10 PERIODIC MAINTENANCE
DIFFERENTIAL GEAR AND FINAL BEVEL
GEAR OIL
Inspect every 2 000 km (1 200 miles, 6 months).
Replace every two years.
To change the differential gear and final bevel gear oil, locate
the vehicle on a level position and carry out the following steps.
Use SAE #90 hypoid gear oil which is rated GL-5 under the API
classification system.
DIFFERENTIAL GEAR OIL
• Place an oil pan below the differential gear case, and then
drain the oil by removing the drain plug © and filler cap ®.
• Fit the drain plug © and pour the specified oil in through the
filler hole until it over flows.
ErtSSS Differential gear oil capacity:
150 ml (5.1 US oz, 5.3 Imp oz)
[5 Differential gear oil drain plug:
23 N m (2.3 kgf-m, 16.5 Ib-ft)
Differential gear oil filler cap:
23 N m (2.3 kgf-m, 16.5 Ib-ft)
FINAL BEVEL GEAR OIL
• Place an oil pan below the final gear case, and then drain the
oil by removing the drain plug © and filler cap ©.
• Fit the drain plug © and pour the specified oil in through the
filler hole until it over flows.
IKfMrS Final bevel gear oil capacity:
300 ml (10.1 US oz, 10.6 Imp oz)
H Final bevel gear oil drain plug:
23 N m (2.3 kgf-m, 16.5 Ib-ft)
Final bevel gear oil filler cap:
23 N m (2.3 kgf-m, 16.5 Ib-ft)
