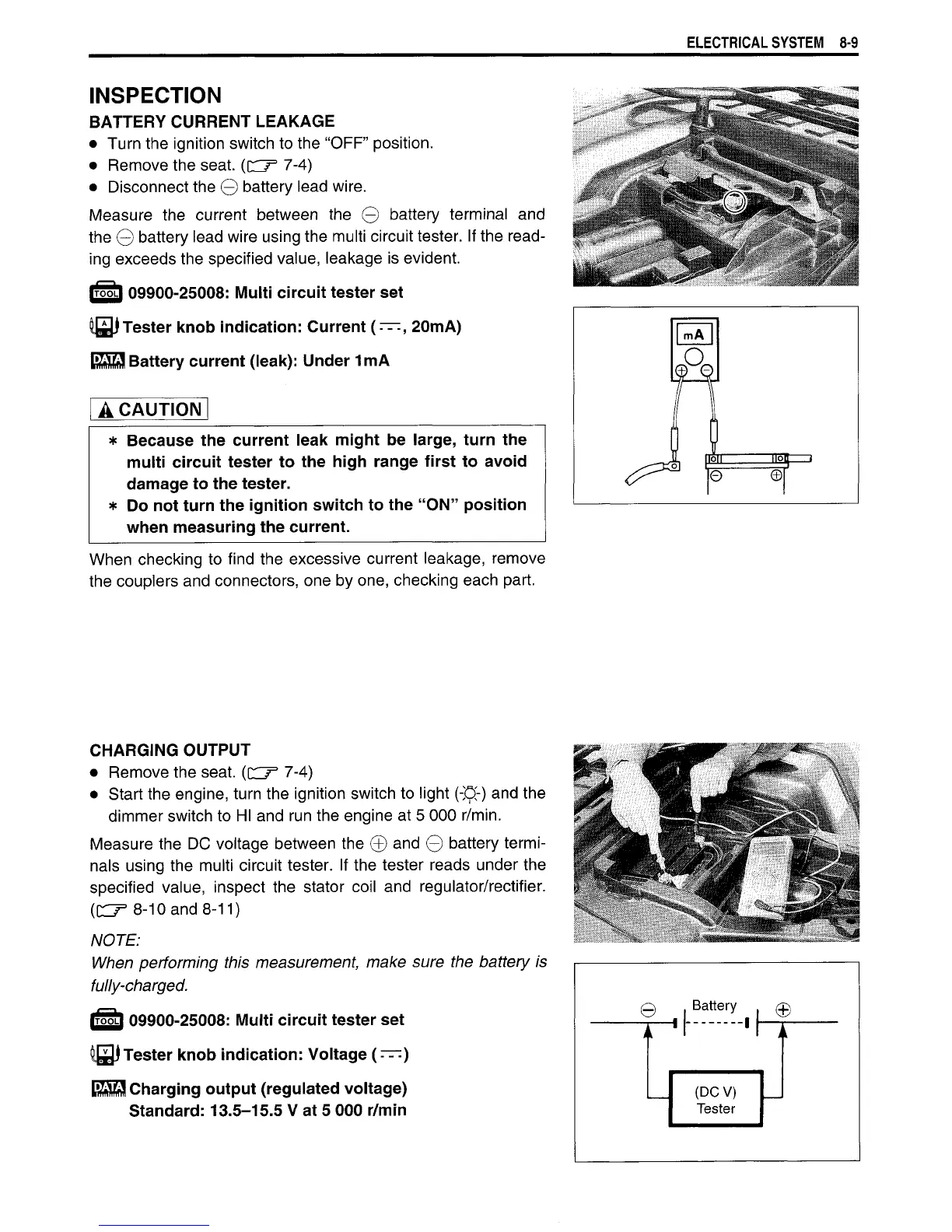

INSPECTION
BATTERY CURRENT LEAKAGE
• Turn the ignition switch to the "OFF" position.
• Remove the seat, (dr
3
7-4)
• Disconnect the © battery lead wire.
Measure the current between the © battery terminal and
the © battery lead wire using the multi circuit tester. If the read-
ing exceeds the specified value, leakage is evident.
09900-25008: Multi circuit tester set
IQjTester knob indication: Current ( — , 20mA)
ESSS Battery current (leak): Under 1mA
A CAUTION
* Because the current leak might be large, turn the
multi circuit tester to the high range first to avoid
damage to the tester.
* Do not turn the ignition switch to the "ON" position
when measuring the current.
When checking to find the excessive current leakage, remove
the couplers and connectors, one by one, checking each part.
CHARGING OUTPUT
• Remove the seat. (cOr* 7-4)
• Start the engine, turn the ignition switch to light (-£>'-) and the
dimmer switch to HI and run the engine at 5 000 r/min.
Measure the DC voltage between the © and © battery termi-
nals using the multi circuit tester. If the tester reads under the
specified value, inspect the stator coil and regulator/rectifier.
(ITT
3
8-10 and 8-11)
NOTE:
When performing this measurement, make sure the battery is
fully-charged.
09900-25008: Multi circuit tester set
Tester knob indication: Voltage (—)
LOW Charging output (regulated voltage)
Standard: 13.5-15.5 V at 5 000 r/min
