5-6
FUEL
AND LUBRICATION SYSTEM

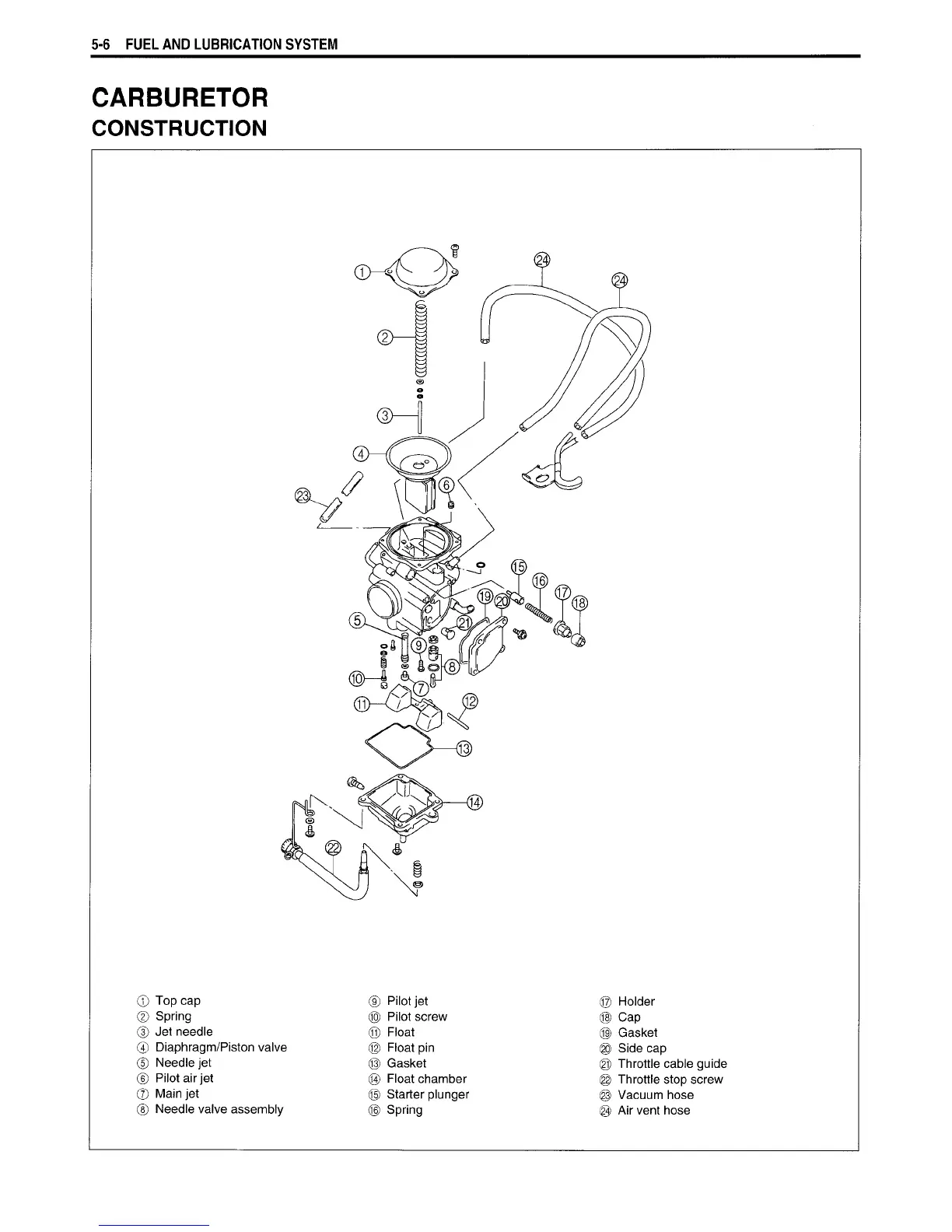

CARBURETOR
CONSTRUCTION
©
Top cap
©
Spring
©
Jet needle
@
Diaphragm/Piston valve
©
Needle jet
©
Pilot air jet
©
Main jet
©
Needle valve assembly
Pilot
jet
Pilot
screw
Float
Float
pin
Gasket
Float
chamber
Starter
plunger
Spring
Holder
Cap
Gasket
Side
cap
Throttle
cable guide
Throttle
stop screw
Vacuum hose
Air
vent hose
