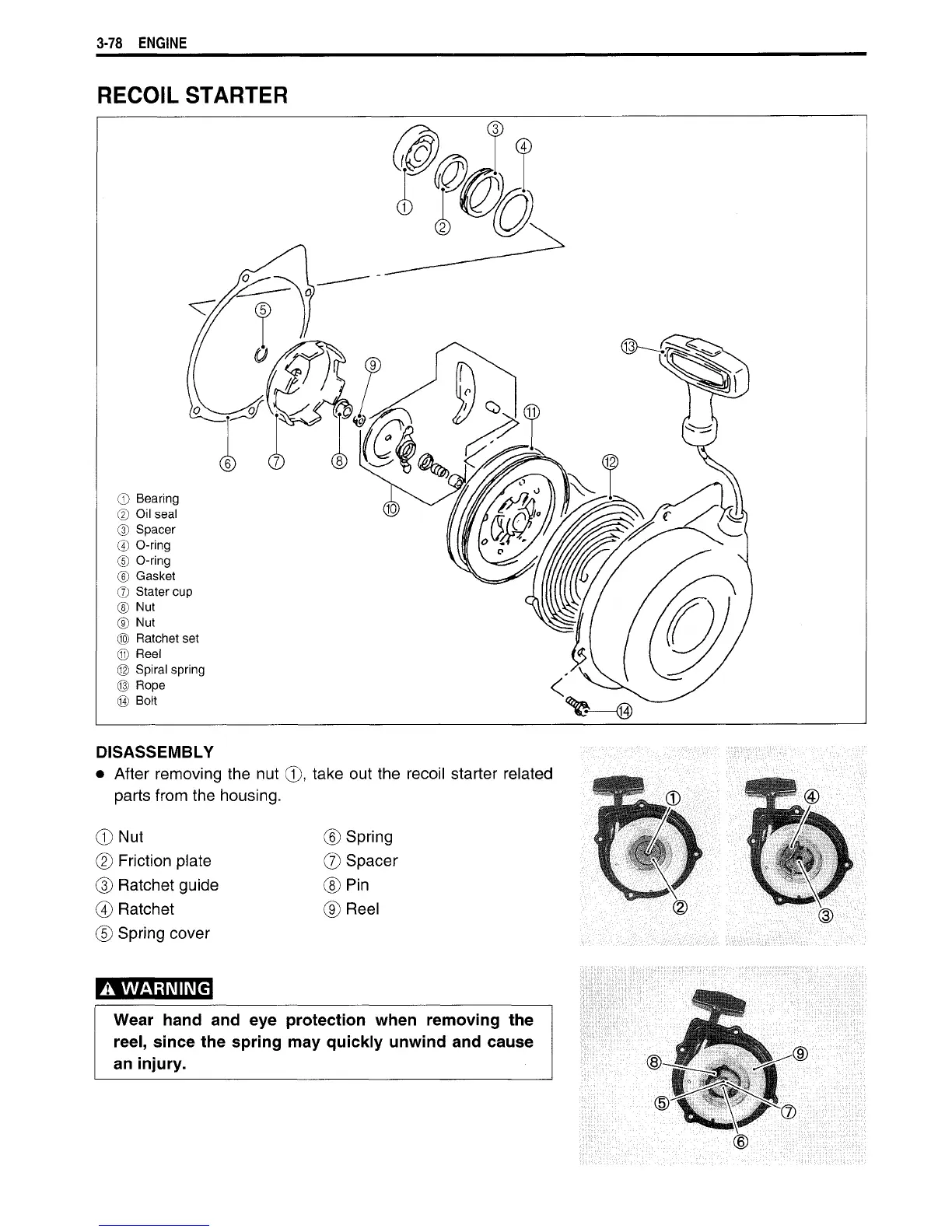

3-78 ENGINE
RECOIL
STARTER
©
Bearing
©
Oil
seal
©
Spacer
©
O-ring
©
O-ring
©
Gasket
©
Stater cup
© Nut
® Nut
®
Ratchet set
®
Reel
©
Spiral spring
©
Rope
(S)
Bolt
DISASSEMBLY
•
After removing
the nut
©,
take out the recoil
starter
related
parts
from the housing.
© Nut
©
Friction plate
©
Ratchet guide
©
Ratchet
©
Spring cover
©
Spring
©
Spacer
® Pin
(9) Reel
A
WARNING
Wear hand and eye protection when removing the
reel,
since
the spring may quickly unwind and
cause
an
injury.
