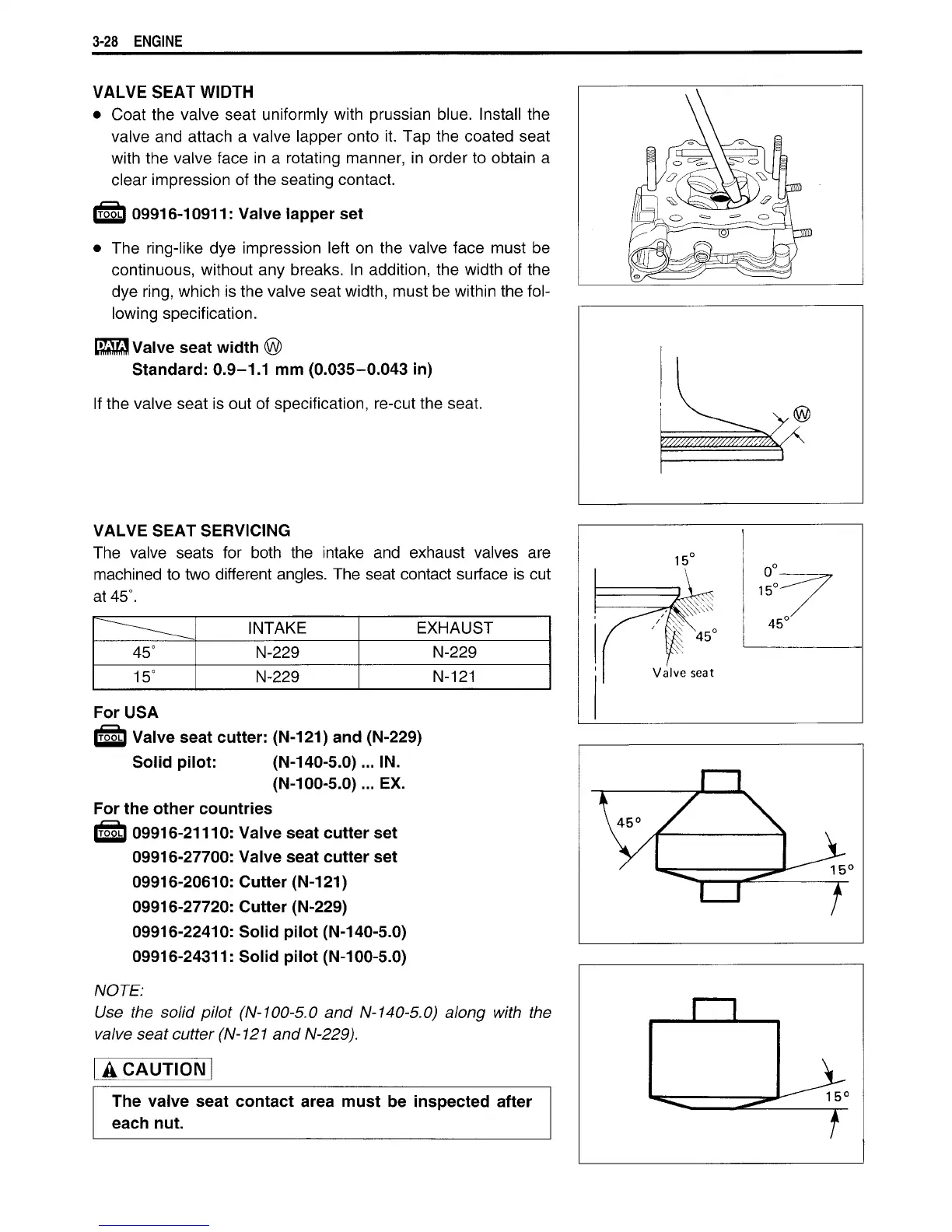

3-28
ENGINE
VALVE
SEAT
WIDTH
•
Coat
the valve seat uniformly
with
prussian blue. Install the
valve and attach
a
valve lapper onto it. Tap the coated seat
with
the valve face in
a
rotating
manner,
in order to obtain
a
clear
impression of the seating contact.
09916-10911: Valve lapper set
• The ring-like dye impression
left
on the valve face must
be
continuous, without any breaks. In addition, the width
of
the
dye ring, which is the valve seat
width,
must be within the
fol-
lowing
specification.
B
Valve
seat
width©
Standard:
0.9-1.1
mm (0.035-0.043 in)
If
the valve seat is out of
specification,
re-cut the seat.
VALVE
SEAT
SERVICING
The valve seats
for
both
the
intake
and
exhaust valves
are
machined to two different angles. The seat contact surface is cut
at
45°.
INTAKE
EXHAUST
45'
N-229 N-229
15°
N-229
N-121
For
USA
^2 Valve
seat
cutter: (N-121) and (N-229)
Solid
pilot: (N-140-5.0)... IN.
(N-100-5.0)... EX.
For
the other countries
09916-21110: Valve
seat
cutter set
09916-27700: Valve
seat
cutter set
09916-20610: Cutter (N-121)
09916-27720: Cutter (N-229)
09916-22410:
Solid
pilot (N-140-5.0)
09916-24311:
Solid
pilot (N-100-5.0)
NOTE:
Use
the
solid
pilot (N-100-5.0 and N-140-5.0) along with the
valve
seat
cutter (N-121 and N-229).
A
CAUTION
The
valve
seat
contact area must be inspected after
each
nut.
