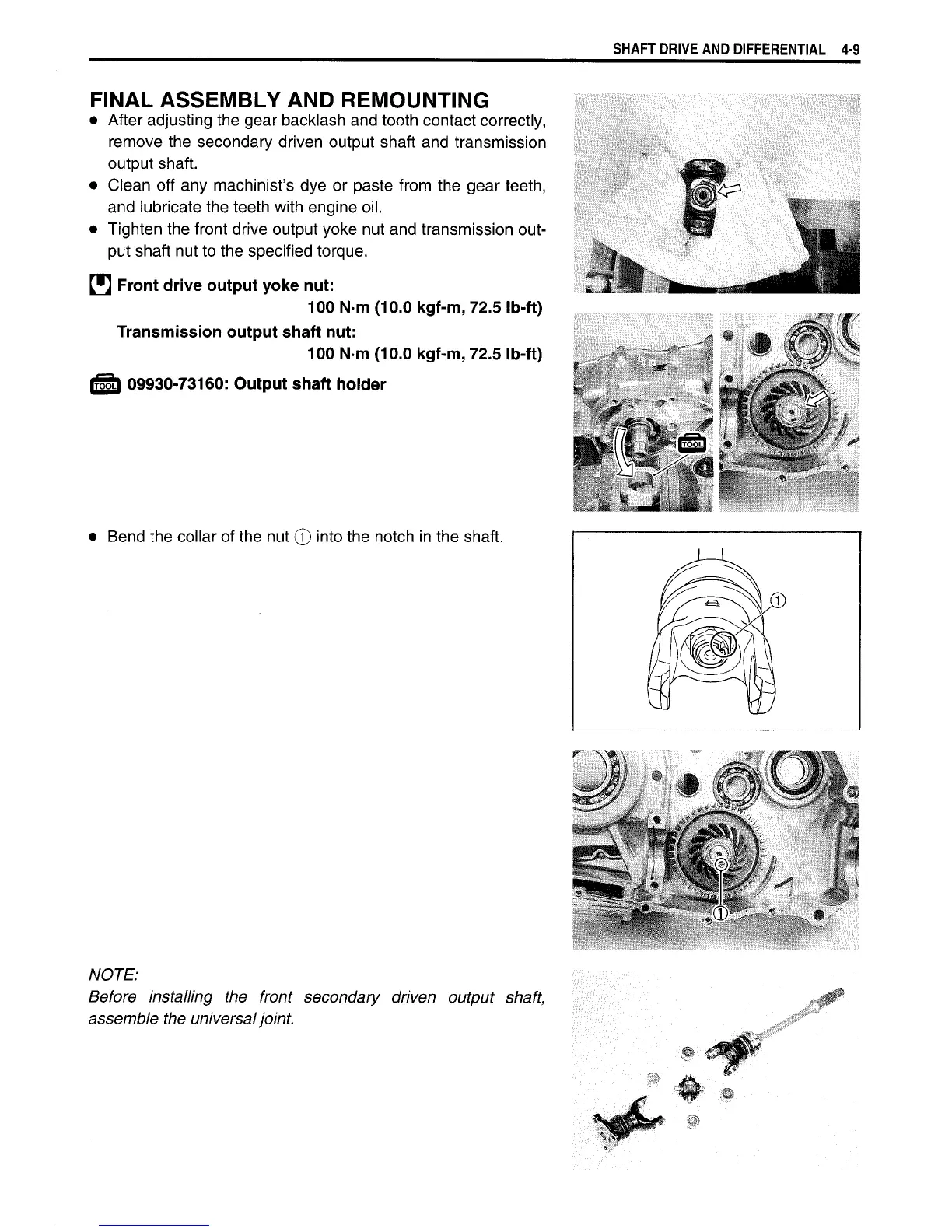

SHAFT DRIVE AND DIFFERENTIAL 4-9
FINAL ASSEMBLY AND REMOUNTING
• After adjusting the gear backlash and tooth contact correctly,
remove the secondary driven output shaft and transmission
output shaft.
• Clean off any machinist's dye or paste from the gear teeth,
and lubricate the teeth with engine oil.
• Tighten the front drive output yoke nut and transmission out-
put shaft nut to the specified torque.
H Front drive output yoke nut:
100 N m (10.0 kgf-m, 72.5 Ib-ft)
Transmission output shaft nut:
100 N m (10.0 kgf-m, 72.5 Ib-ft)
IT55L1 09930-73160: Output shaft holder
Bend the collar of the nut © into the notch in the shaft.
NOTE:
Before installing the front secondary driven output shaft,
assemble the universal joint.
