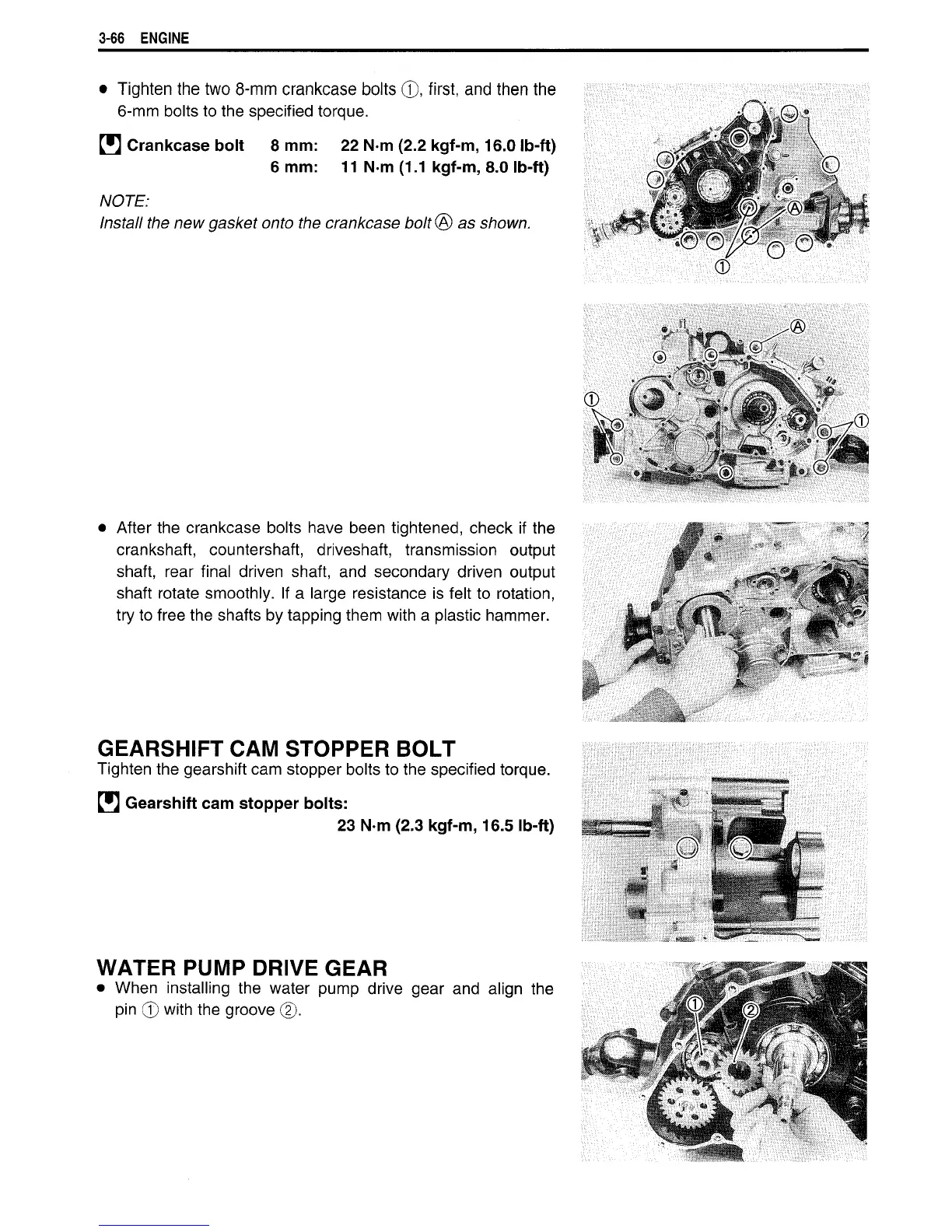

3-66
ENGINE
•
Tighten the two 8-mm crankcase bolts
©,
first,
and then the
6-mm bolts to the specified torque.
H
Crankcase
bolt
8
mm:
22 N m (2.2
kgf-m,
16.0 Ib-ft)
6 mm:
11 N m (1.1
kgf-m,
8.0 Ib-ft)
NOTE:
Install
the new
gasket onto
the
crankcase bolt®
as
shown.
®
•
After the crankcase bolts
have
been
tightened, check
if
the
crankshaft, countershaft, driveshaft, transmission output
shaft,
rear final driven shaft,
and
secondary
driven output
shaft rotate smoothly.
If
a
large resistance is
felt
to rotation,
try
to free the shafts by tapping them
with
a
plastic
hammer.
GEARSHIFT
CAM
STOPPER BOLT
Tighten the gearshift cam stopper bolts to the specified torque.
H
Gearshift cam stopper bolts:
23
N m (2.3
kgf-m,
16.5 Ib-ft)
WATER
PUMP
DRIVE GEAR
•
When
installing
the
water
pump
drive
gear
and
align
the
pin
©
with
the
groove
©.
To Next Page
