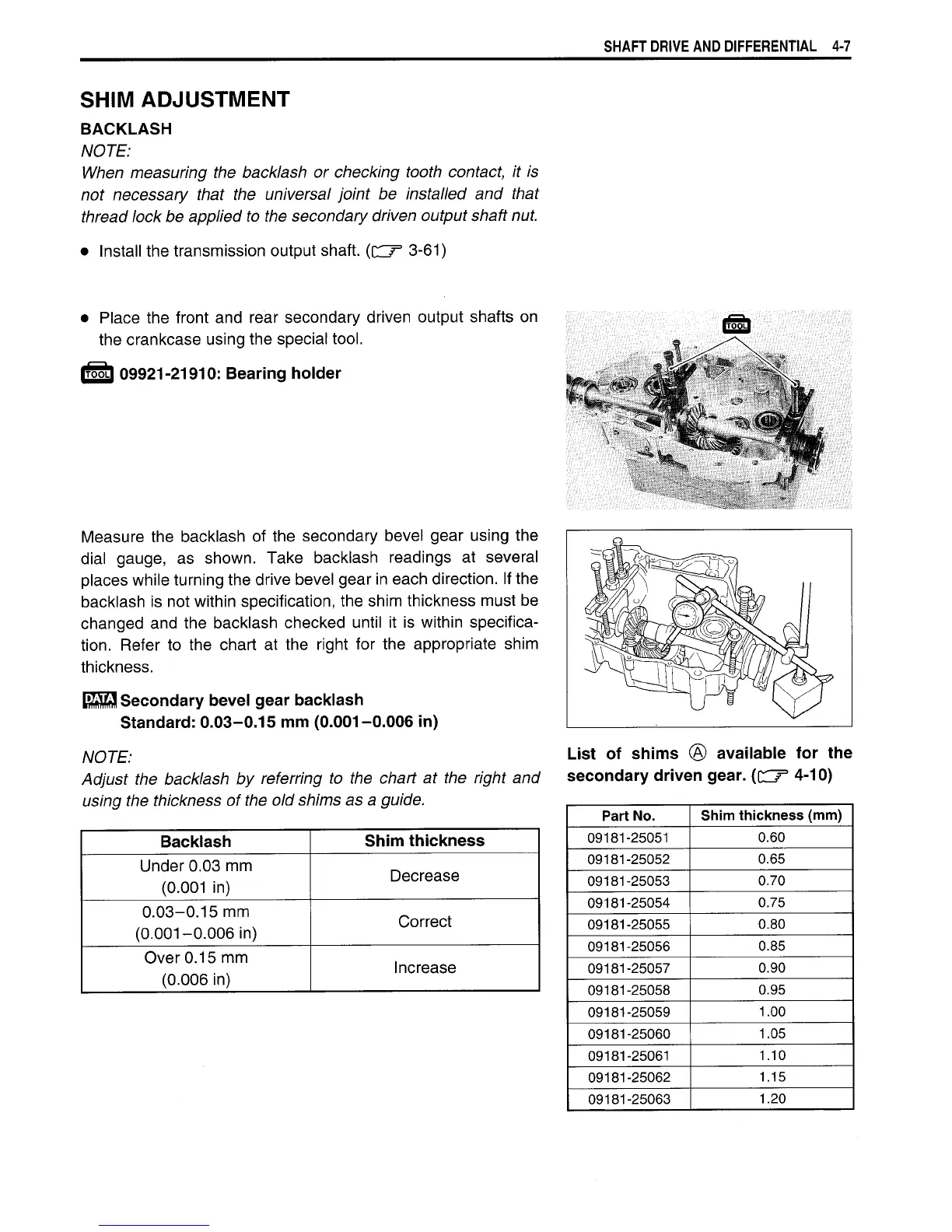

SHAFT
DRIVE AND DIFFERENTIAL 4-7
SHIM
ADJUSTMENT
BACKLASH
NOTE:
When measuring the backlash or checking tooth contact, it is
not necessary
that
the universal
joint
be installed and
that
thread lock be applied to the secondary driven
output
shaft nut.
•
Install
the
transmission
output shaft.
{[^T
3-61)
•
Place the front
and
rear secondary driven output shafts
on
the
crankcase using the special
tool.
fj^)
09921-21910:
Bearing holder
Measure
the backlash
of
the secondary bevel gear using
the
dial
gauge,
as
shown. Take backlash readings
at
several
places
while
turning
the drive bevel gear in each
direction.
If the
backlash
is
not
within
specification,
the shim thickness must
be
changed
and
the backlash checked
until
it is
within
specifica-
tion.
Refer
to the
chart
at the
right
for the
appropriate shim
thickness.
EHEKS
Secondary bevel gear backlash
Standard:
0.03-0.15
mm
(0.001-0.006
in)
NOTE:
Adjust the backlash by referring to the chart at the
right
and
using
the thickness of the old shims as a guide.
Backlash
Shim thickness
Under
0.03 mm
(0.001
in)
Decrease
0.03-0.15
mm
(0.001-0.006
in)
Correct
Over
0.15 mm
(0.006
in)
Increase
List
of shims ® available for the
secondary driven gear, (cir
3
4-10)
Part No.
Shim thickness (mm)
09181-25051
0.60
09181-25052
0.65
09181-25053
0.70
09181-25054
0.75
09181-25055
0.80
09181-25056
0.85
09181-25057
0.90
09181-25058
0.95
09181-25059
1.00
09181-25060
1.05
09181-25061
1.10
09181-25062
1.15
09181-25063
1.20
