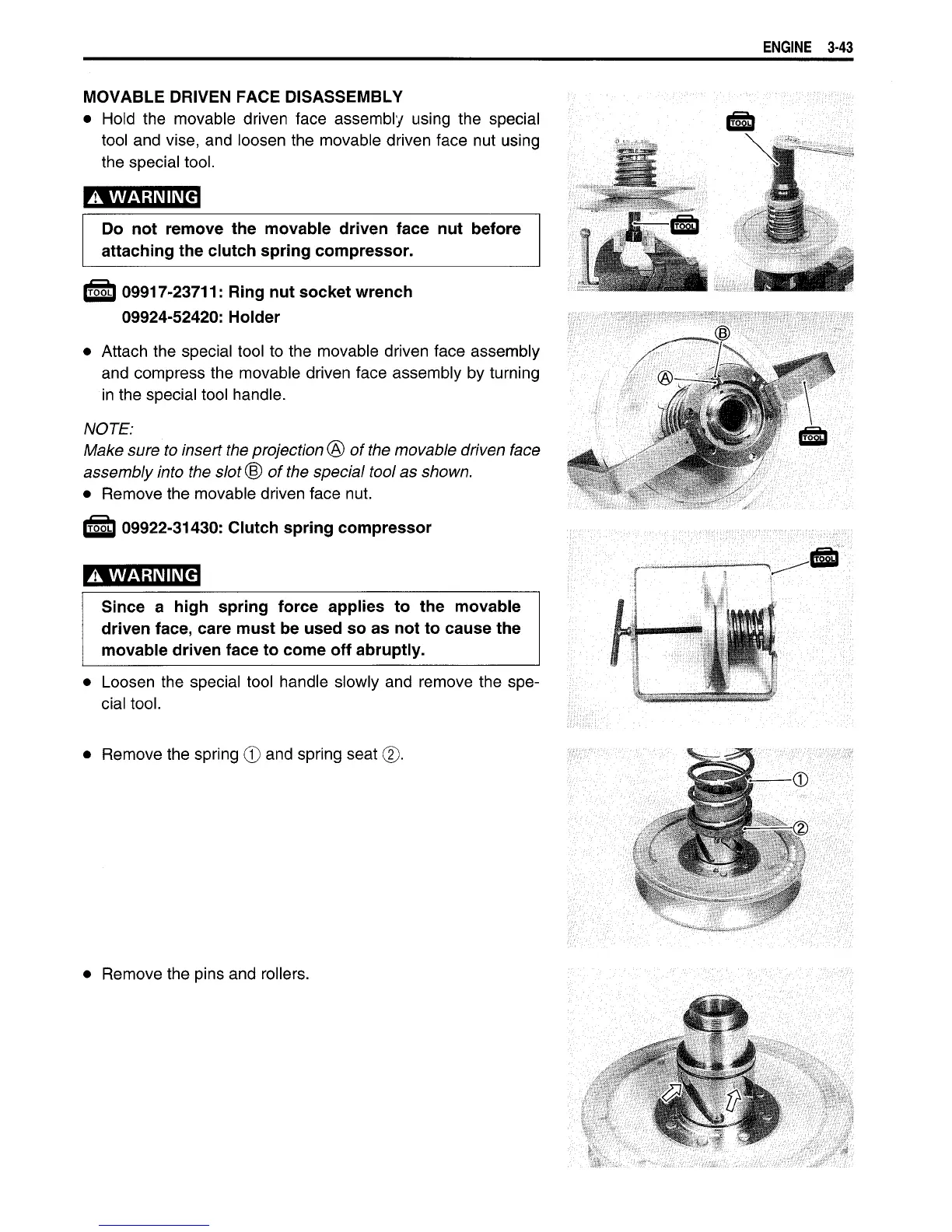

ENGINE 3-43
MOVABLE DRIVEN FACE DISASSEMBLY
• Hold the movable driven face assembly using the special
tool and vise, and loosen the movable driven face nut using
the special tool.
A WARNING
Do not remove the movable driven face nut before
attaching the clutch spring compressor.
Egg 09917-23711: Ring nut socket wrench
09924-52420: Holder
• Attach the special tool to the movable driven face assembly
and compress the movable driven face assembly by turning
in the special tool handle.
NOTE:
Make sure to insert the projection ® of the movable driven face
assembly into the slot® of the special tool as shown.
• Remove the movable driven face nut.
(r^J 09922-31430: Clutch spring compressor
A WARNING
Since a high spring force applies to the movable
driven face, care must be used so as not to cause the
movable driven face to come off abruptly.
• Loosen the special tool handle slowly and remove the spe-
cial tool.
• Remove the spring © and spring seat ©.
• Remove the pins and rollers.
