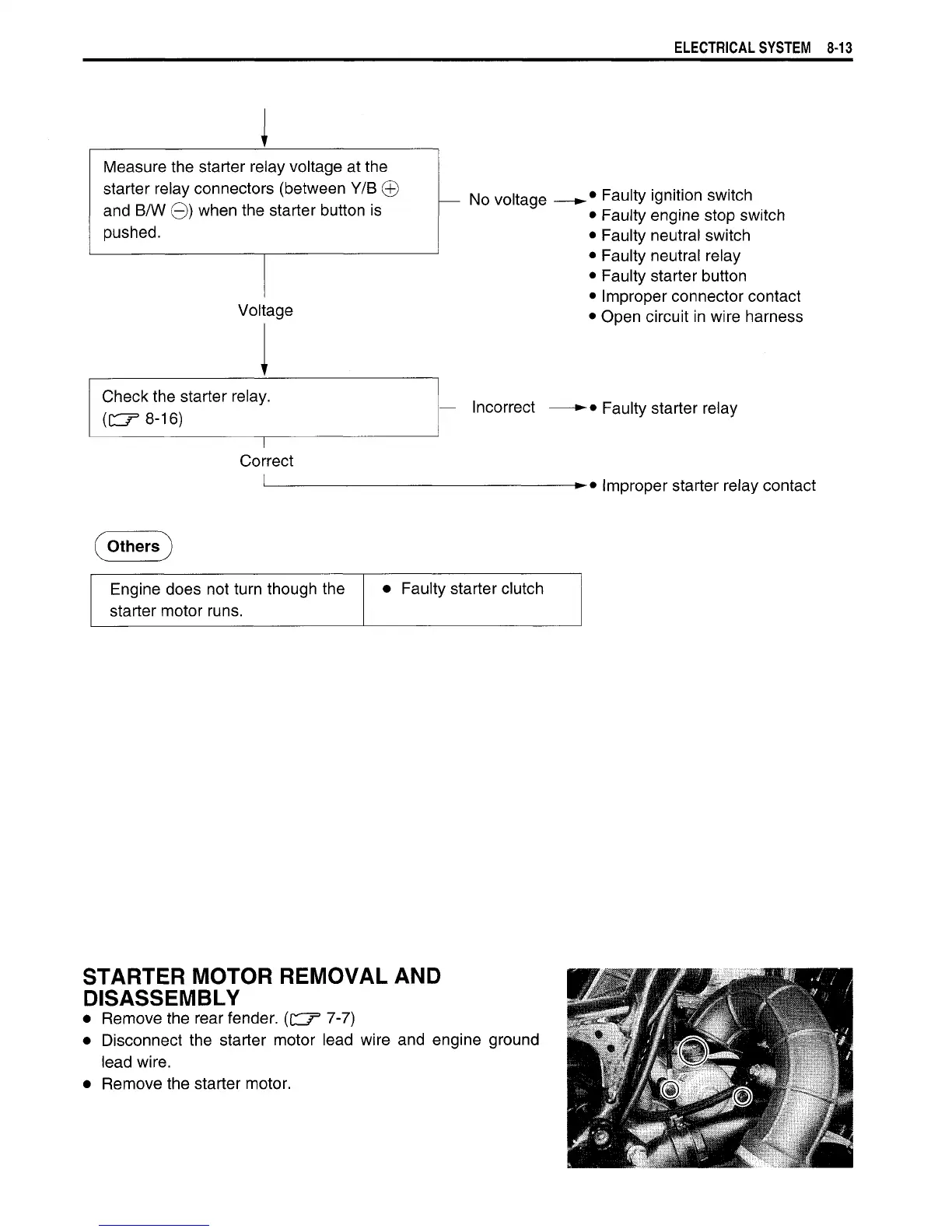

ELECTRICAL SYSTEM 8-13
Measure the starter relay voltage at the
starter relay connectors (between Y/B ©
and B/W ©) when the starter button is
pushed.
Voltage
No voltage ••
Fau|
ty ignition switch
• Faulty engine stop switch
• Faulty neutral switch
• Faulty neutral relay
• Faulty starter button
• Improper connector contact
• Open circuit in wire harness
Check the starter relay.
(C7
3
8-16)
I
Correct
Incorrect Faulty starter relay
Improper starter relay contact
Others
Engine does not turn though the
starter motor runs.
Faulty starter clutch
STARTER MOTOR REMOVAL AND
DISASSEMBLY
• Remove the rear fender, (dr
5
7-7)
• Disconnect the starter motor lead wire and engine ground
lead wire.
• Remove the starter motor.
