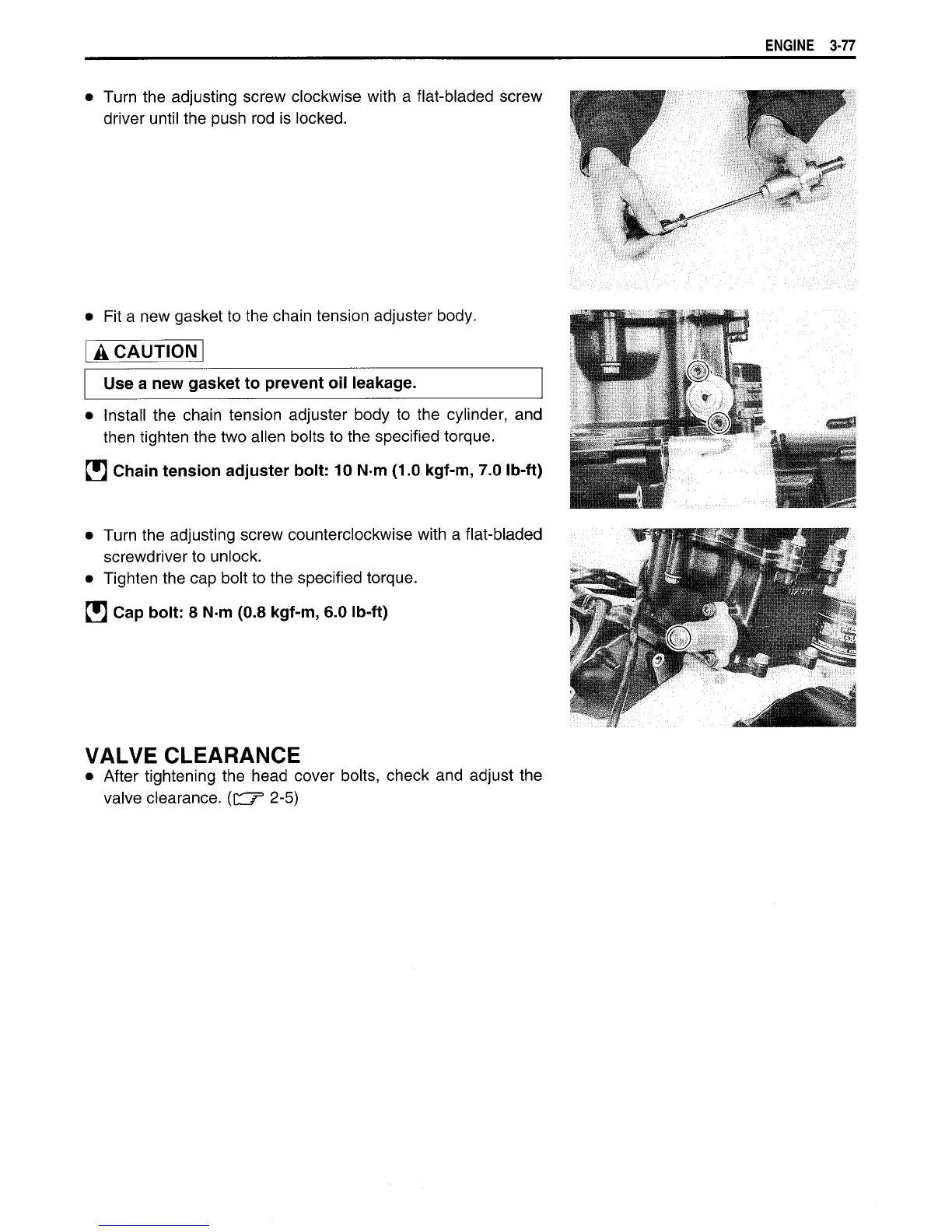

Turn
the adjusting screw clockwise
with
a
flat-bladed screw
driver
until
the
push
rod is locked.
•
Fit
a
new gasket to the chain tension adjuster
body.
A CAUTION^
Use
a new
gasket
to
prevent
oil
leakage.
•
Install
the
chain tension adjuster
body
to
the cylinder,
and
then tighten the two alien bolts to the specified torque.
H
Chain tension adjuster
bolt:
10 N m (1.0
kgf-m,
7.0 Ib-ft)
•
Turn
the adjusting screw counterclockwise
with
a
flat-bladed
screwdriver to unlock.
•
Tighten the cap bolt to the specified torque.
H
Cap
bolt:
8 N m (0.8
kgf-m,
6.0 Ib-ft)
VALVE CLEARANCE
•
After tightening the
head
cover bolts, check and adjust the
valve clearance.
(CIT
3
2-5)
