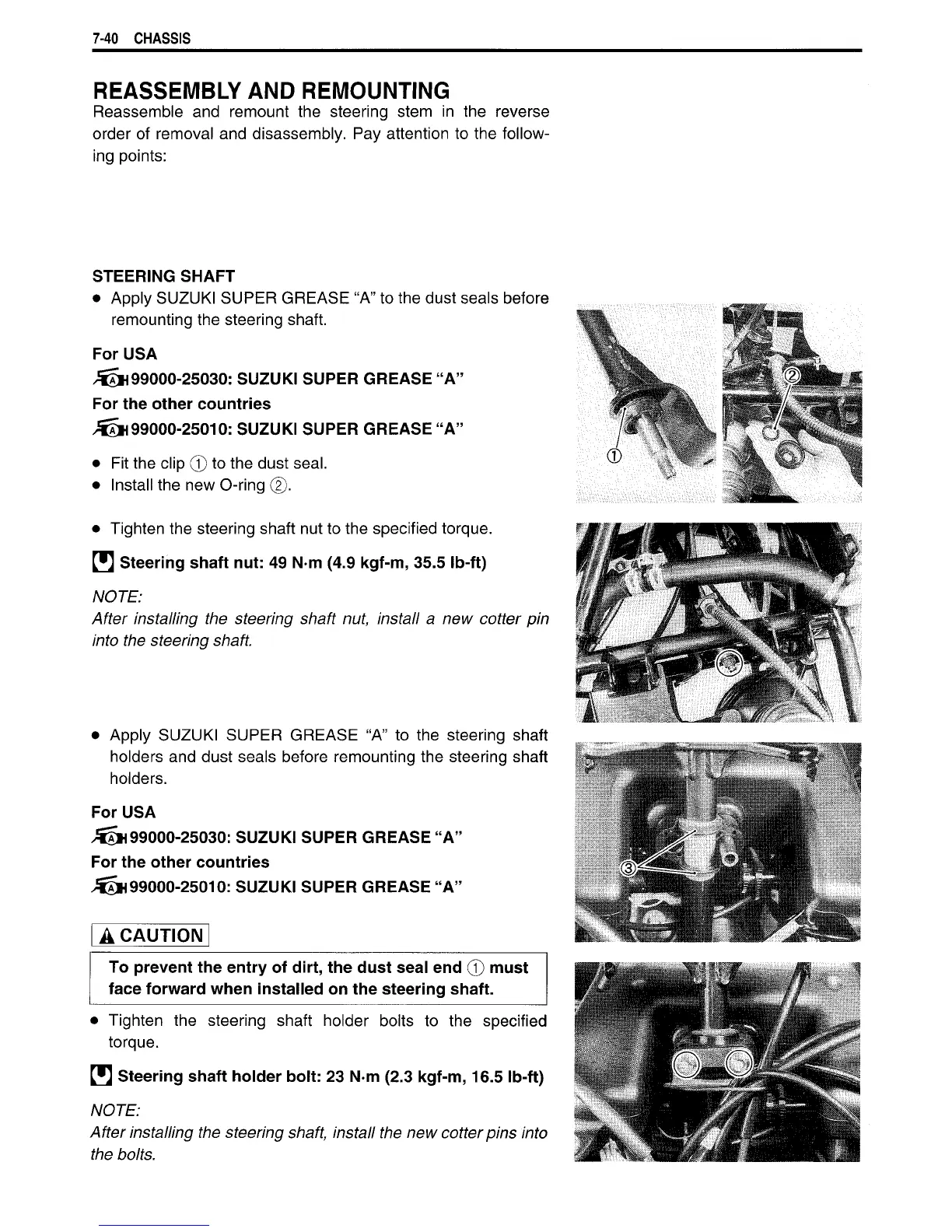

7-40 CHASSIS
REASSEMBLY
AND
REMOUNTING
Reassemble
and
remount
the
steering stem
in
the
reverse
order
of
removal and disassembly.
Pay
attention to the follow-
ing points:
STEERING
SHAFT
•
Apply
SUZUKI
SUPER
GREASE
"A" to the dust seals before
remounting the steering shaft.
For
USA
^199000-25030:
SUZUKI
SUPER
GREASE
"A"
For
the
other countries
^199000-25010:
SUZUKI
SUPER
GREASE
"A"
•
Fit the
clip
©
to the dust seal.
•
Install
the new
O-ring
©.
•
Tighten the steering shaft nut to the specified torque.
H
Steering shaft
nut: 49 N m (4.9
kgf-m,
35.5 Ib-ft)
NOTE:
After installing
the
steering shaft
nut,
install
a new
cotter
pin
into
the
steering shaft
•
Apply
SUZUKI
SUPER
GREASE
"A" to the
steering shaft
holders and dust seals before remounting the steering shaft
holders.
For
USA
/5§H99000-25030: SUZUKI
SUPER
GREASE
"A"
For
the
other countries
^199000-25010:
SUZUKI
SUPER
GREASE
"A"
A
CAUTION
To prevent
the
entry
of
dirt,
the
dust seal
end ©
must
face forward when installed
on the
steering shaft.
•
Tighten
the
steering shaft holder bolts
to the
specified
torque.
H
Steering shaft holder
bolt:
23 N m (2.3
kgf-m,
16.5 Ib-ft)
NOTE:
After installing
the
steering shaft, install
the new
cotter pins
into
the bolts.
