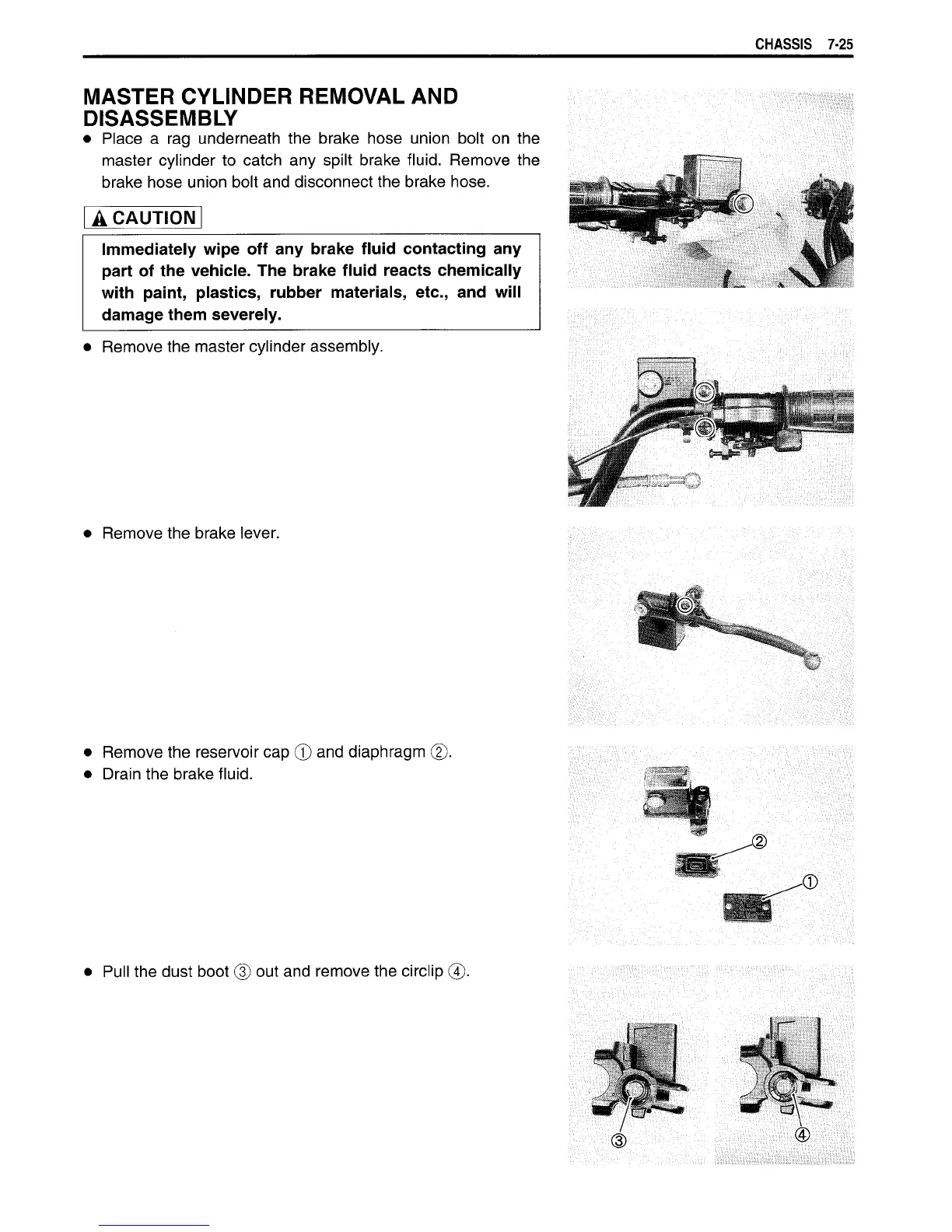

MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Place a rag underneath the brake hose union bolt on the
master cylinder to catch any spilt brake fluid. Remove the
brake hose union bolt and disconnect the brake hose.
A CAUTIOINT
Immediately wipe off any brake fluid contacting any
part of the vehicle. The brake fluid reacts chemically
with paint, plastics, rubber materials, etc., and will
damage them severely.
• Remove the master cylinder assembly.
• Remove the brake lever.
• Remove the reservoir cap © and diaphragm ®.
• Drain the brake fluid.
• Pull the dust boot © out and remove the circlip 0.
