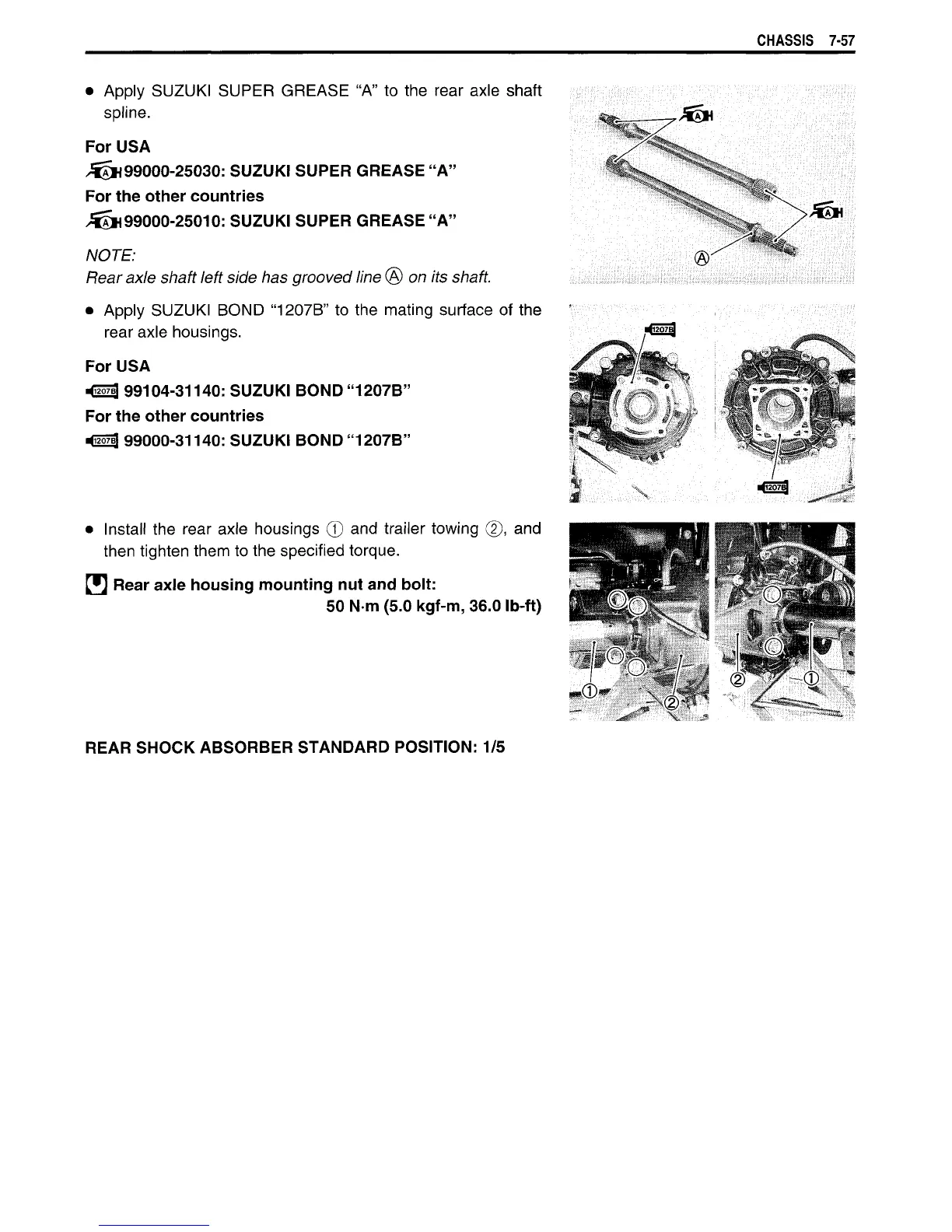

CHASSIS 7-57
• Apply SUZUKI SUPER GREASE "A" to the rear axle shaft
spline.
For USA
JSI* 99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
NOTE:
Rear axle shaft left side has grooved line ® on its shaft.
• Apply SUZUKI BOND "1207B" to the mating surface of the
rear axle housings.
For USA
^3 99104-31140: SUZUKI BOND"1207B"
For the other countries
msZH 99000-31140: SUZUKI BOND "1207B"
• Install the rear axle housings © and trailer towing @, and
then tighten them to the specified torque.
[5 Rear axle housing mounting nut and bolt:
50 N m (5.0 kgf-m, 36.0 Ib-ft)
REAR SHOCK ABSORBER STANDARD POSITION: 1/5
