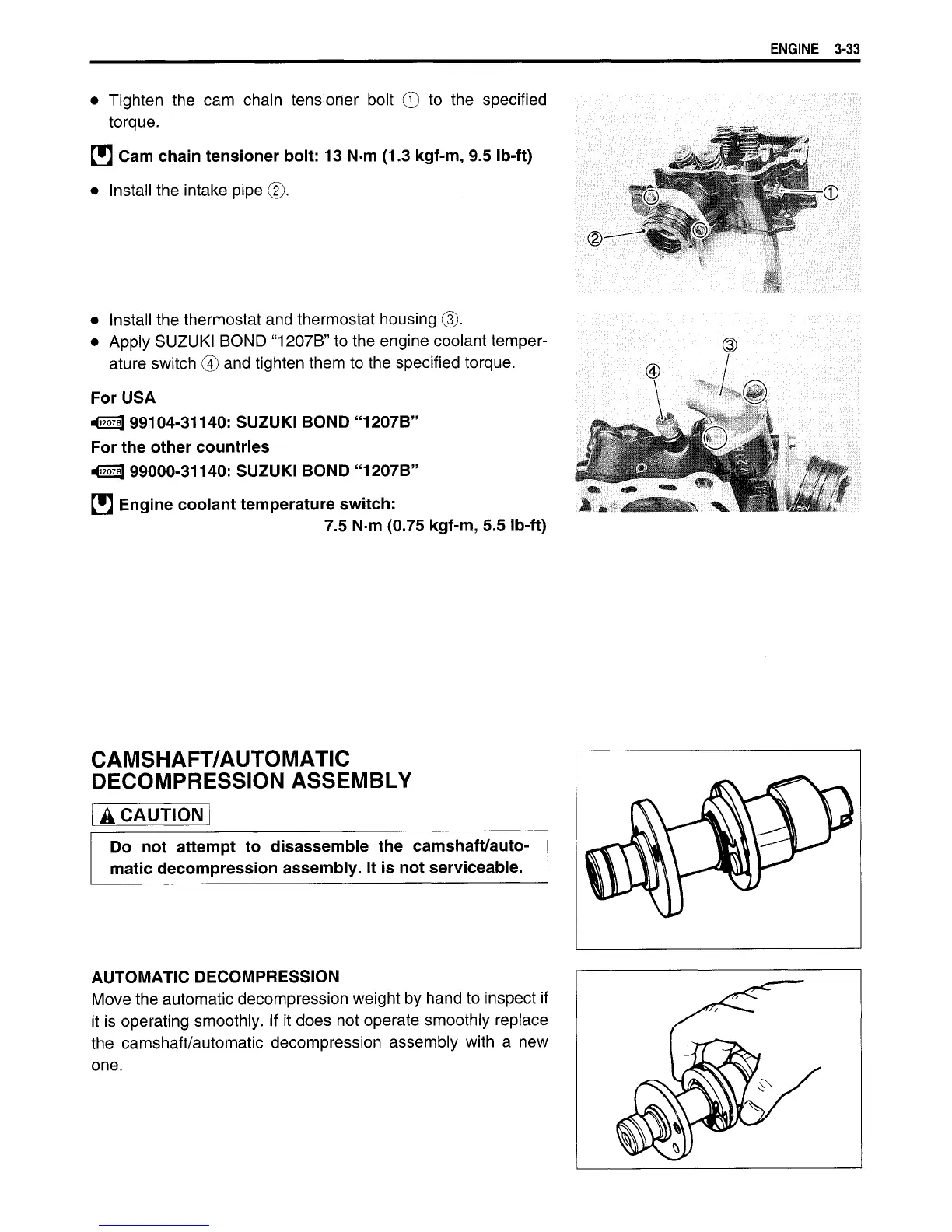

Tighten
the cam
chain tensioner bolt
© to
the
specified
torque.
U3
Cam chain tensioner
bolt:
13 N m (1.3
kgf-m,
9.5 Ib-ft)
•
Install the intake pipe
©.
•
Install the thermostat and thermostat housing
®.
•
Apply
SUZUKI
BOND
"1207B" to the engine coolant temper-
ature switch (4) and tighten them to the specified torque.
For
USA
HUsZi
99104-31140:
SUZUKI BOND "1207B"
For
the
other countries
^
99000-31140:
SUZUKI BOND "1207B"
[5
Engine coolant temperature switch:
7.5
N m (0.75
kgf-m,
5.5 Ib-ft)
CAMSHAFT/AUTOMATIC
DECOMPRESSION ASSEMBLY
A CAUTION^
Do
not
attempt
to
disassemble
the
camshaft/auto-
matic decompression assembly.
It is not
serviceable.
AUTOMATIC DECOMPRESSION
Move
the automatic decompression weight by hand to inspect if
it
is operating smoothly.
If
it does not operate smoothly replace
the
camshaft/automatic decompression assembly
with
a
new
one.
