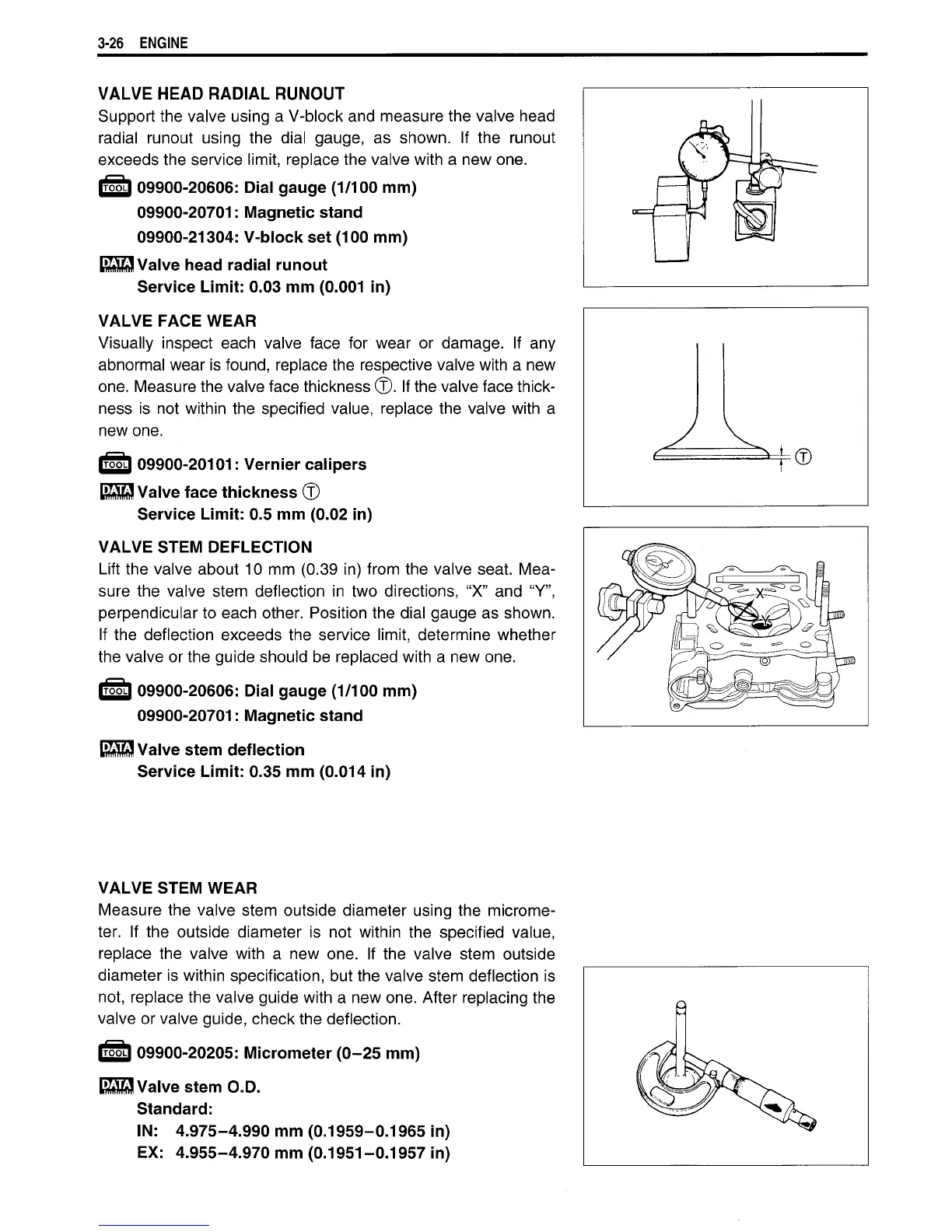

3-26
ENGINE
VALVE
HEAD RADIAL RUNOUT
Support the valve using
a
V-block and measure the valve
head
radial
runout using
the
dial gauge,
as
shown.
If
the runout
exceeds the service
limit,
replace the valve
with
a
new one.
(TSSL)
09900-20606:
Dial gauge
(1/100
mm)
09900-20701:
Magnetic stand
09900-21304: V-block set (100 mm)
LftffiJ
Valve head radial runout
Service
Limit: 0.03 mm
(0.001
in)
VALVE
FACE
WEAR
Visually inspect each valve face
for
wear
or
damage.
If
any
abnormal wear is found, replace the respective valve
with
a
new
one.
Measure
the valve face thickness
©.
If the valve face
thick-
ness
is
not
within
the specified value, replace the valve
with
a
new one.
IT55L1
09900-20101: Vernier
calipers
LfflW Valve face
thickness
©
Service
Limit: 0.5 mm
(0.02
in)
VALVE
STEM
DEFLECTION
Lift
the valve about
10
mm (0.39 in) from the valve seat.
Mea-
sure the valve stem deflection
in
two directions,
"X"
and
"Y",
perpendicular to each other. Position the dial
gauge
as shown.
If
the deflection exceeds the service
limit,
determine whether
the
valve or the guide should be replaced
with
a
new one.
IT55L1
09900-20606:
Dial gauge
(1/100
mm)
09900-20701:
Magnetic stand
Valve
stem deflection
Service
Limit: 0.35 mm (0.014 in)
VALVE
STEM
WEAR
Measure
the valve stem outside diameter using the microme-
ter.
If
the outside diameter
is
not
within
the specified value,
replace the valve
with
a
new one.
If
the valve stem outside
diameter is
within
specification,
but the valve stem deflection
is
not,
replace the valve guide
with
a
new one. After replacing the
valve or valve guide, check the deflection.
IT55LI
09900-20205:
Micrometer
(0-25
mm)
Valve
stem O.D.
Standard:
IN:
4.975-4.990
mm
(0.1959-0.1965
in)
EX: 4.955-4.970
mm
(0.1951
-0.1957
in)
