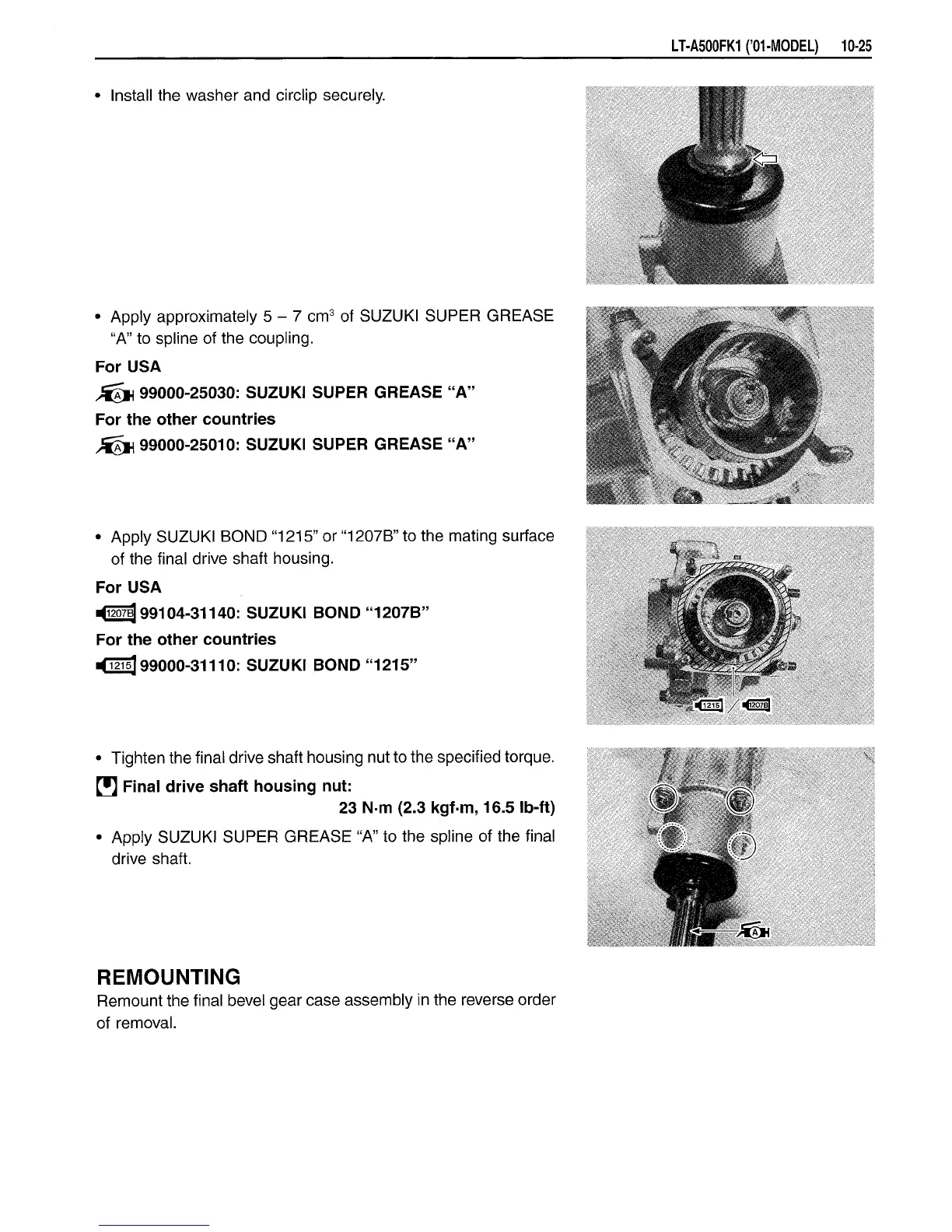

• Install the washer and circlip securely.
• Apply approximately 5 - 7 cm
3
of SUZUKI SUPER GREASE
"A" to spline of the coupling.
For USA
;SgH 99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
ffa 99000-25010: SUZUKI SUPER GREASE "A"
• Apply SUZUKI BOND "1215" or "1207B" to the mating surface
of the final drive shaft housing.
For USA
rf207B| 99104-31140: SUZUKI BOND "1207B"
For the other countries
rfias] 99000-31110: SUZUKI BOND "1215"
• Tighten the final drive shaft housing nut to the specified torque.
H Final drive shaft housing nut:
23 N-m (2.3 kgf-m, 16.5 Ib-ft)
• Apply SUZUKI SUPER GREASE "A" to the spline of the final
drive shaft.
REMOUNTING
Remount the final bevel gear case assembly in the reverse order
of removal.
