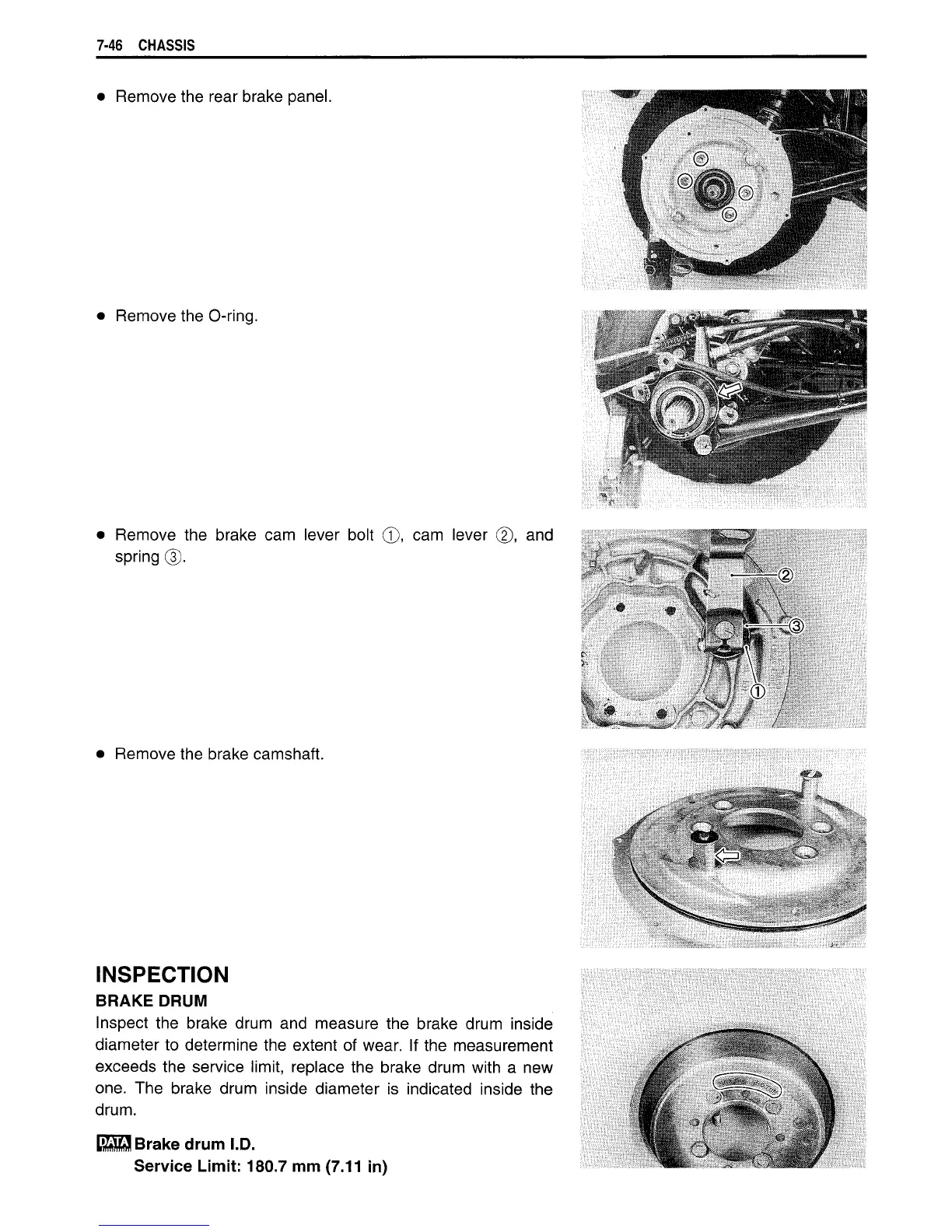

7-46 CHASSIS
• Remove the rear brake panel.
• Remove the O-ring.
ill!!!
•111
• Remove the brake cam lever bolt ©, cam lever ©, and
spring ®.
• Remove the brake camshaft.
INSPECTION
BRAKE DRUM
Inspect the brake drum and measure the brake drum inside
diameter to determine the extent of wear. If the measurement
exceeds the service limit, replace the brake drum with a new
one. The brake drum inside diameter is indicated inside the
drum.
Brake drum I.D.
Service Limit: 180.7 mm (7.11 in)
