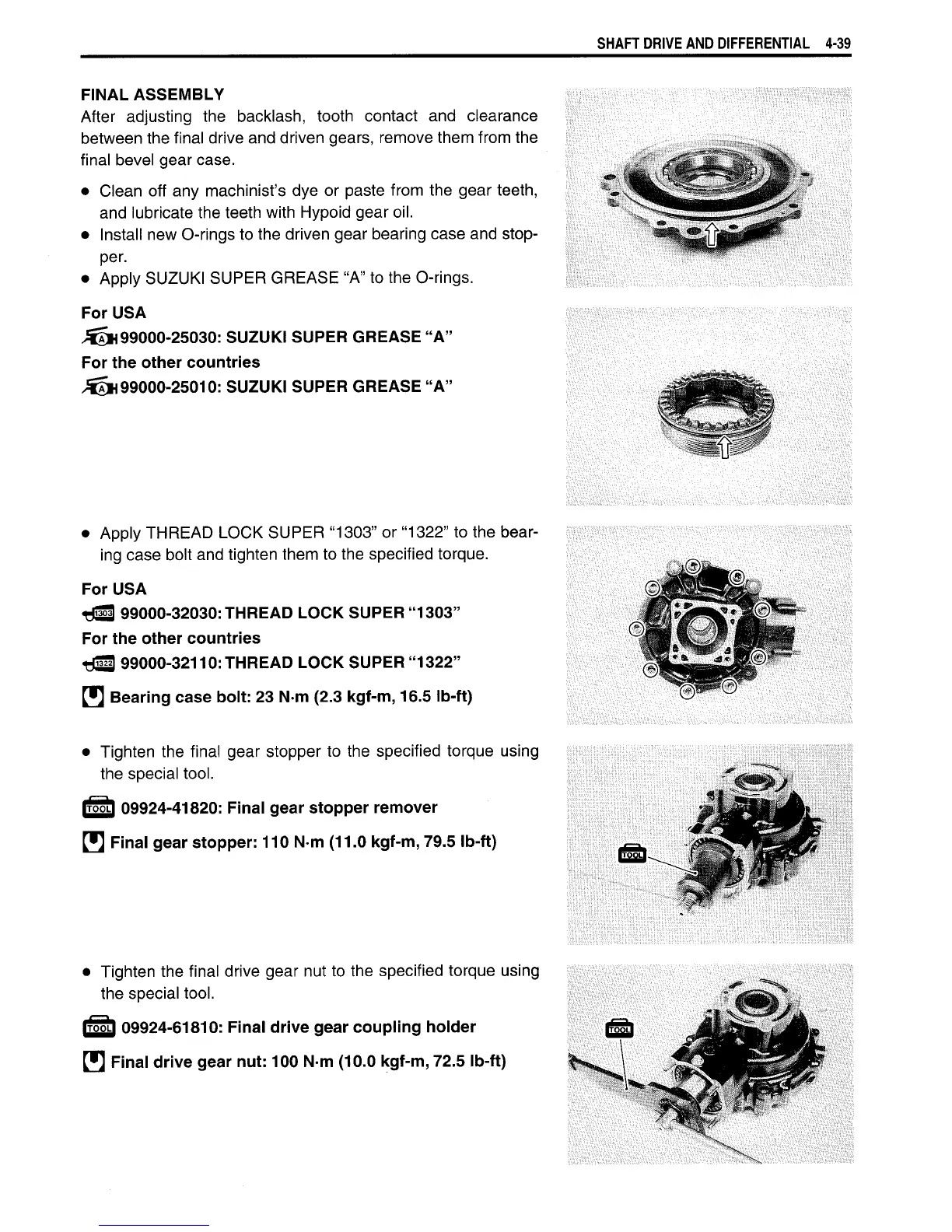

FINAL ASSEMBLY
After adjusting the backlash, tooth contact and clearance
between the final drive and driven gears, remove them from the
final bevel gear case.
• Clean off any machinist's dye or paste from the gear teeth,
and lubricate the teeth with Hypoid gear oil.
• Install new O-rings to the driven gear bearing case and stop-
per.
• Apply SUZUKI SUPER GREASE "A" to the O-rings.
For USA
/S§H99000-25030: SUZUKI SUPER GREASE "A"
For the other countries
99000-25010: SUZUKI SUPER GREASE "A"
• Apply THREAD LOCK SUPER "1303" or "1322" to the bear-
ing case bolt and tighten them to the specified torque.
For USA
tjSS 99000-32030: THREAD LOCK SUPER "1303"
For the other countries
433 99000-32110: THREAD LOCK SUPER "1322"
H Bearing case bolt: 23 N m (2.3 kgf-m, 16.5 Ib-ft)
• Tighten the final gear stopper to the specified torque using
the special tool.
^Sjj 09924-41820: Final gear stopper remover
(Jj Final gear stopper: 110 N m (11.0 kgf-m, 79.5 Ib-ft)
• Tighten the final drive gear nut to the specified torque using
the special tool.
09924-61810: Final drive gear coupling holder
H Final drive gear nut: 100 N m (10.0 kgf-m, 72.5 Ib-ft)
