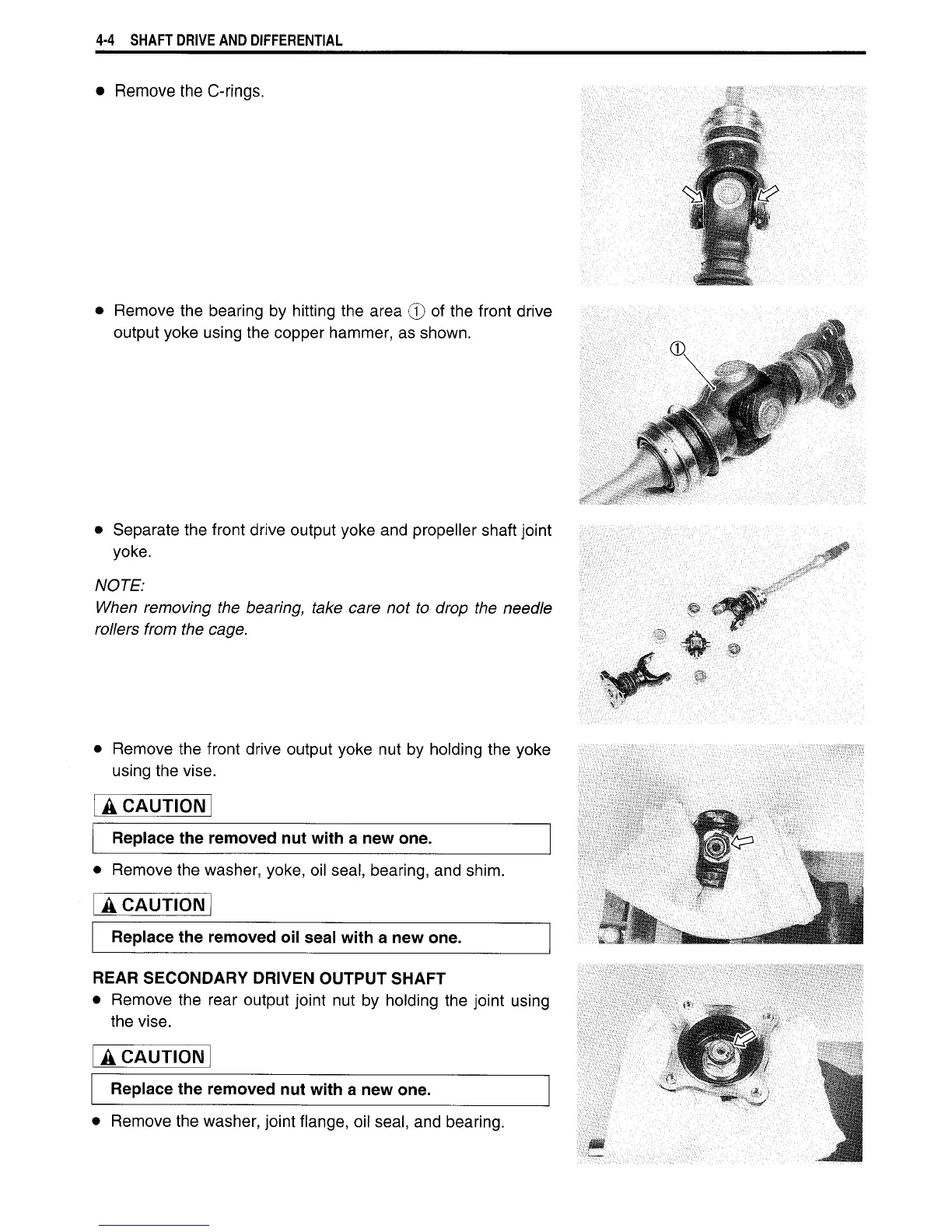

4-4 SHAFT DRIVE AND DIFFERENTIAL
• Remove the C-rings.
• Remove the bearing by hitting the area © of the front drive
output yoke using the copper hammer, as shown.
• Separate the front drive output yoke and propeller shaft joint
yoke.
NOTE:
When removing the bearing, take care not to drop the needle
rollers from the cage.
Remove the front drive output yoke nut by holding the yoke
using the vise.
A CAUTION
Replace the removed nut with a new one.
Remove the washer, yoke, oil seal, bearing, and shim.
A CAUTION
Replace the removed oil seal with a new one.
REAR SECONDARY DRIVEN OUTPUT SHAFT
• Remove the rear output joint nut by holding the joint using
the vise.
A CAUTION
Replace the removed nut with a new one.
• Remove the washer, joint flange, oil seal, and bearing.
